Product Recognition

Certification Number

ZC10-18076193

Name

Motion Switch LED

Short Description

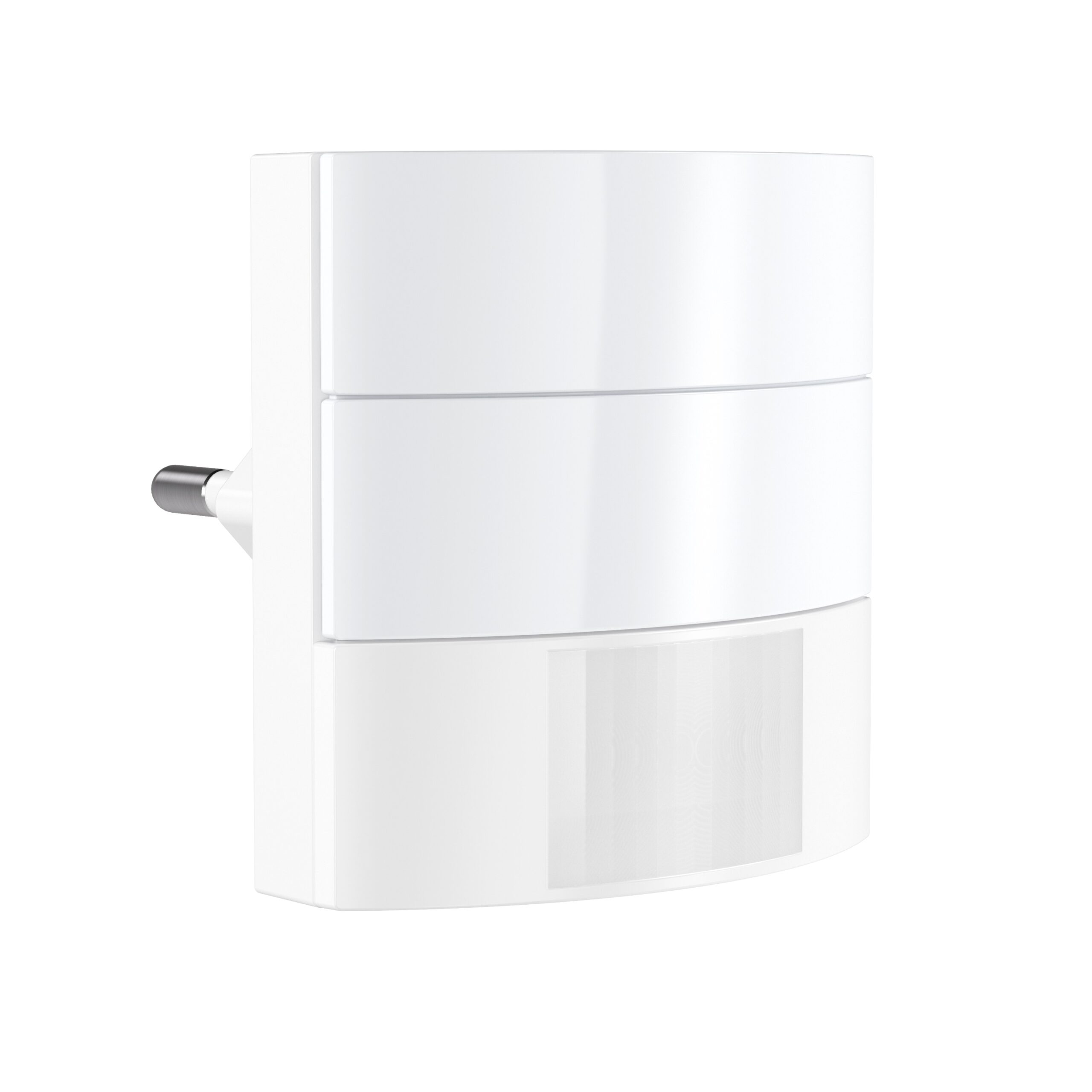

The MotionSwitch LED Z-Wave is a motion detector, brightness sensor, pushbutton and orientation light in one. Above all, it is easy to integrate and operate: plug it into the socket, install it via the Smart Friends app and control the interior lights, roller shutter motors, sound systems, alarm systems etc. easily and conveniently.

Long Description

Smart home from the socket. One product, four features, many possibilities: The MotionSwitch LED Z-Wave is a motion detector, brightness sensor, pushbutton and orientation light in one. No cable laying, no battery change - just plug it into the socket and off you go. The smart sensor can be quickly and easily integrated into Z-Wave based Smart Home systems like Smart Friends, making our everyday life smarter. For example, through automatic corridor lighting as soon as the 180 ° infrared sensor with a range of 20 m detects movement. Or by automatically darkening as soon as a certain degree of brightness is reached. Thanks to the integrated button, actuators, for example a radio, can be switched on manually. And the automatic orientation light ensures good visibility at night with 3000 K. Smart Home can be so easy!

Brand

Steinel GmbH

Product Identifier

40111665101

OEM Version

HW: 1 FW: 1.132:02.35

Hardware Platform

ZM5202

Z-Wave Version

6.71.03

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0271

Product Type ID

0x0002

Product ID

0x19FB

User Icon

0x0C07

Installer Icon

0x0C07

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Sensors, All Lighting Devices, On/Off Switches/Devices, Lighting Accessories

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Sensitivity

PIR sensitivity

100

From	To	Description
2	100	%

Light

Lux threshold for night mode detection

2000

From	To	Description
2	1999	Lux
2000	2000	is used as daylight (always night mode)
0	0	run Learn ambient light sequence

Brightness measuring interval

Interval for measuring ambient light when lamp is on (lamp switches off briefly and measures).

From	To	Description
0	0	function is off
5	120	minuts

Time

Duration of light after motion detection.

180

From	To	Description
5	900	seconds

Slave mode

Slave mode (bit0) means: LED is directly controlled via Z-Wave, internal sensors are not used for controlling it Central unit checking (bit 1): (useful especially for controlling via gateway) When slave bit is 0: - device signalises fail of lifeline connection (if this bit is zero, fail of lifeline connection is not signalised) When slave bit is 1: - device checks presence of Z-Wave device in lifeline group (gateway). If it is not present for 2 minutes (testing repeatedly every 30 seconds) device switches to normal mode in the same way as after the end of local disabled mode (ON_BEHAVIOUR) - the device checks every 1 minute for recovery of Lifeline connection. - if no lifeline specified - it works in normal mode

From	To	Description
4	4	LED is permanently on
0	0	Normal mode
1	1	Slave mode
2	2	Normal mode with checking lifeline
3	3	Slave mode with checking lifeline

Off behaviour

Behaviour after BASIC OFF (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case

From	To	Description
0	0	LED is switched off and remains so until any new motion event (local or remote) is received.
255	255	LED is switched off for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation.
1	209	LED is switched off and remains so until after a specified timeout once a new motion event (local or remote) is received. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution

On behaviour

Behaviour after BASIC ON (and similar commands). If a transition (even with zero change) with a non-default duration is to be processed, the transition cannot be interrupted by any motion event in any case.

255

From	To	Description
0	0	LED is switched on and remains so until any new motion event (local or remote) is received. It then works normally via current motion evaluation. Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.
255	255	LED is switched on for TIME (cfg 1). It does not wait for a motion event and works normally via current motion evaluation.
1	209	LED is switched on and remains so until after a specified timeout once a new motion event (local or remote) is received. It then works normally via current motion evaluation. Timeout: 1..100 – 1 second (1) to 100 seconds (100) in 1-second resolution 101..200 – 1 minute (101) to 100 minutes (200) in 1-minute resolution 201..209 – 1 hour (201) to 9 hours (209) in 1-hour resolution Notice – during the day, this mode cannot be ended remotely due to motion events not being transmitted – only via local motion sensor if enabled.

Global light

When GLOBAL_LIGHT mode is ON – device overrides its own light sensor values and uses Light report values from any Z-Wave light sensor instead – this has to be configured appropriately to send light automatically. If the last remote light level value is older than 30 minutes, the internal light value is used again until the next external value is received.

From	To	Description
0	1	binary off/on

Button behaviour

Bitfield descibing button functionability: Dim increase (bit 0): - long press of button does dim decreasing (0 = default) - long press of button does dim increasing (1) Scene switch (bit 1): - short press of button does toggle – on/off (0 = default) - short press of button does scene switch (1) Standalone behaviour (bit 2): - using “legacy” sensor deactivity after button press (0 = default) - using “cfg 10-14” sensor deactivity after button press (1) Network behaviour (bit 3): - using “legacy” sensor deactivity after button press (0) - using “cfg 10-14” sensor deactivity after button press (1 = default) Dim disable (bit 4): - dim events (long press) are used (0 = default) - dim events (long press) are ignored (1) “legacy” sensor deactivity behaviour does this: -Pressing push button when LED is OFF: LED will switch on as long as there is movement and the delay time runs of -Pressing push button when LED is ON: LED will switch off as long as there is movement ans the delay time runs of (invers logic). “cfg 10-14” sensor deactivity behaviour uses behaviour specified in parameters 10-14 (the same behaviour as pressing of external switch using BASIC ON/OFF functions)

From	To	Description
0	31	bit field

Texts

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
