Product Recognition | |
|---|
Certification Number | ZC10-18066133 |
|---|

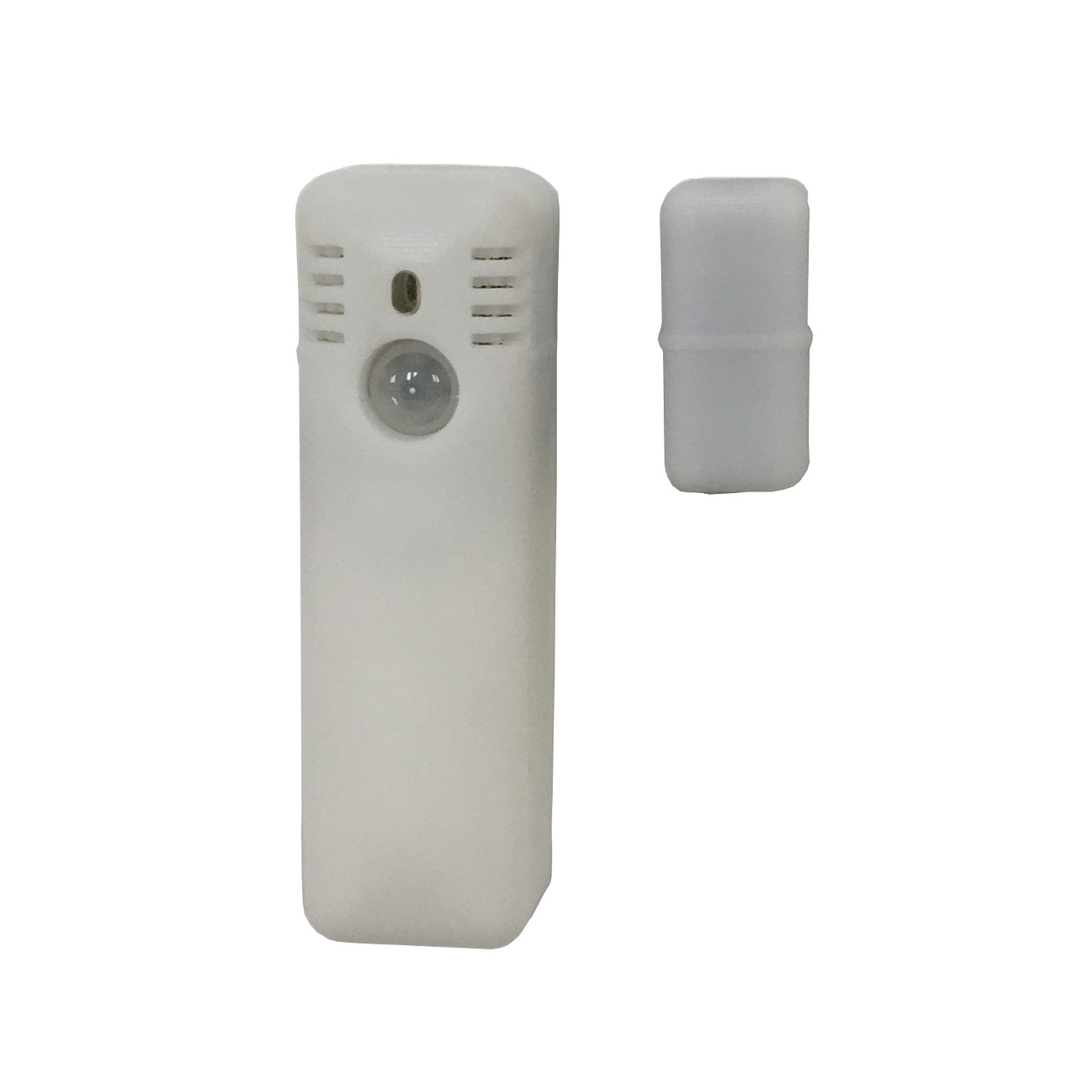

Name | Multi Sensor |
|---|
Short Description | The Multi Sensor can collect sensing data that temperature, humidity, Luminance, human motion, and door open/close by using a magnet. |
|---|
Long Description | The Multi Sensor is a product for IoT with several sensors and with functions of Z-Wave communication. It can collect sensing data that temperature, humidity, Luminance, human motion, and door open/close by using a magnet. And it sends the data to the gateway.
The Multi Sensor has the following general features:
- Z-Wave communication
- Sensing with the following
Temperature sensor,
Humidity sensor,
Luminance sensor,
Human detect sensor (motion sensor by pyroelectric infrared sensor),
Open/Close sensor (detecting the opening and shutting of the door by using a magnet),
Tamper switch. |
|---|
Brand | Sharp Corporation |
|---|
Product Identifier | DN3G6JA069 |
|---|
OEM Version | HW: 255 FW: 0.80 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x010B |
|---|
Product Type ID | 0x4761 |
|---|
Product ID | 0x0069 |
|---|
User Icon | 0x0CFF |
|---|
Installer Icon | 0x0CFF |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V7 | Sensor Multilevel V7 | 0x31 | 7 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Sensors | Value |
|---|
Motion/No Motion (Binary) | Air Temperature | Luminance | Humidity | Open/Closed (Binary) |
| Supported Notification Types | | Battery Type | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Enable switch of Alarm Notification report | Configure to send which the sensor values arbitralily. The sensor values can be selected from Human Detect and Open/Close. | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
2 | 2 | Human Detect enable, Open/Close disable | 3 | 3 | Human Detect enable, Open/Close enable | 0 | 0 | Human Detect disable, Open/Close disable | 1 | 1 | Human Detect disable, Open/Close enable |
| 3 | Select switch of Luminance Sensor scale | Configure the Luminance Sensor scale to either percentage value or Lux. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Percentage value | 1 | 1 | Lux |
| 4 | Set interval for Multilevel Sensor | Configure the sending interval time of the sensor value which is selected by configuration parameter number 1. "0" means especially synchronizing with Wake Up Interval. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | synchronizing with Wake Up Interval | 1 | 65535 | The setting unit is seconds. |
| 1 | Enable switch of Multilevel Sensor report | Configure arbitrarily to send which sensor values. The sensor values can be selected from Humidity, Luminance, and Temperature. | 0 | 1 | 0 | 0 | 7 | From | To | Description |
|---|
2 | 2 | Humidity disable, Luminance enable, Temperature disable | 1 | 1 | Humidity disable, Luminance disable, Temperature enable | 4 | 4 | Humidity enable, Luminance disable, Temperature disable | 5 | 5 | Humidity enable, Luminance disable, Temperature enable | 3 | 3 | Humidity disable, Luminance enable, Temperature enable | 7 | 7 | Humidity enable, Luminance enable, Temperature enable | 6 | 6 | Humidity enable, Luminance enable, Temperature disable | 0 | 0 | Humidity disable, Luminance disable, Temperature disable |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Set the controller to the status for “Remove”.
Press the button over 3 seconds and release.
LED blinks when “Remove” is completed. | 1 | Inclusion | Insert a CR123A, and LED blinks.
Set the controller to the status for “Add”.
Press the button over 3 seconds and release.
About 30 second later, LED turns off when “Add” is completed. | 5 | Factory Reset | Press the button over 10 seconds and release. | 4 | Device Wake-Up | Briefly press the button once. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose | Illuminance | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
