COMMAND_CLASS_SWITCH_MULTILEVEL

Switch Multilevel

0x26

1

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Sensor Multilevel V5

0x31

5

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_THERMOSTAT_MODE

Thermostat Mode

0x40

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_THERMOSTAT_SETPOINT

Thermostat Setpoint

0x43

1

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_METER_V2

Meter V2

0x32

2

COMMAND_CLASS_THERMOSTAT_MODE

Thermostat Mode

0x40

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_THERMOSTAT_SETPOINT

Thermostat Setpoint

0x43

1

Manual_Primary_Lang

Product or Owner's Manual

Color

Thermostat Power Source

Switch Type

Z-Wave Scene Type

Electric Load Type

Firmware Updatable

Supported Meter Type

Neutral Wire Required

Sensors

Thermostat Modes

Thermostat HVAC Systems Supported

2

5

0

Controls devices in Light Zone 1. Supports Multichannel Association Commands Issued: - Basic Set: Controlled by Light Zone 1. Dimmer or Switch mapped Basic command values is configurable

3

5

0

Controls devices in Light Zone 2. Supports Multichannel Association Commands Issued: - Basic Set: Controlled by Light Zone 1. Dimmer or Switch mapped Basic command values is configurable

5

5

0

Controls devices in Light Zone 4. Supports Multichannel Association Commands Issued: - Basic Set: Controlled by Light Zone 1. Dimmer or Switch mapped Basic command values is configurable

6

5

0

Enables control of external Heating Thermostats in the same heating zone. Commands Issued: - Thermostat Setpoint Set: Sent on local Thermostat Set-Point changes - Thermostat Mode Set: Sent on local Thermostat Mode changes

7

5

0

Enables the Thermostat to control Remote Heating Relays. Commands issued: - Basic Set: Value ON (255) or OFF (0), according to Thermostat Heating State changes.

4

5

0

Controls devices in Light Zone 3. Supports Multichannel Association Commands Issued: - Basic Set: Controlled by Light Zone 1. Dimmer or Switch mapped Basic command values is configurable

1

5

0

Z-Wave Plus Lifeline - Supports Multichannel Only local Light Zone changes are reported if Multichannel association is not used. Commands issued: - Basic Report: Reports Light Zone state and level changes - Central Scene Notification: Notifies activated Scenes - Sensor Multilevel Report: Power Consumption and Air Temperature (if a sensor is connected) - Meter: Reports energy consumption - Device Reset Locally - Reports device Factory Reset

5

Safety OFF Period

The number of seconds to stay in OFF mode when Safety is activated. The Back unit turns ON when the timer have elapsed. If value is 0, the Back Unit will not turn back ON. The MAX limit is 32767 seconds (9 hours, 6 minutes and 7 seconds). A 60 second minimum period applies.

0

2

0

0

600

17

Back Unit Role

Configures the Role of the Back Unit, which dictates what Local functionality controls it. Valid configuration values are: 0 - The Thermostat will control the Back Unit (if the back unit is a dimmer, then this value has no effect as Thermostats requires a relay to function) 1 - The Light Control feature (buttons) will control the Back Unit. 2 - Disconnected mode means the Back Unit is not controlled by any local UI or features, and can only be controlled via Z-Wave End-Point 5 (or non-channel encapsulated commands).

0

1

0

0

1

80

Button LED Mode

Controls the operation of the LEDs. Possible values are: 0 – LEDs are always OFF (default) 1 – Momentary ON 2 – Stable ON The LED operation is described in details in the User Manual, and also depends on the Button Mode configuration.

0

1

0

0

0

6

Safety ON Period

The number of seconds to stay in ON mode when Safety is activated. The Back Unit turns back OFF when the timer have elapsed (and continues to turn ON and OFF alternately). If value is 0, the Back Unit WILL NOT turn ON at all. The MAX limit is 32767 seconds (9 hours, 6 minutes and 7 seconds). A 60 second minimum period applies.

0

2

0

0

300

11

Dimmer Mode

Defines if Dimmer should operate in Leading or Tailing Edge mode. Most Lights work quite OK in the default Leading Edge mode, but this mode also usually cause some noise from the dimmer unit. During installation it is therefore recommended to try TE mode, and use this if the Light operates properly. Tailing Edge mode is known to cause instability in some type of Lights! This configuration does not have an effect on 1-10V Dimmer Back Units! 0 = Leading Edge Mode (LE) 1 = Tailing Edge Mode (TE)

0

1

0

0

0

64

Temperature Report Inteval

Defines the Periodic Report interval for temperature readings. This can be configured to a minimum of 60 seconds and maximum of (32767 seconds. A 0 value disables the Interval based Periodic reporting, and any value below 60 results in a 60 second interval.

0

2

0

0

600

66

Temperature Report Threshold

Defines a temperature change threshold where a temperature report is sent regardless of the Report Interval. This also works if the report interval is disabled. The value is given in 1/10 of a degree celsius, and can be in the range 1-127. A zero value disables the Threshold.

0

1

0

0

10

240

Floor Sensor Temperature Offset

Defines an offset to the Floor Temperature, given as a signed integer at 1/10 of a degree celcius. This provides an offset range of –12.8 to +12.7 degrees celcius (-128 to 127).

0

1

0

0

0

67

Thermostat On∕Off Interval Override Threshold

Defines a temperature threshold at which the configured On/Off interval is overridden and the Heating relay state will change regardless. The value is given in 1/10th of a degree, supporting a max threshold of 12.7 degrees celcius. A Zero (0) value disables this feature (the default)

0

1

0

0

0

241

Room Sensor Temperature Offset

Defines an offset to the Room Temperature, given as a signed integer at 1/10 of a degree celcius. This provides an offset range of –12.8 to +12.7 degrees celcius (-128 to 127).

0

1

0

0

0

4

Safety Activate Delay

Safety Mode is activated after the configured number of seconds has elapsed. It will start by turning OFF the Back Unit when activated. A 0 value Disables Safety Mode. The MAX limit is 32767 seconds (9 hours, 6 minutes and 7 seconds). The minimum Actication delay is 60 seconds, and values from 1 to 59 will automatically be translated to a 60 second delay.

0

2

0

0

0

5

Factory Reset

Push and Hold both Left buttons simultaneously for 15 seconds, until the Lower Left LED starts blinking. Push and Hold the Lower Right button to confirm Factory Reset. The procedure can be aborted at any time, and will also be aborted if any other button than the Lower Right is pushed after the initial 15 second push and hold. WARNING! Executing a Factory Reset will set all configuration to factory defaults, and remove the device from the Z-Wave network. As all configuration is reset, the device may stop operating as intended and may require a re-configuration. Please use this procedure only when the network primary controller is missing or otherwise inoperable.

6

Additional Special Features

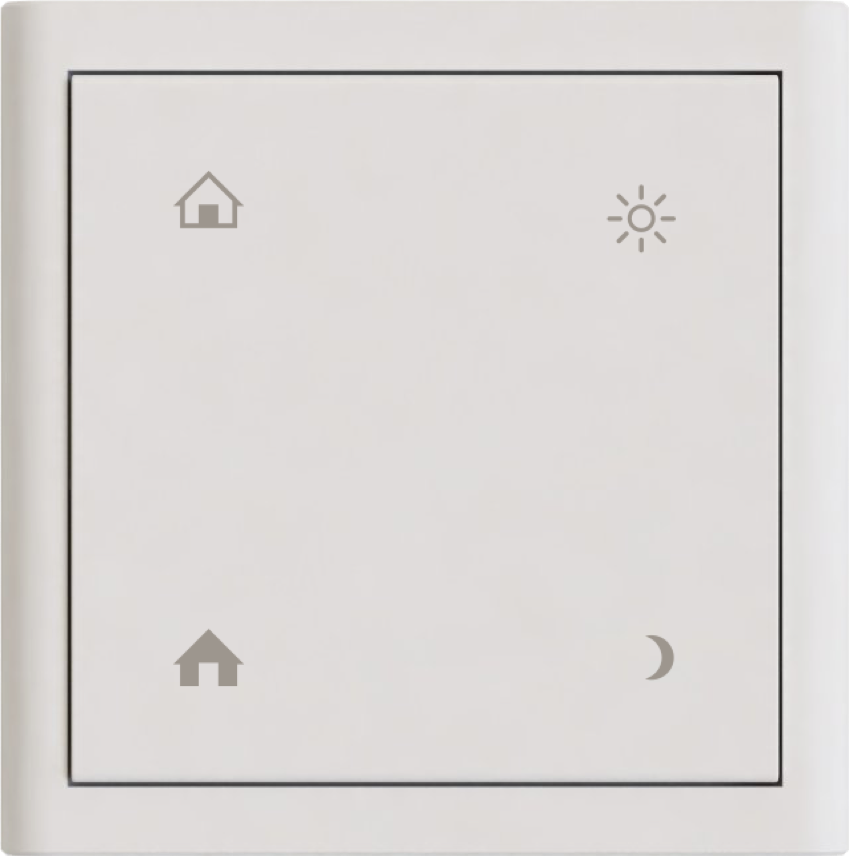

The Multifunction Switch is capable of controlling local loads via a modular Back Unit. The back unit can be mounted and connected to mains electricity inside a Electrical Wall box. Two types of Relay and Dimmer Back Units are currently available. The maximum controllable local load are specified in each Back Unit product sheets.

1

Inclusion

Push and Hold both Lower buttons simultaneously for 5 seconds. Inclusion is indicated by the LEDs flashing in a ""U"" shaped pattern.

2

Exclusion

Push and Hold both Lower buttons simultaneously for 5 seconds. Exclusion is indicated by the LEDs flashing in a ""U"" shaped pattern.

23

Controller Inclusion

Push and Hold both Lower buttons simultaneously for 5 seconds. Inclusion is indicated by the LEDs flashing in a ""U"" shaped pattern.

24

Controller Exclusion

Push and Hold both Lower buttons simultaneously for 5 seconds. Exclusion is indicated by the LEDs flashing in a ""U"" shaped pattern.

Electric meter

Import

Electric Meter Consumption
