Product Recognition
Certification Number	ZC10-16105265

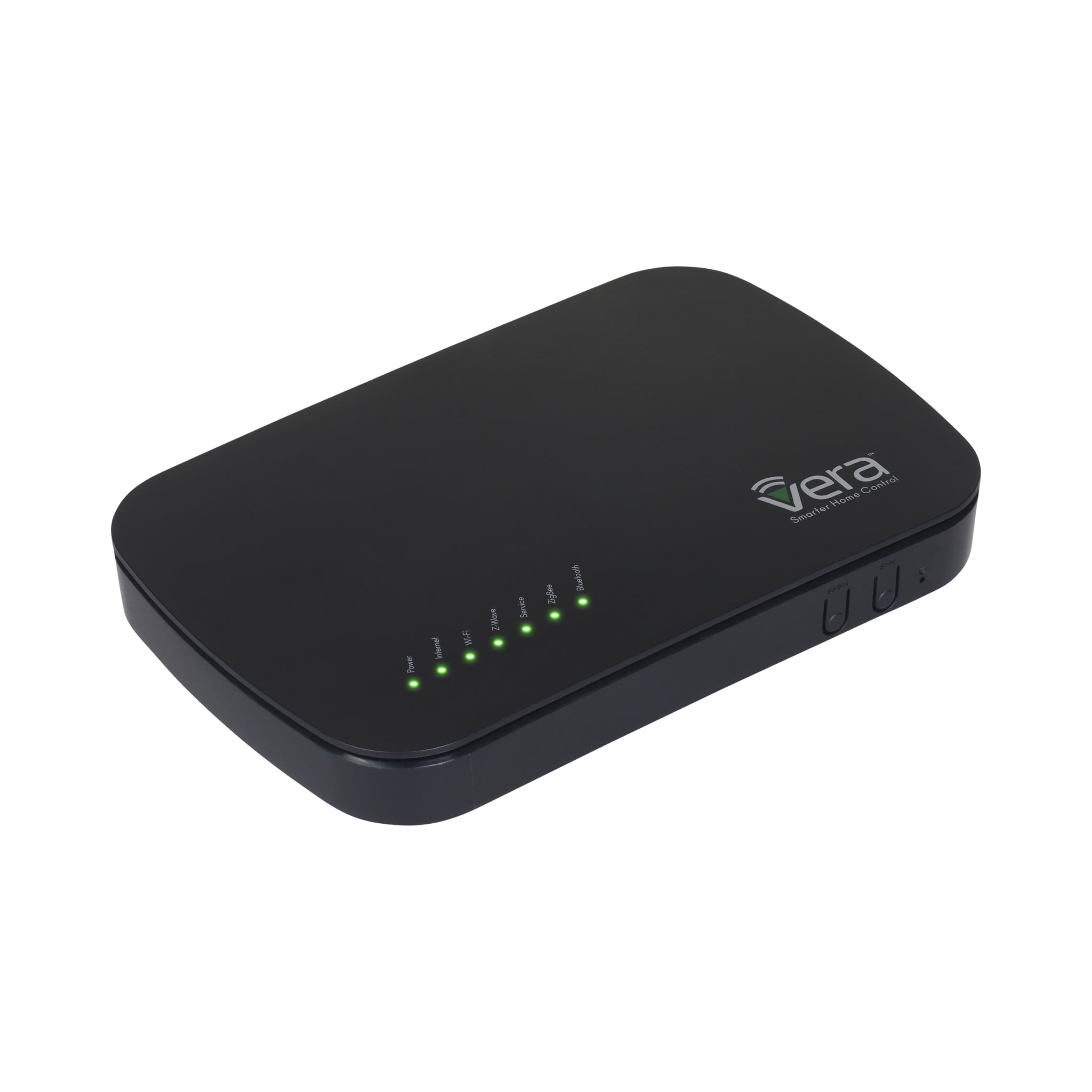

Name	Multiple RF Home Gateway
Short Description	VeraPlus Home Controller: A versatile, easy and powerful one-app home security and automation control center for cameras, door locks, sensors, thermostats and other devices using any of four widely used wireless protocols. Create custom scenes, timers, triggers, etc. Use smartphone, tablet or computer for setup and control (from anywhere). Provides home/small business security, energy savings and peace of mind.
Long Description	VeraPlus: Advanced Home Controller for Everything in Today's Smart Home Universe • One-touch control of your entire system • View all your cameras and control all your devices from one easy app • Works with 4 popular wireless device protocols for maximum compatibility with most brands (Z-Wave, ZigBee, Bluetooth and Wi-Fi) • See and control your system from any smartphone or tablet from anywhere in the world (where there's Internet) • Save money on energy, automatically! • Expand your system to control over 220 devices • Wireless communications makes installation a breeze in any home or small business • Easy, intuitive setup with simple Q&A format; adding devices later is easy too with preconfigured settings for most devices • No monthly fees required! • Cutting edge features like geo fencing let the system know when you're coming home, automatically, and when you leave, too! • Controls all the leading brands of locks, thermostats, and other devices so you don't need to compromise when selecting components. • More device compatibility—four radio protocols work with most devices • Faster processor for superior performance (compared with VeraEdge) • More memory for better response times and flexibility (compared with VeraEdge) • WPS easy push button pairing for Wi-Fi devices • Improved multi-camera management • Intuitive user set up and control • Local control of devices to avoid any latency or connectivity issues (works locally even when your Internet goes down) Use VeraPlus for home security, convenience and energy savings. Achieve the peace of mind of knowing your family is safe and your home or small business is alright—from anywhere in the world!
Brand	Vera Control, Ltd.
Product Identifier	VeraPlus-EU
OEM Version	HW: 4 FW: 4.05.03.07
Hardware Platform	ZM5304
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x008C
Product Type ID	0x0001
Product ID	0x0024
User Icon	0x05 0x00 (MSB LSB)
Installer Icon	0x05 0x00 (MSB LSB)
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_COLOR_SWITCH Color Switch V1 0x33 0 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_CLIMATE_CONTROL_SCHEDULE Climate Control Schedule 0x46 1 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_ALARM_V2 Alarm V2 0x71 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_TIME Time 0x8A 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER_TBL_MONITOR Meter Table Monitor 0x3D 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_METER_V2 Meter V2 0x32 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual QSG_Z-WAVE_OVERVIEW.pdf
Features	Feature Values Color Value Black Communications Protocol Value Z-Wave Serial API Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) Bluetooth USB (Universal Serial Bus) Firmware Updatable Value Updatable by Manufacturer
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion To include a Z-Wave device into the Z-Wave network using the VeraPlus Controller, use the Vera Custom or Generic Device Wizard on the Vera Dashboard in the Web UI/ App. During normal installation of Z-Wave devices you do NOT need to use the buttons on the Controller. The following instructions are for manually starting Z-Wave Include Mode. • Press the Select 2 times. The Z-Wave light will begin blinking. Press the Sync button briefly (less than 1 second). 24 Controller Exclusion To exclude a Z-Wave device into the Z-Wave network using the VeraPlus Controller, use the Vera Custom or Generic Device Wizard on the Vera Dashboard in the Web UI/ App. During normal installation of Z-Wave devices you do NOT need to use the buttons on the Controller. The following instructions are for manually starting Z-Wave Exclude Mode. • Press the Select 2 times. The Z-Wave light will begin blinking. Press the Sync button for at least 2 seconds, then release. 3 Learn Mode (adding another controller) To include the VeraPlus controller into an existing Z-Wave network use the following steps on the web interface. Click on Settings > Z-Wave Settings > Advanced > Select ‘Copy Z-Wave network from a primary controller’ This will put the controller into learn mode and shift it to a secondary role. The controller can now receive data from a primary device in the network and associate with other devices in the Z-Wave network via the primary controller. 5 Factory Reset If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. Reset to Network defaults - Press the Reset button 3 times in 6 seconds. Factory Reset - Press the Reset button 6 times in 6 seconds. The Controller will reboot.
Supports NWI	Yes
Supports Explorer Frames	Yes
