Product Recognition | |
|---|
Certification Number | ZC12-21070271 |
|---|

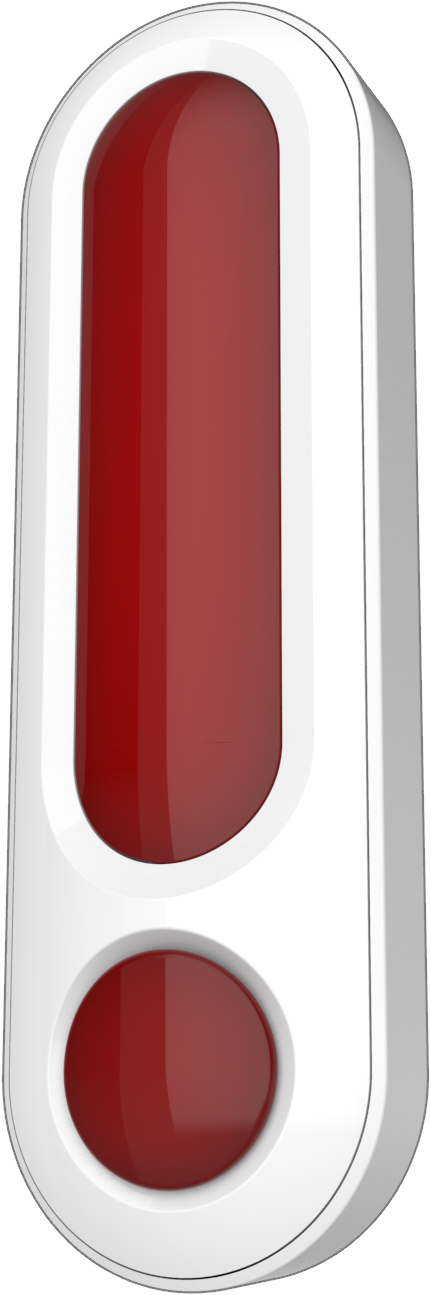

Name | Multiple Sound Siren |
|---|
Short Description | The PSE04 is a wireless siren, based on Z-WaveTM technology. |
|---|
Long Description | The PSE04 is the Z-Wave Plus ™ product, it support the security,
OTA... Those newest features of the Z-WaveTM technology. Z-
WaveTM is a wireless communication protocol designed for home
automation, speci cally to remotely control applications in
residential and light commercial environments. The technology uses
a low-power RF radio embedded or retro tted into home electronics
devices and systems, such as lighting, home access control,
entertainment systems and household appliances. |
|---|
Brand | Philio |
|---|
Product Identifier | PSE04-ANZ |
|---|
Product Line | Philio Z-wave Products |
|---|
OEM Version | HW: 1 FW: 1.02:01.02 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.15.1 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Sound Switch DT |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x013C |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0084 |
|---|
User Icon | 0x0C0E |
|---|
Installer Icon | 0x0C0E |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Security Systems |
|---|
Countries / Regions | Chile, Australia, Brazil, Malaysia |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Firmware Updatable | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | (LifeLine group) This machine provides one groups of nodes. Each group can set 1 Nodes. Used for returned events. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
7 | Play Sound Control | Control play sound's level and which sound. | 2 | 1 | 0 | 255 | 67 | From | To | Description |
|---|
0 | 255 | Control play sound's level and which sound. |
| 3 | Customer Function | Customer function switch, using bit control.
Bit0: Disable Trigger Alarm. 0:Enable , 1:Disable.
Bit1: Disable Sound. Only using optical alarm. 0:Enable ,
1:Disable.
Bit2: Temperature Unit. 0:Fahrenheit , 1:Celsius.
| 4 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
0 | 0 | Customer function switch, using bit control. The Maxmum Value is 255. |
| 2 | Sound Duration | Play sound duration, 1 tick is 30 seconds. | 2 | 1 | 0 | 255 | 6 | From | To | Description |
|---|
0 | 255 | Play sound duration, 1 tick is 30 seconds. |
| 5 | Temperature Differential Report | The temperature differential to report. | 2 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
0 | 255 | The temperature differential to report. |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The QR code can be found on the device PSE04 or on the box. | 1 | Classic Inclusion | 1. Have Z-WaveTM Controller entered inclusion mode. 2. Pressing tamper key three times within 1.5 seconds
to enter the inclusion mode. 3. After add successful, the LED will light ON 1 second | 2 | Classic Exclusion | 1. Have Z-WaveTM Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds
to enter the exclusion mode. 3. Node ID has been excluded. | 4 | Wake-Up Procedure | If a Z-Wave controller or other node in the network needs to communicate with a battery-powered device
such as a door lock, the controller sends a special beam signal. The purpose of this beam is to wake up the
FLiRS device. When the FLiRS device receives this beam, it immediately fully wakes up and then
communicates with the controller or other Z-Wave device utilizing standard Z-Wave protocol commands. If
the device does not hear a Beam it goes back to full sleep for another period until it partially awakes again
and listens for a Beam. | 5 | Factory Reset Procedure | 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed,
and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the
tamper key. If successful, the LED will light ON one second. Otherwise, the LED will ash once. 3. IDs are
excluded and all settings will reset to factory default. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
