Certification Number	ZC10-15070011

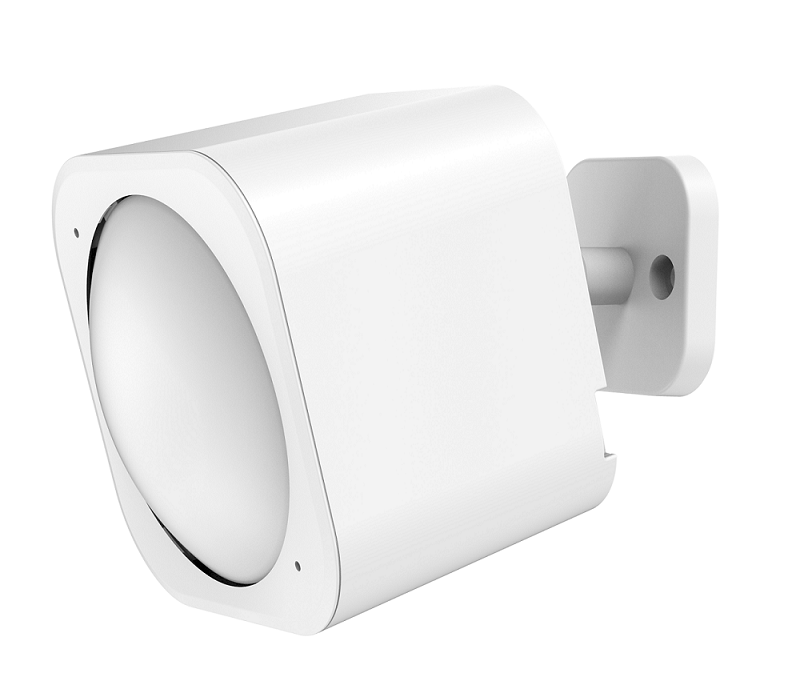

Name	MultiSensor 6
Short Description	Aeon Labs MultiSensor 6 is a Z-Wave motion sensor, temperature sensor, humidity sensor, lighting sensor, Ultraviolet sensor and Vibration sensor, all in one package.
Long Description	Aeotec by Aeon Labs’ MultiSensor looks like a motion sensor and it acts like one too. But it’s also so much more. Installing this 1 piece of Z-Wave® technology is the same as installing 6 pieces of Z-Wave technology. Your home control network will immediately understand motion, temperature, humidity, light, Ultraviolet and Vibration readings wherever MultiSensor installed. Those intelligent readings will equate to intelligence automation. And intelligent automation will give you the perfect, smart home.
Brand	Aeotec
Product Identifier	ZW100-A
OEM Version	HW: 64 FW: 1.08
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Multilevel Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0102
Product ID	0x0064
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Aeon Labs MultiSensor 6 manual.pdf
Features	Feature Values Battery Type Value CR123A Battery Quantity Value 2 Firmware Updatable Value Updatable by Consumer by RF IP (Ingress Protection) Rated Sensors Value Motion/No Motion (Binary) Air Temperature Luminance Humidity Vibration/Shock (Binary) Ultraviolet Index
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 The MultiSensor supports 1 association group. Group 1 is assigned to the Lifeline association group and can add max 5 association nodes. When the PIR motion sensor is triggered, the MultiSensor will send Basic Set (0xFF) to the associated nodes. If no PIR motion is triggered after the PIR interval time (configurable), the MultiSensor will send Basic Set (0x00) to the associated nodes. The automatically reports of temperature, humidity, luminance and ultraviolet (configurable) also can be sent to the associated nodes.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Set the PIR time. The default PIR time is 4 minutes. The Multisensor will send BASIC SET CC (0x00) to the associated nodes if no motion is triggered again in 4 minutes. 0 2 0 0 240 From To Description 10 3600 The range of PIR time is 10 to 3600. 4 Set the sensitivity of the motion sensor. This parameter changes the sensitivity level of the motion detector. 0 1 0 0 5 From To Description 1 1 Sensitivity Level 1 of 6 5 5 Maximum Sensitivity 0 0 Minimum Sensitivity 4 4 Sensitivity Level 5 of 6 2 2 Sensitivity Level 2 of 6 3 3 Sensitivity Level 3 of 6 5 Which command would be sent when the motion sensor triggered. To set which command would be sent when the motion sensor triggered. 0 1 0 0 1 From To Description 2 2 Send Sensor Binary Report CC 1 1 Send Basic Set CC 2 Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 9 Report the current power mode and the product state for battery power mode Report the current power mode and the product state for battery power mode. Note: this parameter cannot be used as Set usage. 0 2 0 0 0 From To Description 257 257 Keep awake for 10 minutes for battery power mode. 256 256 Keep sleep state for Battery power mode 0 0 USB power mode 40 Enable/disable the selective reporting only when measurements reach a certain threshold or percentage Enable/disable the selective reporting only when measurements reach a certain threshold or percentage. This is used to reduce network traffic. Note: If USB power, the Sensor will check the threshold every 10 seconds. If battery power, the Sensor will check the threshold when it is waken up. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 42 Threshold change in humidity to induce an automatic report Threshold change in humidity to induce an automatic report. Note: 1. The unit is %. 2. The default value is 10, which means that if the current humidity gap is more than 10%, it will send out a humidity report. 0 1 0 0 10 From To Description 1 100 Available rang is 1% to 100%. 43 Threshold change in luminance to induce an automatic report. Threshold change in luminance to induce an automatic report. 0 2 0 0 100 From To Description 1 30000 Available rang is 1 LUX to 30000 LUX. 44 Threshold change in battery level to induce an automatic report. Threshold change in battery level to induce an automatic report. Note: 1. The unit is %. 2. The default value is 10, which means that if the current battery level gap is more than 10%, it will send out a battery report. 0 1 0 0 10 From To Description 1 100 Available rang is 1% to 100%. 45 Threshold change in ultraviolet to induce an automatic report. Threshold change in ultraviolet to induce an automatic report. 0 1 0 0 2 From To Description 1 11 Available rang is 1 to 11. 46 Enable/disable to send the alarm report of low temperature Enable/disable to send the alarm report of low temperature(<-15℃). Note: If it is enabled, the MultiSensor will send a report of Multi Level Temperature CC to controller when the current temperature is less than -15℃). 0 1 0 0 0 From To Description 1 1 Enable. 0 0 Disable 1 30000 Available rang is 1LUX to 30000LUX. 48 Enable/disable to send a report when the measurement is more than the upper limit value or less than the lower limit value. Enable/disable to send a report when the measurement is more than the upper limit value or less than the lower limit value. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 49 Set the upper limit value of temperature sensor. Set the upper limit value of temperature sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report. 0 4 0 0 824 From To Description -400 2120 Available rang is -40.0℉ to 212.0℉. 50 Set the lower limit value of temperature sensor. Set the lower limit value of temperature sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report. High byte is the lower limit value. 0 4 0 0 320 From To Description -400 2120 Available rang is -40.0℉ to 212.0℉. 51 Set the upper limit value of humidity sensor. Set the upper limit value of humidity sensor. when the measurement is more than this upper limit, which will trigger to sent out a sensor report. 0 1 0 0 60 From To Description 0 100 Available rang is 0% to 100%. 52 Set the lower limit value of humidity sensor. Set the lower limit value of humidity sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report. 0 1 0 0 50 From To Description 0 100 Available rang is 0% to 100%. 53 Set the upper limit value of Lighting sensor Set the upper limit value of Lighting sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report. 0 1 0 0 1000 From To Description 0 30000 Available rang is 0 to 30000LUX. 54 Set the lower limit value of Lighting sensor. Set the lower limit value of Lighting sensor. When the measurement is less than this lower limit, which will trigger to sent out a sensor report. 0 1 0 0 100 From To Description 0 30000 Available rang is 0 to 30000LUX. 55 Set the upper limit value of ultraviolet sensor. Set the upper limit value of ultraviolet sensor. When the measurement is more than this upper limit, which will trigger to sent out a sensor report. 0 1 0 0 8 From To Description 1 11 Available rang is 1 to 11. 56 Set the lower limit value of ultraviolet sensor. Set the lower limit value of ultraviolet sensor. When the measurement is less than this upper limit, which will trigger to sent out a sensor report. 0 1 0 0 4 From To Description 1 11 Available rang is 1 to 11. 113 To set the interval time of sending reports in Report group 3 To set the interval time of sending reports in Report group 3 0 4 0 0 3600 From To Description 5 2678400 Available rang is 5 to 2678400 seconds. 58 Set the recover limit value of humidity sensor. Set the recover limit value of humidity sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement = (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 0 1 0 0 5 From To Description 1 50 Available rang is 1 to 50% 59 Set the recover limit value of Lighting sensor. Set the recover limit value of Lighting sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement = (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 3. Unit = 10×Recover limit (Lux) 0 1 0 0 100 From To Description 1 127 Available rang is 10Lux to 1270Lux 60 Set the recover limit value of Ultraviolet sensor. Set the recover limit value of Ultraviolet sensor. Note: 1. When the current measurement <= (Upper limit – Recover limit), the upper limit report is enabled and then it would send out a sensor report when the next measurement is more than the upper limit. After that the upper limit report would be disabled again until the measurement = (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit). 0 1 0 0 2 From To Description 0 0 USB power mode 256 256 Keep sleep state for Battery power mode 257 257 Keep awake for 10 minutes for battery power mode. 1 5 Available rang is 1 to 5. 64 Set the default unit of the automatic temperature report in parameter 101-103. Set the default unit of the automatic temperature report in parameter 101-103. 0 1 0 0 2 From To Description 2 2 The unit is Fahrenheit. 1 1 The unit is Celsius. 81 Enable/disable the LED blinking when the PIR is triggered. Enable/disable the LED blinking when the PIR is triggered. 0 1 0 0 0 From To Description 1 1 Disable 0 0 Enable. 100 Set the parameter 101-103 to default values. Set the parameter 101-103 to default values. 0 1 0 0 0 From To Description 1 1 Set the parameter 101-103 to default values. 111 To set the interval time of sending reports in Report group 1 To set the interval time of sending reports in Report group 1 0 4 0 0 3600 From To Description 5 2678400 Available rang is 5 to 2678400 seconds. 112 To set the interval time of sending reports in Report group 2 To set the interval time of sending reports in Report group 2 0 4 0 0 3600 From To Description 5 2678400 Available rang is 5 to 2678400 seconds. 201 Temperature sensor calibration Temperature sensor calibration. Note: 1. High byte is the calibration value. Low byte is the unit (0x01=Celsius, 0x02=Fahrenheit) 2. The calibration value (high byte) contains one decimal point. E.g. if the value is set to 20 (0x1401), the calibration value is 2.0 ℃ (EU/AU version) or if the value is set to 20 (0x1402), the calibration value is 2.0 ℉(US version) 3. The calibration value (high byte) = standard value - measure value. E.g. If measure value =25.3℃ and the standard value = 23.2℃, so the calibration value= 23.2℃ - 25.3℃= -2.1℃ (0xEB). If the measure value =30.1℃ and the standard value = 33.2℃, so the calibration value= 33.2℃ - 30.1℃=3.1℃ (0x1F). 0 2 0 0 0 From To Description -128 127 Available rang is -12.8℃ to 12.7℃. 203 Luminance sensor calibration Luminance sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =800Lux and the standard value = 750Lux, so the calibration value= 750 – 800= -50 (0xFFCE). If the measure value =850Lux and the standard value = 900Lux, so the calibration value= 900 – 850=50 (0x0032) 0 2 0 0 0 From To Description -1000 1000 Available rang is -1000Lux to 1000Lux. 204 Ultraviolet sensor calibration Ultraviolet sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =9 and the standard value = 8, so the calibration value= 8 – 9= -1 (0xFE). If the measure value =7 and the standard value = 9, so the calibration value= 9 – 7=2 (0x02). 0 1 0 0 0 From To Description -10 10 Available rang is -10 to 10. 202 Humidity sensor calibration Humidity sensor calibration. The calibration value = standard value - measure value. E.g. If measure value =80RH and the standard value = 75RH, so the calibration value= 75RH – 80RH= -5RH (0xFB). If the measure value =85RH and the standard value = 90RH, so the calibration value= 90RH – 85RH=5RH (0x05). 0 1 0 0 0 From To Description -50 50 Available rang is -50RH to 50RH. 252 Enable/disable all configuration parameters to be locked Enable/disable all configuration parameters to be locked. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 255 Reset to factory defaults. Reset to factory defaults. 0 4 0 0 0 From To Description 1 1 Reset all configuration parameters to factory defaults. 1431655765 1431655765 Reset the product to factory defaults.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Z-Wave button that you can find in the back of the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Z-Wave button that you can find in back of the product. 5 Factory Reset Press and hold the Z-Wave button that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Pressing the Z-Wave button once will trigger sending the Wake up notification command. If press and hold the Z-Wave button for 3 seconds, the MultiSensor will wake up for 10 minutes. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature 0x02 Illuminance Humidity Ultraviolet
Supports NWI	Yes
Supports Explorer Frames	Yes
