COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_SENSOR_BINARY_V2

Sensor Binary V2

0x30

2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SENSOR_MULTILEVEL_V11

Sensor Multilevel V11

0x31

11

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

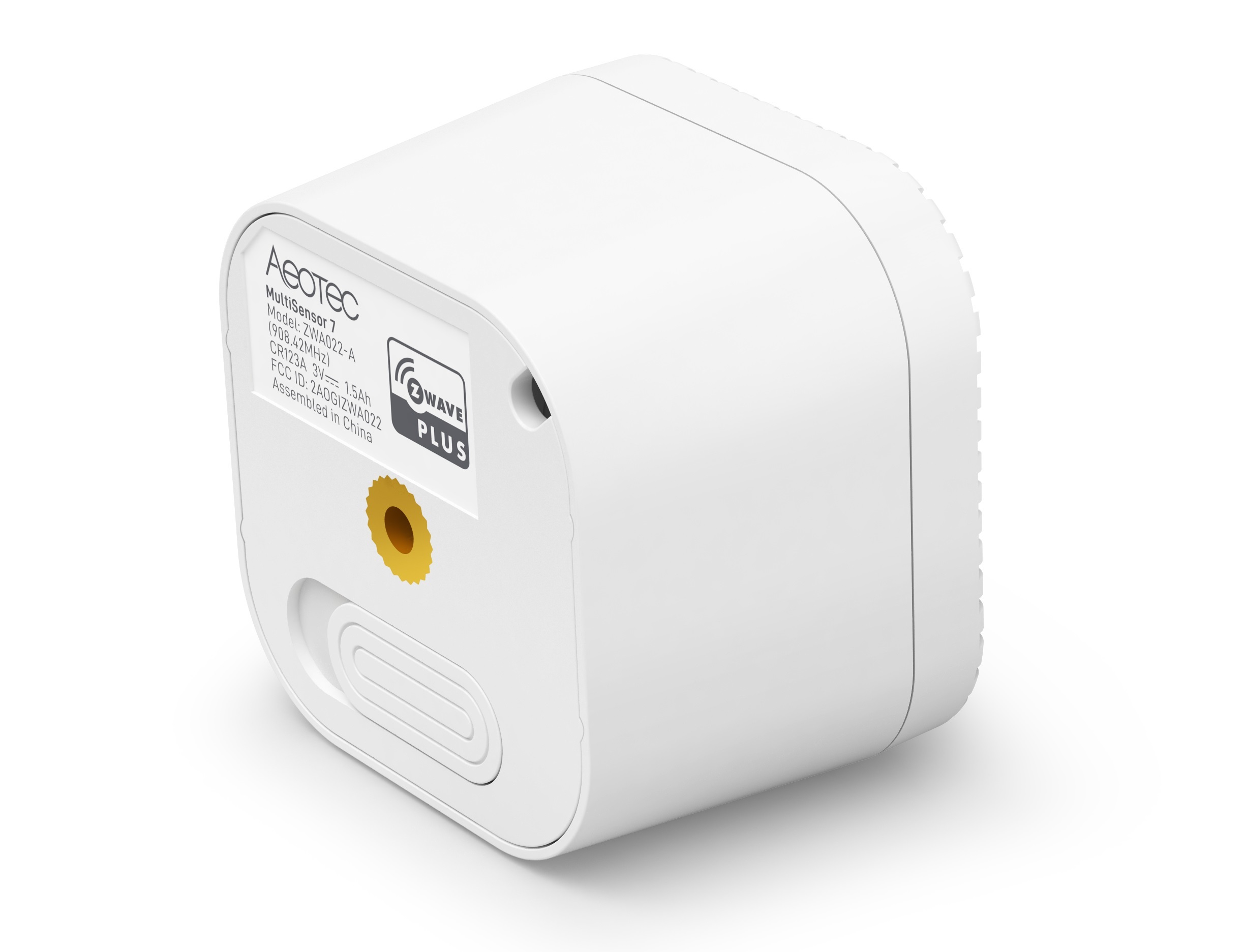

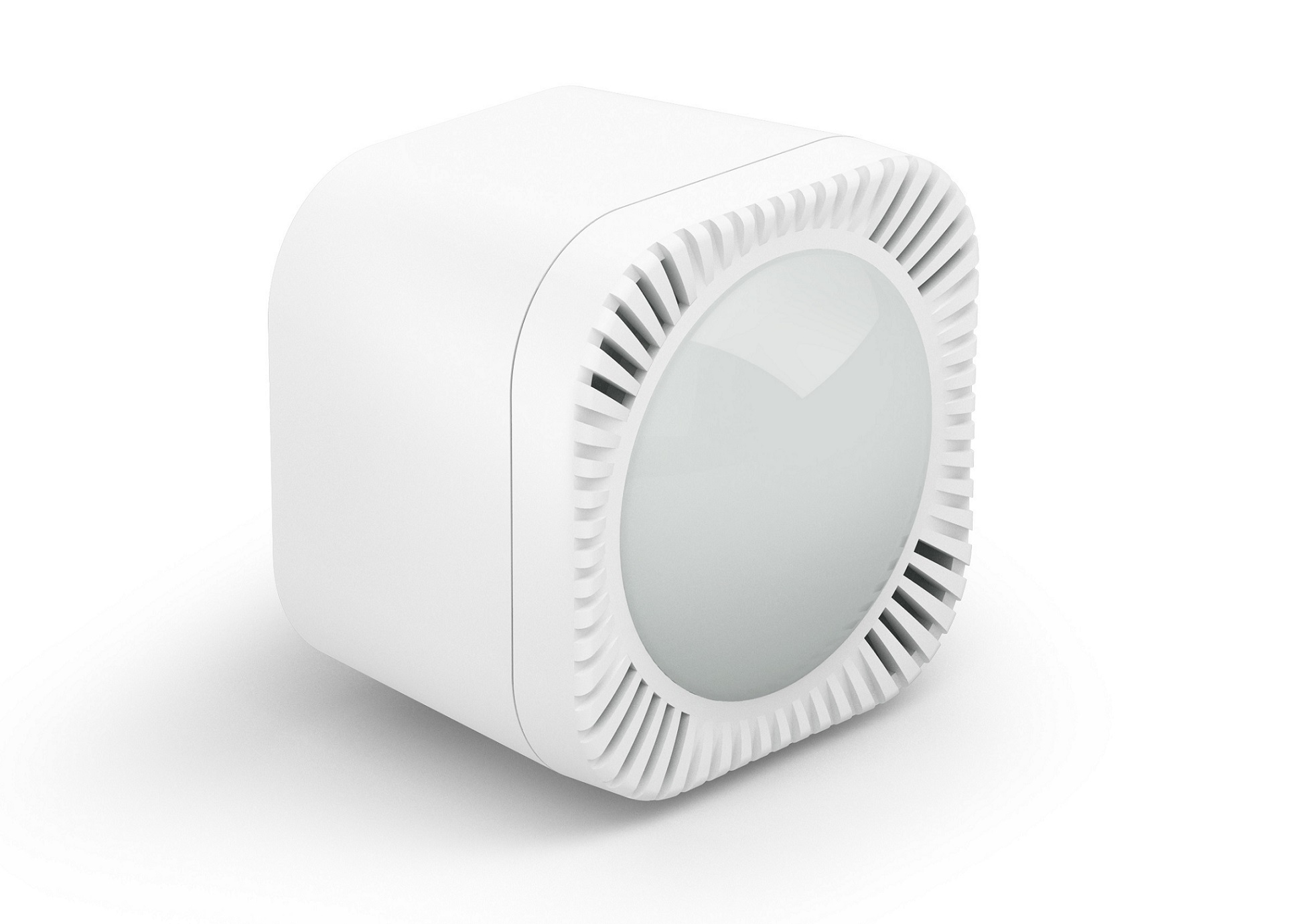

Manual_Primary_Lang

Product Manual

Image_Product_Supplemental_3

Manual_English

Product Manual in English

Battery Type

Color

Battery Quantity

Firmware Updatable

2

5

0

Motion

0x7107

Basic Set Command will be sent to the associated device when motion trigger or untrigger. The basic set value is determined by Param11, Param12. See Param13 for more information.

3

5

0

OverHeat

0x3101

Basic Set: When the temperature change value is over or under the threshold set by Param16. Scale is determined by Param64.

4

5

0

UnderHeat

0x3101

Basic Set: When the temperature change value is under or over the threshold set by Param17. Scale is determined by Param64.

5

5

0

OverHumidity

0x3105

Basic Set: When the current humidity is over or under the threshold set by Param14

6

5

0

UnderHumidity

0x3105

Basic Set: When the current humidity is under or over the threshold set by Param15

7

5

0

OverLight

0x3103

Basic Set: When the current light/lux is over or under the threshold set by Param18

8

5

0

UnderLight

0x3103

Basic Set: When the current light/lux is under or over the threshold set by Param19.

9

5

0

OverUV

0x311B

Basic Set: When the current UV is over or under the threshold set by Param20

10

5

0

UnderUV

0x311B

Basic Set: When the current UV is under or over the threshold set by Param21

11

5

0

Temperature

0x3101

Sensor Multilevel Report: When sensors above over limit or below under limit.

1

5

0

Lifeline

0x0001

Lifeline. Device Reset Locally: When factory reset. Notification Report: See Notification Chapter for more information. Sensor Binary Report: See Param5 for more information. Sensor Multilevel Report: When sensors above over limit or below under limit. Battery Report: See Param101. Indicator Report: Issued when the indicator light changed

202

Humidity Offset Value

Can add or minus this setting value to calibrate humidity when checked. Unit: %.

1

1

-100

100

0

Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98

From	To	Description
-100	100	Humidity Offset Value

203

Lux Offset Value

Can add or minus this setting value to calibrate Lux when checked.

1

2

-10000

10000

0

204

UV Offset Value

Can add or minus this setting value to calibrate UV when checked.

1

1

-10

10

0

45

Threshold Check Time

Set threshold check time in seconds if threshold is enable via Param40. 1~65535 - When USB powered 60~65535 - When Battery powered

2

2

1

65535

240

46

Low Temperature Report

Eable/Disable alarm report for low temperature(

3

1

0

1

1

201

Temperature Offset Value

Can add or minus this setting value to calibrate temperature when checked. Scale is defined by Param64. e.g. Value 15 means 1.5C or 1.5F.

1

2

-200

200

0

1

Beaming Enable/Disable

Used to enable/disable beaming. If set to 1, FLiR commands will be supported. But the device must be re-included into the network to activate it. 0 - disable 1 - enable

3

1

0

1

1

4

Motion Sensitivity

Set the sensitivity of motion sensor. 0 - disable 1- minimum sensitivity 11 - maximum sensitivity

2

1

0

11

11

5

Motion Report Type

Set which command class will be sent when motion sensor is triggered or detriggered. 0 - Sends Notification Report 1 - Sends Sensor Binary Report 2 - Sends Notification and Sensor Binary Report

3

1

0

2

2

6

Vibration Sensor Enable/Disable

Used to enable/disable vibration sensor. 0 - disable vibration 1~254 - timeout set in minutes to reset vibration status 255 - timeout set in minutes to reset vibration status

2

1

0

255

255

7

Vibration Intensity Reports

Used to enable/disable vibration intensity reports. If set to 1, vibration intensity will be sent to gateway when triggered. If set to 0, do not report.

3

1

0

1

0

10

Power Status

This value is Readonly. Used to report the power status (USB or Battery powered) 0 - When battery powered, the device will act as RSS. 1 - When USB cable insert, the device will act as LSS. The device must be re-included in the network to change the role type.

3

1

0

1

0

Yes

11

Motion Group Control(Group2)

Set control of other devices on group2 based on motion trigger. 0 - Send BASIC_SET (0xFF) when motion is triggered to associated device Send BASIC_SET (0x00) when motion is untriggered to associated device 1 - Send BASIC_SET (0x00) when motion is triggered Send BASIC_SET (0xFF) when motion is untriggered 2 - Send BASIC_SET (0xFF) when motion is triggered, Nothing when motion untriggered. 3 - Send BASIC_SET (0x00) when motion is triggered, Nothing when motion untriggered. 4 - Send BASIC_SET (0x00) when motion is untriggered, Nothing when motion triggered. 5 - Send BASIC_SET (0xFF) when motion is untriggered, Nothing when motion triggered. 6 - Send BASIC_SET (value is configured by parameter 12) when motion is triggered to associated devices. Send BASIC_SET (value is configured by parameter 12) when motion is untriggered.

3

1

0

6

0

17

Under Heat Group Threshold (Group4)

Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature (this value) send BASIC_SET (0x00) to associated devices. E.g. Value 155 means 15.5 C. Value 600 means 60.0 F.

1

2

-400

850

155

41

Temperature Threshold

Threshold = (Value * 0.1) Scale is determined by Param64. 0 = disable.

2

1

0

255

10

42

Humidity Threshold

Humidity range = 1% to 50%, 0 = disable.

2

1

0

50

5

43

Lux Threshold

0 = disable

2

2

0

10000

250

44

UV Threshold

0 = disable

2

1

0

11

1

48

Sensor Limit Control

This value is bit mask. Used to enable/disable measurement reports for various sensors that is more than the upper limit value or less than the lower limit value. 1 - Temperature upper level 2 - Humidity upper level 4 - Lux upper level 8 - UV upper level 16 - Temperature lower level 32 - Humidity lower level 64 - Lux lower level 128 - UV lower level

4

1

0

255

0

49

Temperature Upper Limit

Set upper limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current measurement) > (Upper Limit), then report sensor.

1

2

-400

1000

280

50

Temperature Lower Limit

Set lower limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current Measurement) < (Lower limit), then report sensor.

1

2

-400

1000

0

52

Humidity Upper Limit

Set humidity upper limit level.

2

1

0

100

60

54

Humidity Recover Limit

Set humidity recover limit level. Refer to Param 51.

2

1

1

50

5

55

Lux Upper Limit

Set lux upper limit level.

2

2

0

30000

1000

56

Lux Lower Limit

Set lux lower limit level.

2

2

0

30000

100

58

UV Upper Limit

Set UV upper limit level.

2

1

1

11

8

59

UV Lower Limit

Set UV lower limit level.

2

1

1

11

4

60

UV Recover Limit

Set UV recover limit level. Refer to Param 51.

2

1

1

5

1

61

Out-of-limit State

This is read only and bit mask. Out of the limit state of sensors. Bit Mask: 0 - within limit 1 - out of limit Value: 1 - Temperature upper level 2 - Humidity upper level 4 - Lux upper level 8 - UV upper level 16 - Temperature lower level 32 - Humidity lower level 64 - Lux lower level 128 - UV lower level

4

1

0

255

0

Yes

64

Temperature Scale

Set the scale for temperature when reports. 0 - Celsius 1 - Fahrenheit

3

1

0

1

0

67

Lux Recover Limit

Set lux recover limit level. Refer to Param 51.

2

1

1

255

100

81

LED Activity

Allow user to enable/disable LED activity of specific reports sent by sensor. Button press indicator is not affected by this. 0 - disable 1 - enable

3

1

0

1

1

82

Motion Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of motion sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

3

83

Temperature Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of temperature sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

84

Humidity Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of humidity sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

85

Lux Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of Lux sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

86

UV Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of UV sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

87

Vibration Sensor Report Indicator

If LED is enabled by Param81, allow user to change the report color of vibration sensor. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

2

88

Battery Report Indicator

If LED is enabled by Param81, allow user to change the report color of battery. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

89

Wakeup Report Indicator

If LED is enabled by Param81, allow user to change the report color of wakeup. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

8

90

Communication Indicator

If LED is enabled by Param81, allow user to change indicator color when receiving communication from gateway or other devices. 0 - Disabled 1 - Red 2 - Blue 3 - Green 4 - Pink 5 - Cyan 6 - Purple 7 - Orange 8 - Yellow 9 - White

3

1

0

9

0

103

Automatic Report Checklist 3

Checklist 3 for automatic timed report. When the corresponding item is selected, it will be checked when timeout setting by Param113. 1 - Battery 16 - UV 32 - Temperature 64 - Humidity 128 - Lux

4

1

0

241

0

8

Where to find S2 DSK on product

User guide section in the User manual.

1

Classic Inclusion

1. Turn your primary controller into inclusion mode. 2. Press once the Action Button on the product.

2

Classic Exclusion

1. Turn your primary controller into exclusion mode. 2. Press once the Action Button on the product.

4

Wake-Up Procedure

Press and hold the Action button on product for 2-5s.

5

Factory Reset Procedure

Press and hold the Action Button on product for 15-20s.

17

Dynamic Capabilities

The Sensor supports RSS and AOS role type: 1. When battery powered, the device will act as RSS. 2. When USB adpater powered, the device will act as AOS. Note: The device must be re-included in the network if changing its role type.

Home Security

Motion sensor status: Motion detection

Home Security

Tampering, product moved

Power Management

Mains status: AC mains disconnected

Power Management

Mains status: AC mains re-connected

Power Management

Battery maintenance status: Replace battery soon

Power Management

Battery maintenance status: Replace battery now

System

SW status: System software failure (manufacturer proprietary failure code provided)

Air temperature

Illuminance

Humidity

Ultraviolet
