Product Recognition
Certification Number	ZC10-14110008

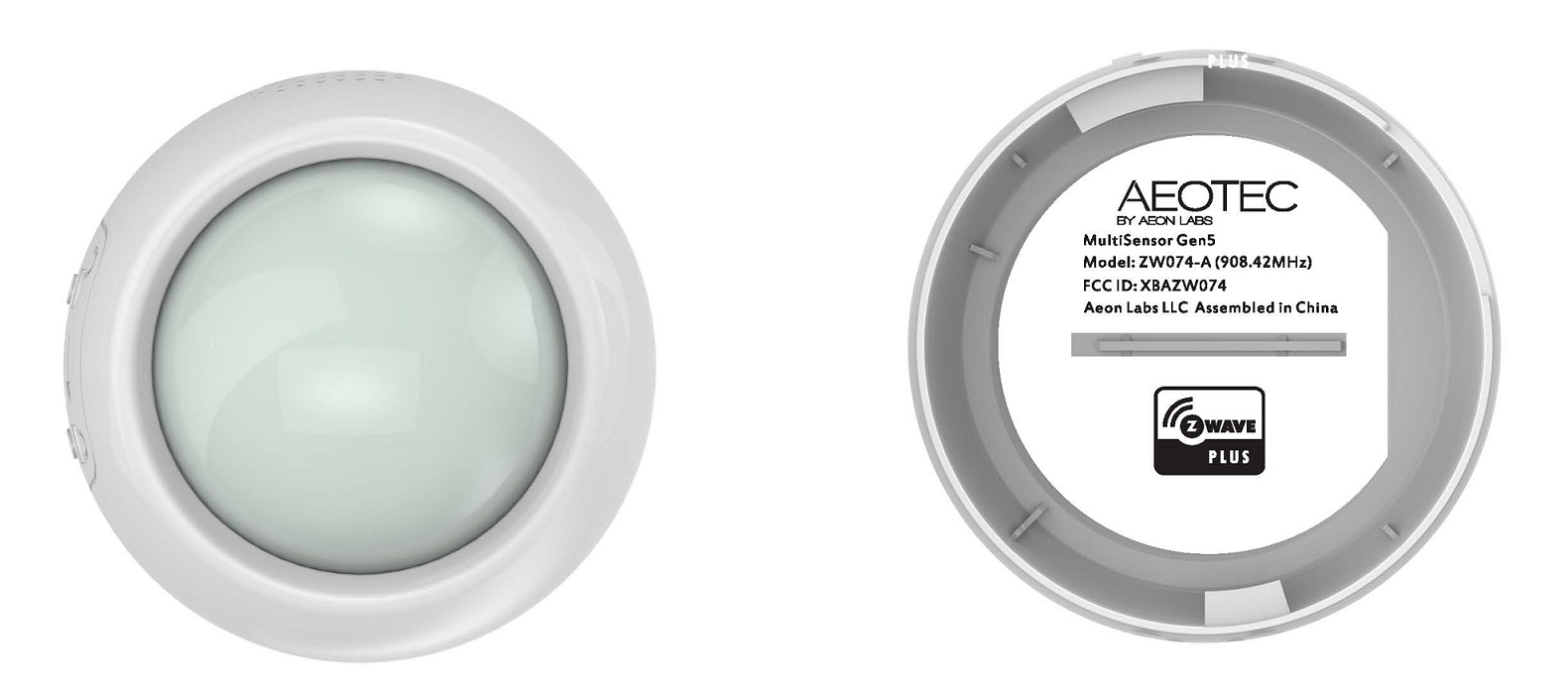

Name	MultiSensor Gen5
Short Description	Aeon Labs MultiSensor Gen5 is a Z-Wave motion sensor, temperature sensor, humidity sensor, and lighting sensor all in one package.
Long Description	The Aeotec by Aeon Labs MultiSensor Gen5 looks like a motion sensor and it acts like one too. But it’s also so much more. Installing this 1 piece of Z-Wave technology is the same as installing 4 pieces of Z-Wave technology. Your home control network will immediately understand motion, temperature, humidity and light readings wherever Multisensor installed. Those intelligent readings will equate to intelligence automation. And intelligent automation will give you the perfect, smart home.
Brand	Aeotec
Product Identifier	ZW074-A
OEM Version	HW: 4A FW: 1.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.01
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0102
Product ID	0x004A
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Instructions - MultiSensor Gen5 MCert1.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. The Motion sensor, Humidity sensor, thermometer and light sensor reports will be sent to the associated nodes in Group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 255 Reset to default factory setting This parameter is used to reset product to default factory setting. (There are just 2 values can be used). 0 4 0 0 0 From To Description 1 1 Resets all configuration parameters to default setting. 1431655765 1431655765 Reset the product to default factory setting and be excluded from the Z-wave network. 4 Enable/disable the function of motion sensor. This parameter is used to enable/disable the function of motion sensor. 1. Value=0, disable. 2. Value=1, enable. 0 1 0 0 0 From To Description 0 0 Disable the function of motion sensor. 1 1 Enable the function of motion sensor. 2 Enable/Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. This parameter is used to enable/disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 1. Value = 0, disable. 2. Value =others, enable. 0 1 0 0 0 From To Description 0 0 Disable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 1 1 Enable waking up for 10 minutes when re-power on (battery mode) the MultiSensor. 41 Threshold change in temperature to induce an automatic report. Threshold change in temperature to induce an automatic report. Note: 1. When the unit is Celsius, threshold=Value. 2. When the unit is Fahrenheit, threshold=Value*1.8 The accuracy is 0.1. 0 2 0 0 256 From To Description 0 65535 Threshold of temperature. 40 Enable/disable the selective reporting only when measurements reach a certain threshold or percentage set in 41-44 below. This parameter is used to enable/disable the selective reporting only when measurements reach a certain threshold or percentage set in the parameter 41 to 44. This is used to reduce network traffic. (0 == disable, 1 == enable) 0 1 0 0 0 From To Description 1 1 Enable the selective reporting. 0 0 Disable the selective reporting. 44 Threshold change in battery level to induce an automatic report. Threshold change in battery level to induce an automatic report. 0 2 0 0 5 From To Description 0 100 Threshold of battery level. 5 Which command would be sent when the motion sensor triggered. This parameter is used to configure that which command would be sent when the motion sensor triggered. 1. Value=1, send Basic Set CC. 2. Value=2, send Sensor Binary Report CC. 0 1 0 0 1 From To Description 2 2 Send Sensor Binary Report CC. 1 1 Send Basic Set CC. 46 Enable/disable to send the alarm report of low temperature This parameter is used to enable/disable to send the alarm report of low temperature(<-15℃) 1, Value=0, disable. 2, Value=1, enable (Note: The MultiSensor will report the Multi Level Temperature CC with the value=0xFFFF to controller if the current temperature is less than -15℃). 0 1 0 0 0 From To Description 0 0 Disable to send the alarm report of low temperature(&amp;amp;amp;amp;amp;amp;lt;-15℃) 1 1 Enable to send the alarm report of low temperature(&amp;amp;amp;amp;amp;amp;lt;-15℃) 43 Threshold change in luminance to induce an automatic report. Threshold change in luminance to induce an automatic report. 0 2 0 0 100 From To Description 0 1000 Threshold of luminance 42 Threshold change in humidity to induce an automatic report. Threshold change in humidity to induce an automatic report. 0 2 0 0 5 From To Description 0 100 Threshold of humidity 111 The interval time of sending reports in Report group 1 This parameter is used to configure the interval time of the sensor report in Report group 1. 0 4 0 0 1800 From To Description 5 2678400 The range of interval time is 5 to 2678400. 112 The interval time of sending reports in Report group 2. This parameter is used to configure the interval time of the sensor report in Report group 2. 0 4 0 0 1800 From To Description 5 2678400 The range of interval time is 5 to 2678400. 3 Timeout of the motion sensor This parameter is used to set the timeout for the motion sensor. Note: (1), The time unit is second if the value range is in 1 to 255. (2), If the value range is in 256 to 15300, the time unit will be minute and its value should follow the below rules: a), Interval time =Value/60, if the interval time can be divided by 60 and without remainder. b), Interval time= (Value/60) +1, if the interval time can be divided by 60 and has remainder. (3), Other values will be ignored. 0 2 0 0 240 From To Description 1 255 The unit of timeout is second. 256 15300 The unit of timeout is minute. 113 The interval time of sending reports in Report group 3 This parameter is used to configure the interval time of the sensor report in Report group 3. 0 4 0 0 1800 From To Description 5 2678400 The range of interval time is 5 to 2678400. 252 Enable/disable all configuration parameters to be locked This parameter is used to enable/disable all configuration parameters to be locked. (0 =disable, 1 = enable) 0 1 0 0 0 From To Description 0 0 Disable all configuration parameters to be locked. 1 1 Enable all configuration parameters to be locked.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Z-Wave button that you can find in the back of the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Z-Wave button that you can find in back of the product. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 3 Learn Mode (adding another controller) N/A 5 Factory Reset Press and hold the Z-Wave button that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Press and hold the Z-Wave button for 3 seconds will trigger sending the Wake up notification command. If press the Z-Wave button 3 times, the MultiSensor will wake up for 10 minutes.
Supports NWI	Yes
Supports Explorer Frames	Yes
