Product Recognition | |
|---|
Certification Number | ZC10-15030004 |
|---|

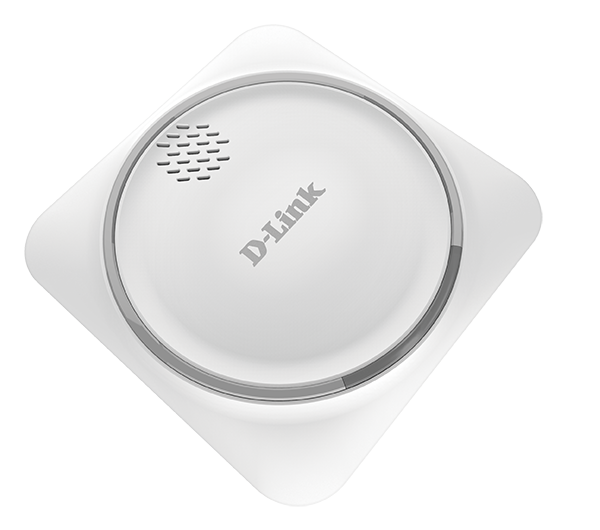

Name | mydlink Z-Wave Siren |
|---|
Short Description | The DCH-Z510 mydlink ™ Z-Wave ™ Siren is a wireless siren, based on Z-Wave ™ technology. |
|---|
Long Description | The DCH-Z510 mydlink ™ Z-Wave ™ Siren is a wireless siren, based on Z-Wave ™ technology. It is the Z-Wave™ plus product, it supports the security, OTA... Those newest features of the Z-Wave™ technology. Z-Wave™ is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home lectronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. |
|---|
Brand | D-Link Corporation |
|---|
Product Identifier | DCH-Z510 |
|---|
OEM Version | 01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.51.02 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0108 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x000A |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 8 | 0 | The group 1 is for receiving the report message, like tamper event. This is the device's Lifeline group. The group supports 8 nodes maximum. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
31 | Alarm Duration | Play alarm sound duration, 1 tick is 30 seconds. Default is 3 minutes, maximum is 63.5 minutes 0: means never auto stop. | 0 | 1 | 0 | 0 | 6 | From | To | Description |
|---|
1 | 127 | Play alarm sound duration, 1 tick is 30 seconds. | 0 | 0 | means never auto stop. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Have Z-Wave™ Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds
to enter the inclusion mode.
3. After add successful, the LED will light ON 1 second | 2 | Exclusion | 1. Have Z-Wave™ Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
Node ID has been excluded. | 5 | Factory Reset | Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4 pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default. | 3 | Learn Mode (adding another controller) | This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. | 6 | Additional Special Features | Tamper Report
When the tamper key is pressed over 5 seconds. The device will into
the alarm state. In that state, if the tamper key be released, the device will unsolicited to send the report to the nodes in the group 1. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
