Product Recognition

Certification Number

ZC10-17015387

Name

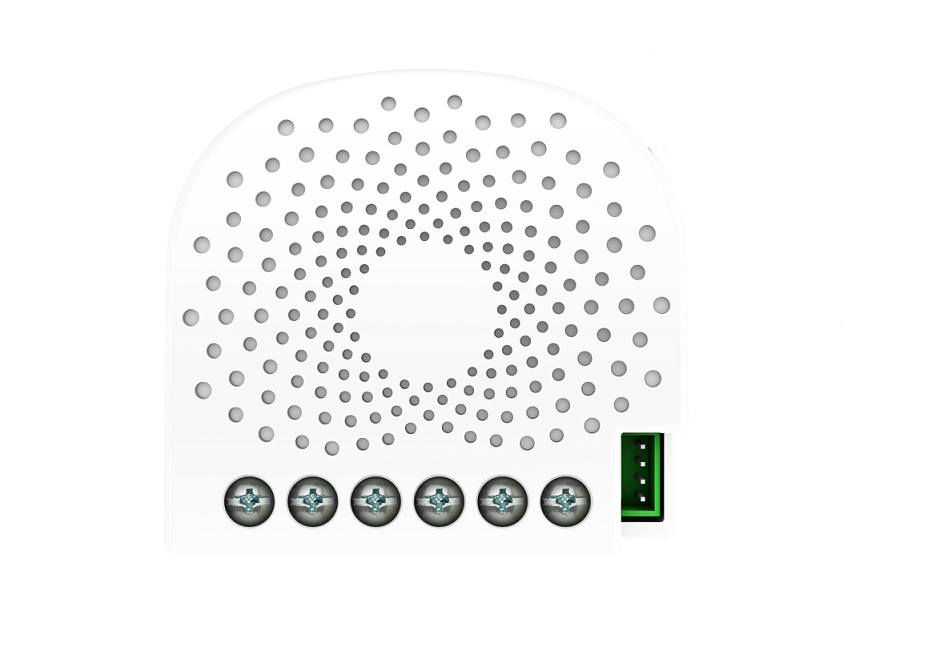

Nano Dimmer

Short Description

Aeotec Nano Dimmer is a Z-Wave Smart Dimmer specifically used to enable Z-Wave command and control (on/off/dim) of any wall switches also provides energy metering.

Long Description

Aeotec Nano Dimmer is a Z-Wave Smart Dimmer specifically used to enable Z-Wave command and control (on/off/dim) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Nano Dimmer. The Nano Dimmer is also a security Z-Wave plus device and supports Over The Air (OTA) feature for the products firmware upgrade.

Brand

Aeotec

Product Identifier

ZW111-B

OEM Version

HW: 111 FW: 1.01:01.01

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0086

Product Type ID

0x0203

Product ID

0x006F

User Icon

0x0600

Installer Icon

0x0600

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

Energy Meters, All Lighting Devices, Dimming Lighting Devices

Countries / Regions

Australia

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

124

Set the control destination for external switch S2

Set the control destination for external switch S2.

From	To	Description
1	1	control the output loads of itself.
2	2	control the other nodes.
3	3	control the output loads of itself and other nodes

125

Set the default dimming rate.

From	To	Description
1	255	The value range is 1 to 255 seconds.

128

Get the current working mode

Get the current working mode. Note: This parameter is a Get-only parameter.

From	To	Description
0	0	Unknown working mode.
1	1	2-wire mode
2	2	3-wire mode

129

Set the dimming principle

Set the dimming principle.

From	To	Description
0	0	Trailing edge mode
1	1	Leading edge mode

102

To set which reports need to be sent in Report group 2.

From	To	Description
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)

103

To set which reports need to be sent in Report group 3.

From	To	Description
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)

111

Set the interval of automatic report for Report group 1.

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

112

Set the interval of automatic report for Report group 2.

600

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

120

Configure the external switch mode for S1.

From	To	Description
0	0	Enter automatic identification mode
1	1	Momentary push button mode
2	2	3 way switch mode
3	3	2-state switch mode

121

Configure the external switch mode for S2.

From	To	Description
0	0	Enter automatic identification mode
1	1	Momentary push button mode
2	2	3 way switch mode
3	3	2-state switch mode

Overheat protection.

Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃.

From	To	Description
0	0	Disable
1	1	Enable

To set which notification would be sent to the associated devices (Group 1)

To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmer’s load is changed.

From	To	Description
1	1	Send Hail CC
2	2	Send Basic CC report
0	0	Send Nothing
4	4	Send Hail CC when using the manual switch to change the load state.
3	3	Send Multilevel Switch report

To set which notification would be sent to the associated nodes in association group 3

To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads.

From	To	Description
1	1	Send Basic Set CC
0	0	Send Nothing

To set which notification would be sent to the associated nodes in association group 4

To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads.

From	To	Description
0	0	Send Nothing
1	1	Send Basic Set CC

Set appointment 1

Set the ON time of output load.

1573017

From	To	Description
16777215	16777222	The day value (Mon to Sun)
256	316	The minute value of ON time
65536	65560	The hour value of ON time
0	99	The brightness level

Set appointment 2

Set the ON time of output load.

2293760

From	To	Description
0	99	The brightness level
256	316	The minute value of ON time
65536	65560	The hour value of ON time
16777215	16777222	The day value (Mon to Sun)

Enables/disables parameter 91 and 92 below:

Enables/disables the function of parameter 91 and 92.

From	To	Description
0	0	Disable
1	1	Enable

Set the threshold value of wattage.

Threshold change in wattage (in terms of wattage) to induce an automatic report.

From	To	Description
0	60000	The thershold value range is 0 to 60000

Set the threshold value of wattage.

Threshold change in wattage (in terms of percentage) to induce an automatic report.

From	To	Description
0	100	The thershold value range is 0 to 100

100

Set parameter 101-103 to default value.

From	To	Description
0	0	Reset the parameter 101-103

Current Overload Protection.

Output Load will be turned off automatically after 30 seconds and if the current overrun 1.5A.

From	To	Description
1	1	Enable
0	0	Disable

101

To set which reports need to be sent in Report group 1.

From	To	Description
1	1	Send Meter Report of voltage (V)
2	2	Send Meter Report of current (A)
4	4	Send Meter Report of wattage (W)
8	8	Send Meter Report of energy (kWh)

110

Set parameter 111-113 to default value.

From	To	Description
0	0	Reset the parameter 111-113

113

Set the interval of automatic report for Report group 2.

Set the interval of automatic report for Report group 3.

600

From	To	Description
1	2147483647	The range of interval time is 1 to 2147483647.

122

Get the state of touch panel port

From	To	Description
0	0	the touch panel is not connected.
5	5	the touch panel is connected.

123

Set the control destination for external switch S1

From	To	Description
1	1	control the output loads of itself.
3	3	control the output loads of itself and other nodes.
2	2	control the other nodes

130

To get what type of load the Dimmer is connected to.

To get what type of load the Dimmer is connected to. Note: This parameter is a Get-only parameter.

From	To	Description
1	1	Resistive load
2	2	Capacitive load
3	3	Inductive load
0	0	Unknown load.

131

Set the min brightness level that the load can reach to.

From	To	Description
0	99	The level range is 0 to 99.

132

Set the max brightness level that the load can reach to. Note:

From	To	Description
0	99	The level range is 0 to 99.

249

Set the recognition way of load

From	To	Description
0	0	Never recognize the load when power on
1	1	Only recognize once when first power on
2	2	Recognize the load once power on

252

Lock/unlock configuration parameters

Lock/unlock configuration parameters.

From	To	Description
0	0	Unlock
1	1	Lock

255

Reset the Nano Dimmer

Reset the Nano Dimmer to factory default.

From	To	Description
0	0	Reset all configuration parameters to factory default setting
1431655765	1431655765	Reset to factory default setting and removed from the z-wave network

Texts

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
