Product Recognition
Certification Number	ZC10-16125354

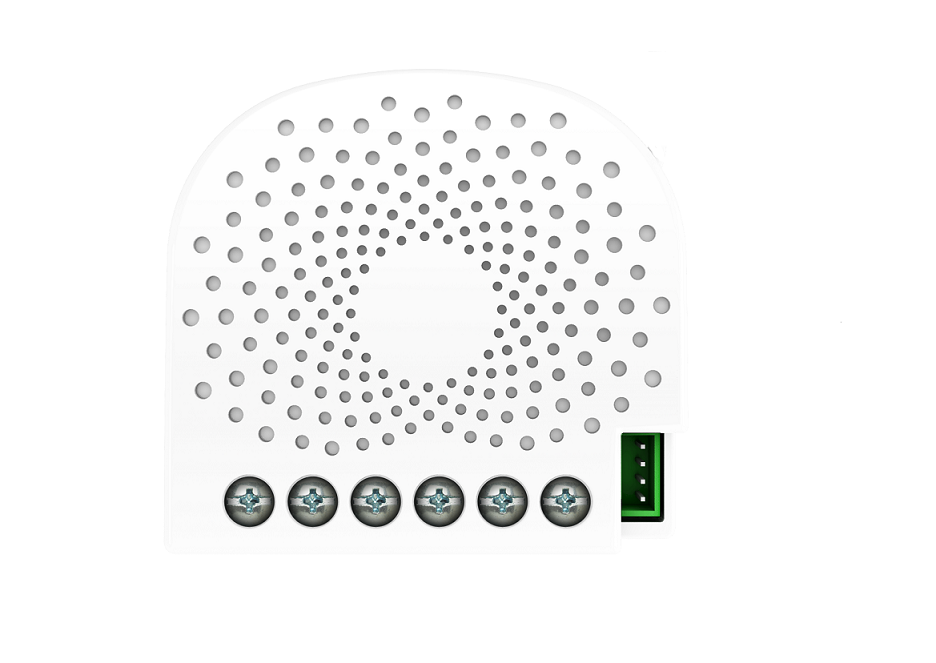

Name	Nano Dimmer
Short Description	Aeotec Nano Dimmer is a Z-Wave Smart Dimmer specifically used to enable Z-Wave command and control (on/off/dim) of any wall switches also provides energy metering.
Long Description	Aeotec Nano Dimmer is a Z-Wave Smart Dimmer specifically used to enable Z-Wave command and control (on/off/dim) of any wall switches. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Nano Dimmer. The Nano Dimmer is also a security Z-Wave plus device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Aeotec
Product Identifier	ZW111-A
OEM Version	HW: 111 FW: 1.02:01.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0103
Product ID	0x006F
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Aeon Labs Nano Dimmer manual.pdf
Features	Feature Values Electric Load Type Value Incandescent Fluorescent ELV (Electronic) LED Dimmable LED Inductive (e.g. Motor) Firmware Updatable Value Updatable by Consumer by RF Supported Meter Type Value Electric Energy Switch Type Value Toggle Z-Wave Scene Type Value Scene Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 5 0 Send Basic Set (configured by parameter 0x51 ) to the associated nodes in Group 3 when the external switch S1 is operated 4 5 0 Send Basic Set (configured by parameter 0x52) to the associated nodes in Group 4 when the external switch S2 is operated 1 5 0 Z-Wave Plus Lifeline. When the load state of Nano Dimmer (on/off/dim the load ) is changed, the Hail CC, Switch Multilevel Report and Basic Report (configured by parameter 80) can be sent to the associated nodes in this group. 2 5 0 Forward the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Switch all to the associated nodes in Group 2 when the Nano Dimmer receives the Basic Set, Switch Binary Set, Switch Multilevel Start Level Change, Switch Multilevel Stop Level Change, Switch Multilevel Set, Switch all commands from main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 Current Overload Protection. Output Load will be turned off automatically after 30 seconds and if the current overrun 1.5A. 0 1 0 0 1 From To Description 1 1 Enable 0 0 Disable 124 Set the control destination for external switch S2 Set the control destination for external switch S2. 0 1 0 0 3 From To Description 1 1 control the output loads of itself. 2 2 control the other nodes. 3 3 control the output loads of itself and other nodes 129 Set the dimming principle Set the dimming principle. 0 1 0 0 1 From To Description 0 0 Trailing edge mode 1 1 Leading edge mode 125 Set the default dimming rate. Set the default dimming rate. 0 1 0 0 3 From To Description 1 255 The value range is 1 to 255 seconds. 128 Get the current working mode Get the current working mode. Note: This parameter is a Get-only parameter. 0 1 0 0 0 From To Description 0 0 Unknown working mode. 1 1 2-wire mode 2 2 3-wire mode 130 To get what type of load the Dimmer is connected to. To get what type of load the Dimmer is connected to. Note: This parameter is a Get-only parameter. 0 1 0 0 0 From To Description 1 1 Resistive load 2 2 Capacitive load 3 3 Inductive load 0 0 Unknown load. 131 Set the min brightness level that the load can reach to. Set the min brightness level that the load can reach to. 0 1 0 0 0 From To Description 0 99 The level range is 0 to 99. 132 Set the max brightness level that the load can reach to. Note: Set the max brightness level that the load can reach to. Note: 0 1 0 0 99 From To Description 0 99 The level range is 0 to 99. 249 Set the recognition way of load Set the recognition way of load 0 1 0 0 2 From To Description 0 0 Never recognize the load when power on 1 1 Only recognize once when first power on 2 2 Recognize the load once power on 121 Configure the external switch mode for S2. Configure the external switch mode for S2. 0 1 0 0 0 From To Description 0 0 Enter automatic identification mode 1 1 Momentary push button mode 2 2 3 way switch mode 3 3 2-state switch mode 122 Get the state of touch panel port Get the state of touch panel port 0 1 0 0 0 From To Description 0 0 the touch panel is not connected. 5 5 the touch panel is connected. 123 Set the control destination for external switch S1 Set the control destination for external switch S1 0 1 0 0 3 From To Description 4 4 Send Meter Report of wattage (W) 8 8 Send Meter Report of energy (kWh) 1 1 control the output loads of itself. 3 3 control the output loads of itself and other nodes. 2 2 Send Meter Report of current (A) 2 2 control the other nodes 1 1 Send Meter Report of voltage (V) 252 Lock/unlock configuration parameters Lock/unlock configuration parameters. 0 1 0 0 0 From To Description 0 0 Unlock 1 1 Lock 120 Configure the external switch mode for S1. Configure the external switch mode for S1. 0 1 0 0 0 From To Description 0 0 Enter automatic identification mode 1 1 Momentary push button mode 2 2 3 way switch mode 3 3 2-state switch mode 255 Reset the Nano Dimmer Reset the Nano Dimmer to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default setting 1431655765 1431655765 Reset to factory default setting and removed from the z-wave network 111 Set the interval of automatic report for Report group 1. Set the interval of automatic report for Report group 1. 0 4 0 0 3 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 112 Set the interval of automatic report for Report group 2. Set the interval of automatic report for Report group 2. 0 4 0 0 600 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 113 Set the interval of automatic report for Report group 2. Set the interval of automatic report for Report group 3. 0 4 0 0 600 From To Description 1 2147483647 The range of interval time is 1 to 2147483647. 103 To set which reports need to be sent in Report group 3. To set which reports need to be sent in Report group 3. 0 1 0 0 0 From To Description 1 1 Send Meter Report of voltage (V) 2 2 Send Meter Report of current (A) 4 4 Send Meter Report of wattage (W) 8 8 Send Meter Report of energy (kWh) 110 Set parameter 111-113 to default value. Set parameter 111-113 to default value. 0 1 0 0 0 From To Description 0 0 Reset the parameter 111-113 92 Set the threshold value of wattage. Threshold change in wattage (in terms of percentage) to induce an automatic report. 0 1 0 0 5 From To Description 0 100 The thershold value range is 0 to 100 100 Set parameter 101-103 to default value. Set parameter 101-103 to default value. 0 1 0 0 0 From To Description 0 0 Reset the parameter 101-103 4 Overheat protection. Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100 ℃. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 102 To set which reports need to be sent in Report group 2. To set which reports need to be sent in Report group 2. 0 1 0 0 0 From To Description 1 1 Send Meter Report of voltage (V) 2 2 Send Meter Report of current (A) 4 4 Send Meter Report of wattage (W) 8 8 Send Meter Report of energy (kWh) 91 Set the threshold value of wattage. Threshold change in wattage (in terms of wattage) to induce an automatic report. 0 2 0 0 25 From To Description 0 60000 The thershold value range is 0 to 60000 101 To set which reports need to be sent in Report group 1. To set which reports need to be sent in Report group 1. 0 4 0 0 0 80 To set which notification would be sent to the associated devices (Group 1) To set which notification would be sent to the associated devices (Group 1) when the state of Nano Dimmer’s load is changed. 0 1 0 0 0 From To Description 1 1 Send Hail CC 2 2 Send Basic CC report 3 3 Send Multilevel Switch report 0 0 Send Nothing 4 4 Send Hail CC when using the manual switch to change the load state. 81 To set which notification would be sent to the associated nodes in association group 3 To set which notification would be sent to the associated nodes in association Group 3 when using the external switch 1 to switch the loads. 0 1 0 0 1 From To Description 1 1 Send Basic Set CC 0 0 Send Nothing 82 To set which notification would be sent to the associated nodes in association group 4 To set which notification would be sent to the associated nodes in association Group 4 when using the external switch 2 to switch the loads. 0 1 0 0 1 From To Description 0 0 Send Nothing 1 1 Send Basic Set CC 85 Set appointment 1 Set the ON time of output load. 0 4 0 0 1573017 From To Description 16777215 16777222 The day value (Mon to Sun) 256 316 The minute value of ON time 65536 65560 The hour value of ON time 0 99 The brightness level 86 Set appointment 2 Set the ON time of output load. 0 4 0 0 2293760 From To Description 0 99 The brightness level 256 316 The minute value of ON time 65536 65560 The hour value of ON time 16777215 16777222 The day value (Mon to Sun) 90 Enables/disables parameter 91 and 92 below: Enables/disables the function of parameter 91 and 92. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
