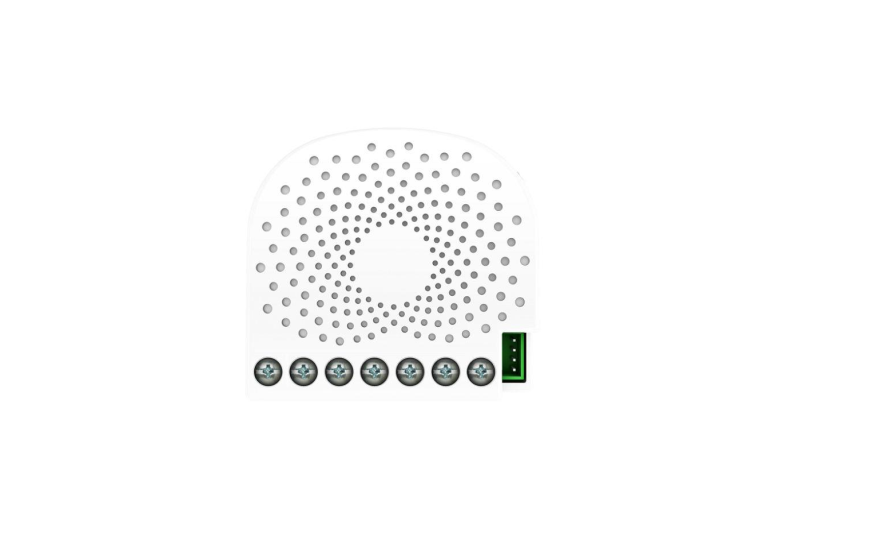

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Scene Actuator Conf

0x2C

1

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_BASIC_V2

Basic V2

0x20

2

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

Manual_English

Product Manual in English

Adv_Manual

Advanced Information Product Manual

Color

Firmware Updatable

Neutral Wire Required

Switch Load Capacity Current

Window Covering Control Features

1

5

0

Lifeline

0x0001

Used for some commands auto sending when status changed.

2

5

0

Retransmit

0x0000

Retransmit when receiving the follow commands

41

Repositioning Status Report

Used to Get repositioning Status.

1

1

0

1

0

42

Calibration Lock

Used to enable/disable calibration lock from different ways.

1

1

0

2

1

80

Switch Status Report Selection

Choose which report to send when switch status change

1

1

0

2

2

85

Extern Button Mode Setting

Extern Button Mode Setting

1

1

0

1

0

120

Switch Type of External Switch 1

Used to set Switch type of External Switch 1,and reports will return automatically during identify.

1

1

0

4

0

121

Switch Type of External Switch 1

Used to set Switch type of External Switch 1,and reports will return automatically during identify.

1

1

0

4

0

248

Function Setting of External Switch S1&S2

Used to Enable/Disable function of External Switch S1&S2. Note : This value can be combine, e.g. set to 3(1+2=3),means networking function and Reset function are both enable.

1

1

1

2

1

255

Reset Function

Used to reset configuration parameter value to default value or reset to factory default settings. Note： Parameter 0x16, 0x22, 0x23, 0x24, 0x25, 0x27, 0x28 will not reset to default value by this command.

1

4

0

1431655765

0

2

Classic Exclusion

3.6 How to Remove the device from Z-Wave network 1. Set your Z-Wave Controller into its 'Remove Device' mode in order to remove the product from your Z-Wave system.Refer to the Controller's manual if you are unsure of how to perform this step. 2. Click Action Button/S1/S2(external switch need to be identified first) 6 times will enter exclusion mode. 3. If Removing fails, it will bright red light for 2s then turn back to Regular Light Mode, repeat steps 1-2. Contact us for further support if needed. 4. If Removing succeeds, it will become breathing blue light. Now, it is removed from Z-Wave network successfully.

5

Factory Reset Procedure

3.7 How to Factory Reset Manually, press and hold the Action Button for at least 20s and then release. The LED indicator will become breathing blue light, which indicates the reset operation is successful. Otherwise, please try again. Contact us for further support if needed. Note: 1. This procedure should only be used when the primary controller is missing or inoperable. 2. Factory Reset will: a) Remove the product from Z-Wave network; b) Delete the Association setting;

8

Where to find S2 DSK on product

There is no DSK on the product.QR code used for SmartStart inclusion. DSK code can be found on packaging.

6

Other Special Features

Calibration for Shutter have 2 modes: Shutter Mode for Standard roller blind, and Venetian Mode for Venetian Blind. Shutter will record the Curtain Trip Time for Shutter mode and Curtain Trip Time + Blade Turn Time for Venetain Mode. The detail can be found in section 4.2 Calibration in Advanced information Product Manual.

1

Classic Inclusion

3.5.2 Classic inclusion Learn Mode 1. Set your Z-Wave Controller into its 'Add Device' mode in order to add the product into your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step. 2. Make sure the product is powered. If not, plug it into a wall socket and power on; its LED will be breathing blue light all the time. 3. Click Action Button once, it will quickly flash blue light for 30 seconds until it is added into the network. It will become constantly bright yellow light after being assigned a NodeID. 4. If your Z-Wave Controller supports S2 encryption, enter the first 5 digits of DSK into your Controller's interface if/when requested. The DSK is printed on its housing. 5. If Adding fails, it will bright red light for 2s and then become breathing blue light; repeat steps 1 to 4. Contact us for further support if needed. 6. If Adding succeeds, it will bright blue light for 2s and then turn to Load Indicator Mode. Now, this product is a part of your Z-Wave home control system. You can configure it and its automations via your Z-Wave system; please refer to your software's user guide for precise instructions
