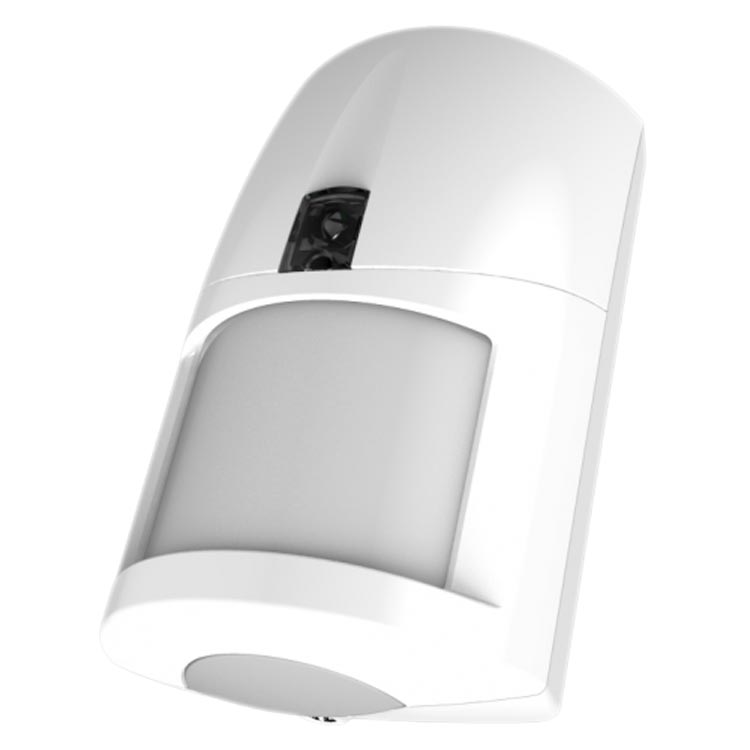

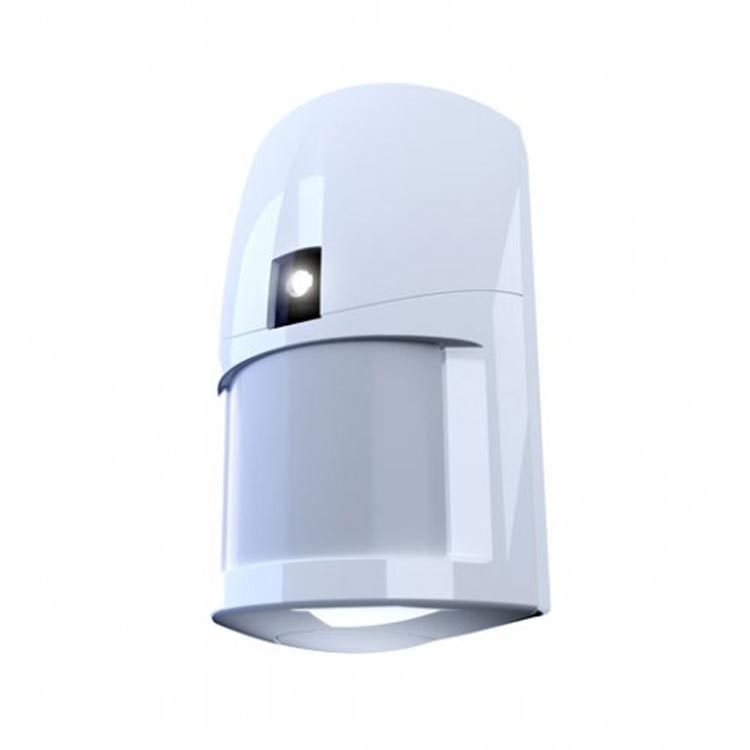

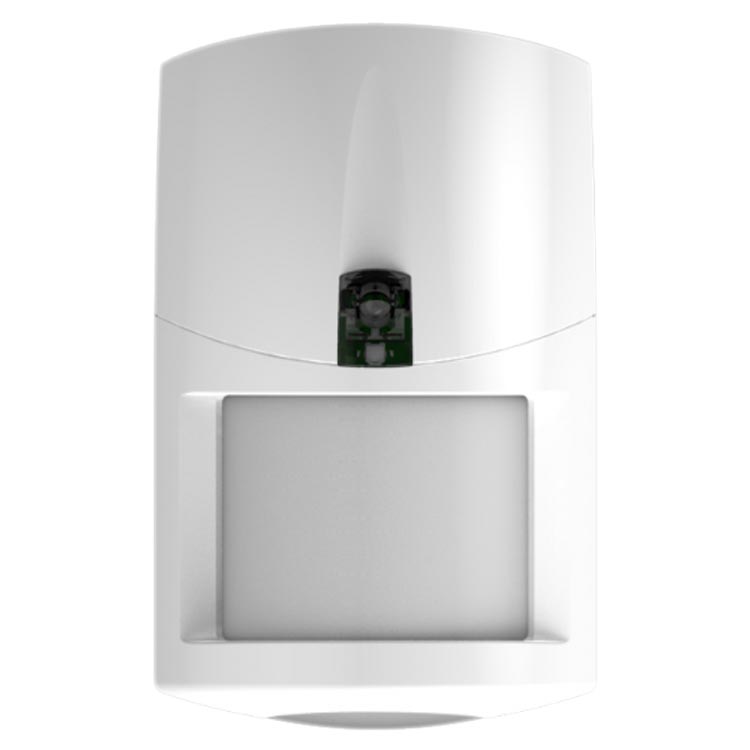

COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Sensor Multilevel V5

0x31

5

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

Battery Quantity

Battery Type

1

5

0

Lifeline

Lifeline: BATTERY_REPORT, NOTIFICATION_REPORT, SENSOR_MULTILEVEL_REPORT, DEVICE_RESET_LOCALLY_NOTIFICATION, INDICATOR_REPORT

1

Motion Alarm Retrigger Duration

The duration in seconds that the motion alarm would not be sent since last motion alarm reported. The motion alarm report is enabled only when the duration timer has expired. Range: 10~3600; Default: 240; value = 10 disable motion alarm report. Any valid value that great than 10 enable motion alarm report.

2

Yes

2

10

3600

240

Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98

From	To	Description
10	10	Disable motion alarm report
11	3600	Enable motion alarm report

2

Motion Alarm Retrigger Modes

This option will select how the motion alarm retrigger duration timer (CPN#1) to be reset. Range: 0~1. Value = 0, in this mode, the motion alarm retrigger duration timer (CPN#1) will be reset to zero once the motion event is detected. Hence, the motion alarm retrigger duration timer will start recounting which extends the retrigger duration. This mode will extend the battery life and reduce unnecessary motion alarm reports (default). Value = 1, in this mode, the motion alarm retrigger duration timer (CPN#1) would not be reset once the motion event has detected. The motion alarm reports will be enabled to send once the motion alarm retrigger duration timer has expired. In this mode, it will report the motion alarm event with greater fidelity. This setting might be used where the device will be used for automation tasks.

2

Yes

1

0

1

0

Yes

3

Motion Clear Duration

The period of time in seconds to send motion clear report after motion alarm has reported in Security Mode. Range: 0~3600; Default: 10; value = 0 disable motion clear report.

2

Yes

2

0

3600

10

4

Low battery setting

Report battery low warning message when battery level reaches this value (percentage). Range: 10~50 (10%~50%)

2

Yes

1

10

50

10

6

Luminance Change threshold

This parameter determines the change in Lux of light intensity level resulting in sending luminance report. Range: 0~60 (Lux). Default: 50. Value = 0 Disable luminance value scanning, no report. Note: The luminance value is scanned every 5 seconds. A luminance report will be sent if a change over the set threshold value is detected.

2

Yes

1

0

60

50

Yes

7

Temperature Change threshold

This parameter determines the change in temperature value resulting in sending temperature value report. Range: 0~80 (10 = 1.0 °C or °F; 20 = 2.0 °C). Value > 0 and <10 set as 10. Default: 10. Value = 0 Disable temperature value scanning, no report. Note: The temperature value is scanned every 5 minutes. A temperature report will be sent if a change over the set threshold valueis detected.

2

1

0

80

10

Yes

8

Temperature Scheduled report interval

The temperature value report interval time is based on 30 minutes per kick. The value N related to the time in minutes is N x 30 minutes. Range: 0~120. Default: 6 (6x30 =180 minutes). Value = 0 Disable temperature scheduled report.

2

Yes

1

0

120

6

Yes

9

Temperature Scale Setting

Option to select the temperature scale type reported in Celsius or Fahrenheit. Range: 0~1. Value = 0 Celsius (C): Value = 1 Fahrenheit (F).

2

Yes

1

0

1

0

10

Night Light ON Duration

Range: 0~1. Value = 0 Night Light ON for 10 seconds (default). Value = 1 Night Light ON for 30 seconds.

2

Yes

1

0

1

0

Yes

11

Night Light ON based on ambient light level meas

Range: 0~1. Value = 0 Night Light ON only when sense detects total darkness (default). Value = 1 Night Light ON only when a small amount of light is detected.

2

Yes

1

0

1

0

Yes

4

Wake-Up Procedure

LUX will be in wake-up mode for 30 Seconds on power-up (batteries have been inserted). • Event reporting is disabled during wake-up. • LUX Z-Wave sensor also enters wake-up mode for 60 seconds once it has been added into a Z- Wave network - to allow the device to complete a Z-Wave interview. • There is no wake-up Mode after the device has been removed from a Z-Wave network - the unpaired device will function in Walk Test mode.

5

Factory Reset Procedure

TO FACTORY DEFAULT LUX Z-WAVE SENSOR To reset all LUX Z-Wave sensor settings to factory default, press and hold the Z-Wave Action button for 20 seconds and release. This will remove any previous Z- Wave network inclusion credentials and reset any user set parameters.

6

Other Special Features

LUX will be in Walk Test mode once it exits wake- up mode. The duration of the Walk Test Mode is configurable by CPN#13. The default is 30 minutes. The Motion Alarm Retrigger Timer CPN#1 and Retrigger Mode CPN#2 are disabled during Walk- Test mode to allow the device to be tested without lockout timers. Motion events report whenever motion has detected. Use Walk-Test Mode to test the sensor’s detection coverage and Z-Wave signal. Please note the Mounting Location and Mounting Height instructions for optimal performance. • To exit Walk-Test mode, press and hold the Z-Wave Action Button for more than 3 seconds then release.

8

Where to find S2 DSK on product

*If your Z-Wave controller supports S2 Security 2 Authenticated encryption and DSK, enter the first 5 digits of the DSK printed at the bottom of the QR image on the rear of the LUX Z-Wave sensor. ADDING WITH SMART START* LUX Z-Wave sensor is a SmartStart enabled device allowing it to be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. *Requires a SmartStart compatible controller and app. LUX Z-Wave sensor must be within network range. Scan the DSK QR code image on the front of this manual or on the rear of the LUX Z Wave sensor

2

Classic Exclusion

REMOVING LUX Z-WAVE SENSOR FROM A Z-WAVE NETWORK You may need to refer to your Z-Wave gateway’s instructions for removing devices. 1. Put your primary Z-Wave gateway into exclude mode, the gateway should confirm that it is waiting to remove a device, 2. Press the Z-Wave Action button on your LUX Z-Wave sensor for 1 second. 3. The LED on the LUX Z-Wave sensor will display a solid Green LED for 1 second after successful exclusion.

1

Classic Inclusion

ADDING LUX Z-WAVE SENSOR INTO A Z-WAVE NETWORK Power up the LUX Z-Wave sensor by inserting the batteries (or fit the batteries in the correct polarity). You may need to refer to your Z-Wave controller’s instructions for adding devices. 1. Put your primary Z-Wave gateway into inclusion mode, the gateway should confirm that it is waiting to add a new device, 2. Press the Z-Wave Action button on your LUX Z-Wave sensor for 1 second. 3. The LED on the LUX Z-Wave sensor will blink Red rapidly, followed by a solid Green LED for 1 second for successful inclusion, or a solid red LED for 1 second for a failed inclusion.

Home Security

Cover status: Tampering, product cover removed

Home Security

Motion sensor status: Motion detection

Air temperature

Illuminance
