Product Recognition

Certification Number

ZC10-22017070

Name

Ness Z-Wave Smart Plug

Short Description

Smart plug is a Z-Wave™ Switch plugin module specifically used to enable Z-Wave™ command and control (on/off) of any plug-in tool.

Long Description

Smart plug is a Z-Wave™ Switch plugin module specifically used to enable Z-Wave™ command and control (on/off) of any plug-in tool.

Brand

Ness

Product Identifier

ZA-216001

Product Line

OEM Version

HW: 1 FW: 1.02

Hardware Platform

ZM5202

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0208

Product Type ID

0x0102

Product ID

0x0029

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

Australia

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

171

Frequency of power reports

Defines how often power reports are sent to associated devices (Lifeline Group).

2678400

3600

From	To	Description
3600	2678400	Available values: 3600- 2678400 (3600 - 2678400s)
0	0	The function is disabled.

152

Percentage threshold for power reporting

Set the power percentage threshold. When the load power percentage value exceeds this threshold, the smart plug will send a power report to the associated device (Lifeline Group).

100

From	To	Description
0	0	The function is disabled.
0	100	Available values: 0 - 100 (0 - 100%)

151

Threshold of power report

Set the power threshold. When the load power value exceeds this threshold, the smart plug will send a power report to the associated device (Lifeline Group).

200

From	To	Description
0	0	0 - The function is disabled.
0	200	Available values: 0 - 200 (0 - 200W)

172

Frequency of energy reports

Defines how often energy reports are sent to associated devices (Lifeline Group).

2678400

7200

From	To	Description
3600	2678400	Available values: 3600- 2678400 (3600 - 2678400s)
0	0	The function is disabled.

173

Frequency of voltage reports

Defines how often voltage reports are sent to associated devices (Lifeline Group).

2678400

From	To	Description
3600	2678400	Available values: 3600- 2678400 (3600 - 2678400s)
0	0	The function is disabled.

174

Frequency of electric current reports

Defines how often electric current reports are sent to associated devices (Lifeline Group).

2678400

From	To	Description
3600	2678400	Available values: 3600- 2678400 (3600 - 2678400s)
0	0	The function is disabled.

Send reports when load status changes

Defines whether to send report to the associated device (Lifeline Group) when the load status of the Smart Plug changes.

From	To	Description
0	0	The function is disabled.
1	1	Send Basic report.
2	2	Send Basic report only when Load condition is not changed by Z-WAVE Command.

254

Enable/Disable the configuration command

Enable:The values of other parameters can be changed. Disable:The values of other parameters cannot be changed.

From	To	Description
0	0	Enable
1	1	Disable

Texts

ID	Description	Value
5	Factory Reset Procedure	Please use this procedure only when the network primary controller is missing or otherwise inoperable. Long press the button for 20 seconds and the blue LED will speed up the flash and then LED will keep on for 3 seconds in blue and Smart Plug will send ”Device Reset Locally Notification” to the main controller and exclude from the Z-Wave™ network, this procedure will reset Smart Plug to factory default. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1	Classic Inclusion	Add for inclusion (non-security and security): 1)Connect the power supply. 2)Set the Z-Wave™ network main controller into learning mode. 3)Triple click the Z-button, the LED indicator will be flashing 3 times in Blue. 4)Smart Plug should be recognized and included into the Z-Wave™ network.
2	Classic Exclusion	1) Insert the Plug into a socket. 2) Set the Z-Wave™ network controller into the exclusion mode. 3) Triple click the Z button. 4) LED will blink in blue for 3 times, and then start slow flashing to indicate that the remove for exclusion is successful. LED will indicate network status after it is removed from Z-Wave™ network.
6	Other Special Features	If you want your Smart Plug to be a security device that use secure/encrypted message to communicate in a Z-Wave™ network, then a security enabled Z-Wave™ controller is needed

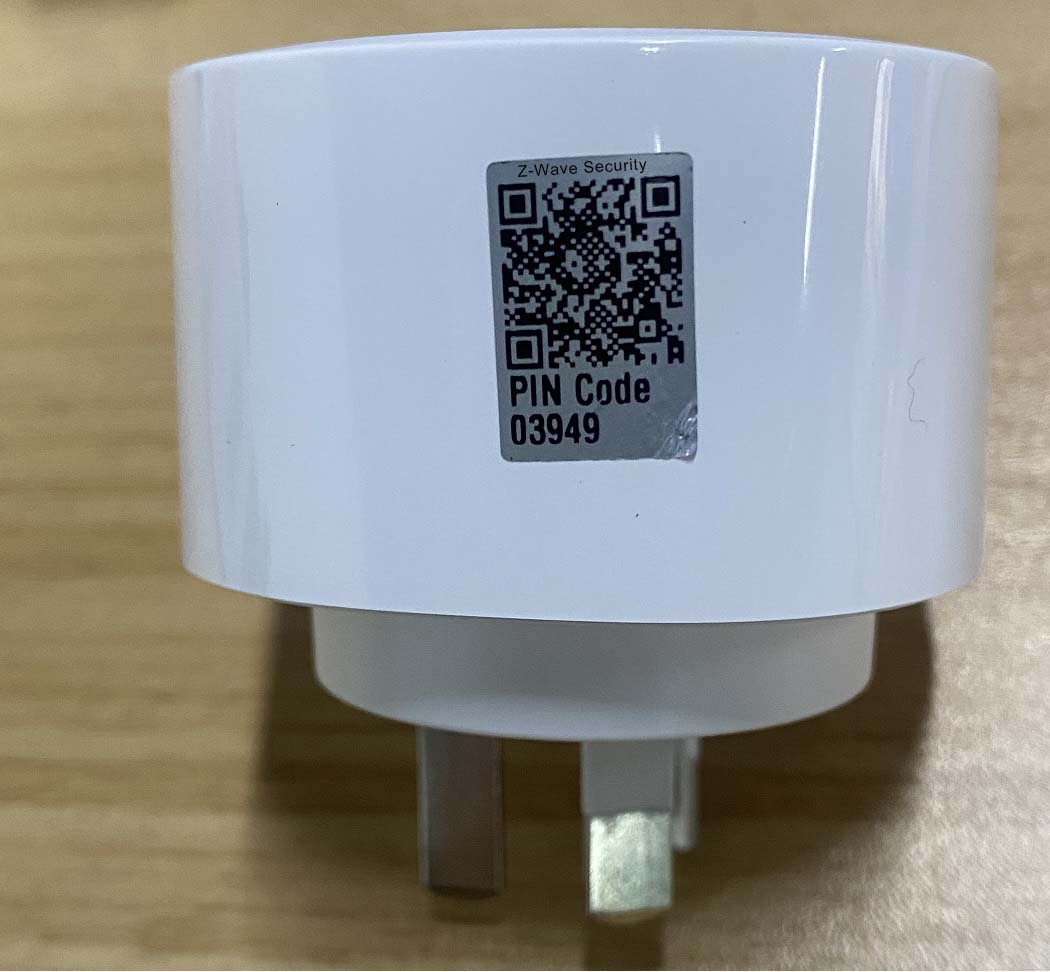

8	Where to find S2 DSK on product	The position of the QR code is on the side of the product, using 29*29 pixels, which will be attached to the product in the form of a label. SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave™ QR Code present on the product with a controller providing SmartStart inclusion .No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. 1) Scan the QR code on your device, and add the device DSK to the main controller. 2) Power on Smart Plug. 3) LED will blink in blue for 3 times, and enter SmartStart. If add Smart Plug for inclusion is successful, the LED will be off. Then Z-Wave™ PC Controller interface will display the corresponding device information.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
