Product Recognition
Certification Number	ZC10-16085162

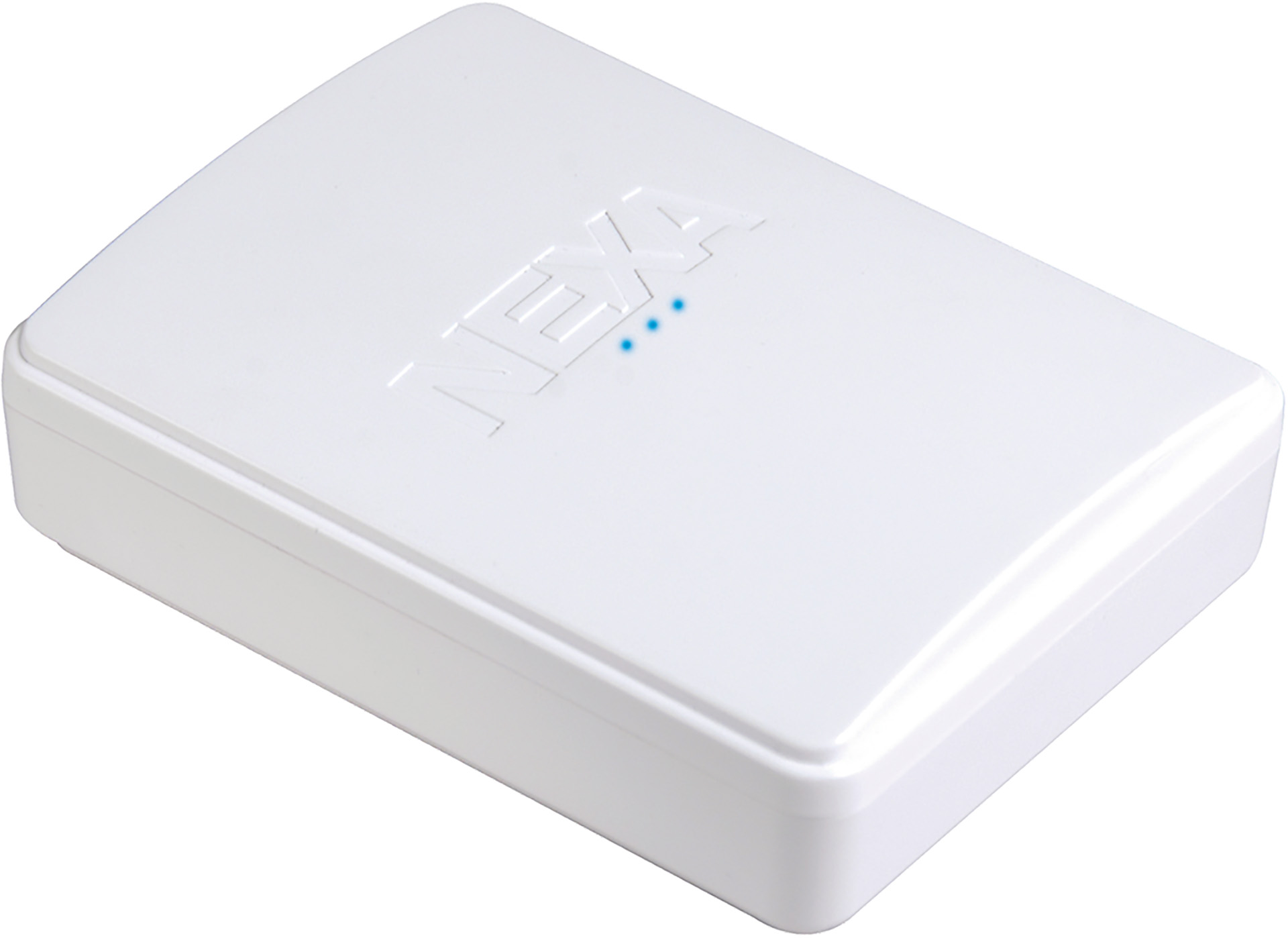

Name	Nexa Bridge
Short Description	Controller for Z-Wave, 433 MHz, 868 MHz
Long Description	Nexa Bridge is the the bridge between Z-Wave, 433 MHz and 868 MHz. You can mix the different protocols as you wish and build a smarter home. Use the the Z-Wave for devices that needs two-way communication, choose 433 MHz for System Nexa devices and sensors and with 868 MHz you can connect your smoke alarms to Nexa Bridge. The outstanding App for for your smartphone gives you total control of everything in your house. Nexa Bridge is not in need of internet connection to work while you are at your home network and all scenarios will run offline at all time. Nexa Bridge will make your home the smartest!
Brand	Nexa
Product Identifier	Nexa Bridge v1
OEM Version	HW: 1 FW: 4.38:03.06
Hardware Platform	ZM5304
Z-Wave Version	6.51.09
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0268
Product Type ID	0x0001
Product ID	0x0001
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Screenshots App.pdf
Features	Feature Values Communications Connections Value Ethernet (Wired)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion At the home menu, choose More, Z-Wave, Include Z-Wave 24 Controller Exclusion At the home menu, choose More, Z-Wave, Exclude Z-Wave 3 Learn Mode (adding another controller) At the home menu, choose More, Z-Wave, Enter Learn mode 5 Factory Reset Power up device, wait 7 minutes, press and hold reset button 10 seconds on the backside of the device.
Supports NWI	Yes
Supports Explorer Frames	Yes
