Product Recognition | |
|---|---|
Certification Number | ZC10-20076949 |

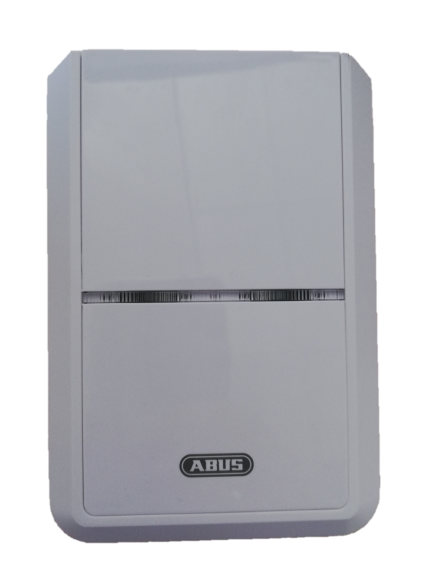

Name | Nexello 3I/3O Hybrid Module |
Short Description | The module supports 3 Inputs for max. 12V and 3 Outputs for max. 24V. |
Long Description | The module is mounted via a bracket, it is tamper protected and has a back-up battery.
Three Inputs for the connection of:
Analogue sensors with voltage 0~12V
Digital sensors with voltage 0~12V
Potential-free outputs NC/NO
Open Collector Outputs OC
Three Outputs for connecting actuators with a maximum of 24VDC
SPDT (Single Pole, Double Throw) relay (toggle switch)
functions:
Configurable timer that automatically switches off after a preset period of time (default is 500 ms)
The output can be set to activate automatically when the input terminals
(see configuration setting) |
Brand | ABUS |
Product Identifier | PLHA10100 |
Product Line | Z-Wave Plus 500 series |
OEM Version | HW: 1 FW: 1.00:00.04 |
Hardware Platform | SD3502 |
Z-Wave Version | 6.81.06 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Notification Sensor |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0403 |
Product Type ID | 0x0003 |
Product ID | 0x0007 |
User Icon | 0x0C07 |
Installer Icon | 0x0C07 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Security Systems |
Countries / Regions | European Union |
Supported Command Classes | |
Controlled Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supported Multilevel Sensors | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
