Product Recognition | |
|---|
Certification Number | ZC10-20096975 |
|---|

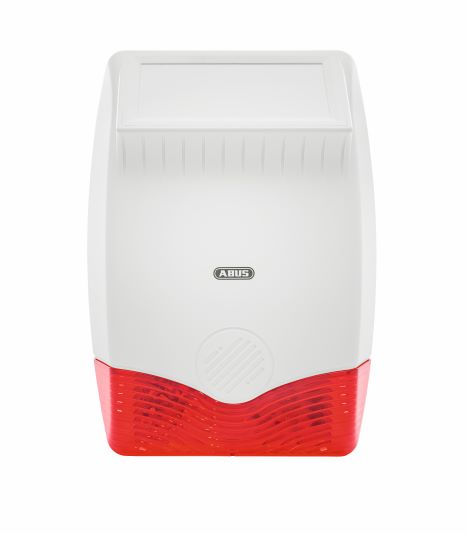

Name | Nexello Outdoor Siren |
|---|
Short Description | Outdoor siren with strobelight and sounder |
|---|
Long Description | Fire, breaking and entering or tampering: The ABUS Nexello outdoor siren for protected outdoor areas will sound the alarm at over 100 dB in all cases. On request in addition to or exclusively visually via a red LED.
The settings for alarm duration, volume and the siren LED can be flexibly configured.
Is the alarm duration too long? Or want the LED of the outdoor siren to alert you of the enabling and disarming of the alarm system? Various parameters can be individually adjusted. The desired configuration is carried out in a few simple steps via ABUS Nexello.
The outdoor siren can be operated completely 100% wirelessly using batteries or an external power supply and can be freely positioned using a wall bracket with a set of dowels and screws. It has a cover contact and wall contact as protection against tampering. The siren indicates an imminent battery replacement or power failure, via a push notification to the free Nexello app. |
|---|
Brand | ABUS |
|---|
Product Identifier | PLSG10100 |
|---|
Product Line | Z-Wave Plus 500 series |
|---|
OEM Version | HW: 1 FW: 1.01:00.03 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.82.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0008 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons, Security Systems |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | The Lifeline Association is automatically established between the Z-Wave controller and the device at inclusion and defines what information is exchanged between the Z-Wave controller and the device. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Alarm duration | Setting how long an alarm of the piezo siren lasts when triggered. | 1 | 2 | 5 | 600 | 180 | From | To | Description |
|---|
5 | 600 | Adjustable from 5 - 600 in seconds |
| 4 | Sabotage Alarm | Defines whether an alarm should be triggered directly in the event of a sabotage alarm. | 1 | 2 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | The siren does not automatically trigger an alarm, the sabotage alarm is triggered by the Z-Wave controller. This function is deactivated by default, because when activated, a sabotage alarm is always triggered directly by the siren, even if the Z-Wave controller/alarm system is in maintenance mode, for example. | 1 | 1 | The siren always triggers an alarm automatically, regardless of the status of the Z-Wave controller. Note: Sabotage Alarm will also be triggered while maintenance mode. |
| 2 | Alarm | Setting the reaction in case of an alarm. | 1 | 2 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | siren and LEDs / flash | 1 | 1 | Siren only | 2 | 2 | LEDs only / flash light |
| 3 | Siren volume | Adjusts the volume of the siren. | 1 | 2 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | 100dB | 1 | 1 | 85dB |
| 5 | Status display | Setting whether only certain status events should be displayed. | 1 | 2 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | activation & deactivation | 1 | 1 | Only activation | 2 | 2 | Only deactivation | 3 | 3 | No activation & deactivation |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion on the device. | 2 | Classic Exclusion | Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. | 8 | Where to find S2 DSK on product | The DSK code (Device-Specific Key) is the device-specific key of your device and is required for secure inclusion (teach-in) via S2 on the Z-Wave controller. The first 5 digits, known as the PIN Code, of the DSK can be found underneath the QR Code on the side of the product. | 4 | Wake-Up Procedure | The device is a FLiRS (Frequently Listening Receiver Slave) and therefore does not require a wake-up function. The outside siren can be controlled by the Z-Wave controller at any time. | 5 | Factory Reset Procedure | Press the Link button 3 times quickly (within 1.5 seconds). Press quickly (within 1 second) a fourth time and hold down the Link Button for at least 5 seconds.
The siren is now reset to factory settings. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
System | Cover status: Tampering, product cover removed |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
