Product Recognition
Certification Number	ZC10-15070012
Name	Nexia One Touch

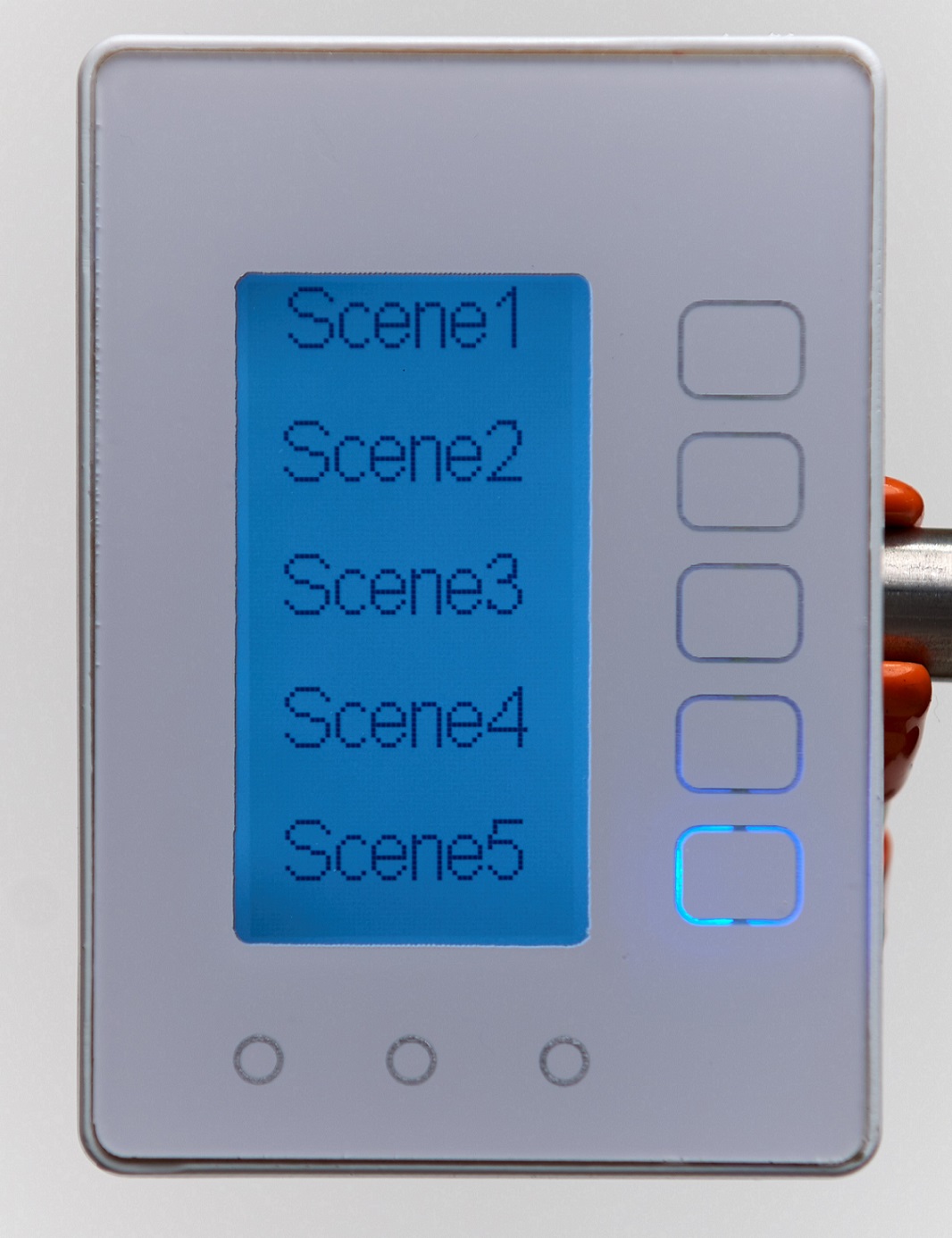

Short Description	The Nexia One Touch is a wall controller device that can act as a central scene controller or a traditional stand-alone scene controller.
Long Description	The Nexia One Touch is a wall controller device that can act as a central scene controller or a traditional stand-alone scene controller. The Nexia One Touch contains up to 15 different scenes organized in 3 pages of screen where each page contains 5 scenes. The Nexia One Touch conveniently runs up to 15 modes and automations with the tap of a button.
Brand	Ingersoll Rand - Nexia Home Intelligence
Product Identifier	NX1000
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x0178
Product Type ID	0x5343
Product ID	0x4735
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 18-HD79D1-1-EN NX1000 One Touch Controller.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 7 2 0 Profile: Control: Key6 Name: Button6 Basic Set Command Class List: Basic Set 10 2 0 Profile: Control: Key9 Name: Button9 Basic Set Command Class List: Basic Set 11 2 0 Profile: Control: Key10 Name: Button10 Basic Set Command Class List: Basic Set 2 2 0 Profile: Control: Key1 Name: Button1 Basic Set Command Class List: Basic Set 3 2 0 Profile: Control: Key2 Name: Button2 Basic Set Command Class List: Basic Set 4 2 0 Profile: Control: Key3 Name: Button3 Basic Set Command Class List: Basic Set 5 2 0 Profile: Control: Key4 Name: Button4 Basic Set Command Class List: Basic Set 6 2 0 Profile: Control: Key5 Name: Button5 Basic Set Command Class List: Basic Set 8 2 0 Profile: Control: Key7 Name: Button7 Basic Set Command Class List: Basic Set 23 2 0 Profile: Control: Key7 Name: Button7 Command Class List: Scene Activation Set 24 2 0 Profile: Control: Key8 Name: Button8 Command Class List: Scene Activation Set 25 2 0 Profile: Control: Key9 Name: Button9 Command Class List: Scene Activation Set 31 2 0 Profile: Control: Key15 Name: Button15 Command Class List: Scene Activation Set 17 2 0 Profile: Control: Key1 Name: Button1 Command Class List: Scene Activation Set 43 2 0 Profile: Control: Key12 Name: Button12 Command Class List: Thermostat Setpoint Set 46 2 0 Profile: Control: Key15 Name: Button15 Command Class List: Thermostat Setpoint Set 41 2 0 Profile: Control: Key10 Name: Button10 Command Class List: Thermostat Setpoint Set 1 2 0 Profile: General:Lifeline Name: Z-Wave Plus Lifeline Command Class List: Battery Report Central Scene Notification Device Reset Locally Notification 42 2 0 Profile: Control: Key11 Name: Button11 Command Class List: Thermostat Setpoint Set 44 2 0 Profile: Control: Key13 Name: Button13 Command Class List: Thermostat Setpoint Set 45 2 0 Profile: Control: Key14 Name: Button15 Command Class List: Thermostat Setpoint Set 9 2 0 Profile: Control: Key8 Name: Button8 Basic Set Command Class List: Basic Set
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 4 Button 3 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 1 Reserved Reserved 0 1 0 0 0 From To Description 0 0 Reserved 2 Button 1 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 5 Button 4 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 3 Button 2 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 6 Button 5 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 7 Button 6 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 9 Button 8 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 10 Button 9 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 11 Button 10 Type Configuration for the type of button and which commands it will send when pressed. 0 1 0 0 0 From To Description 0 4 0x00 = Central Scene 0x01 = Scene Control Momentary 0x02 = BASICSET Toggle 0x03 = Scene Control/BASICSET toggle 0x04 = Thermostat 23 Button LED Level Button LED Brightness Level 0 1 0 0 5 From To Description 1 10 1=10% 10 = 100% 24 Backlight Level Backlight Brightness Level 0 1 0 0 5 From To Description 1 10 1=10% 10 = 100% 17 Reserved 0 1 0 0 0 From To 0 0
Texts	ID Description Value 2 Exclusion 1. Put primary controller into exclusion mode 2. Press any button to wake the One Touch 3. Press and hold the middle page button (round button) until the Installer Setup menu appears 4. Select the 'Z-Wave' button 5. Select the 'Exclude' button 6. Exclude will fast flash and then SUCCESS will display briefly 4 Device Wake-Up When the backlight and/or screen is off, the first page (round) button press will wake the One Touch causing it to send a Wakeup Notification report. The One Touch has a 6 hour default wakeup interval and will send the Wakeup Notification once that interval expires. WAKEUP_INTERVAL_CAPABILITIES_REPORT Min Wake Up Interval : 4200 seconds Max Wake Up Interval: 86400 seconds Default Wake Up Interval: 21600 seconds Wake Up Interval Step: 10 1 Inclusion 1. Put primary controller into inclusion mode 2. Press any button to wake the One Touch 3. Press and hold the middle page button (round button) until the Installer Setup menu appears 4. Select the 'Z-Wave' button 5. Select the 'Include' button 6. Include will fast flash and then SUCCESS will display briefly 5 Factory Reset Please use Factory Reset as a last resort option only as all network settings and associations will be cleared. 1. Press any button to wake the One Touch 2. Press and hold the middle page button (round button) until the Installer Setup menu appears 3. Select the 'System' button 4. Select the 'Factory Reset' button 5. Select 'Yes' to proceed with the factory reset
Supports NWI	Yes
Supports Explorer Frames	Yes
