Product Recognition | |
|---|
Certification Number | ZC10-22067096 |
|---|

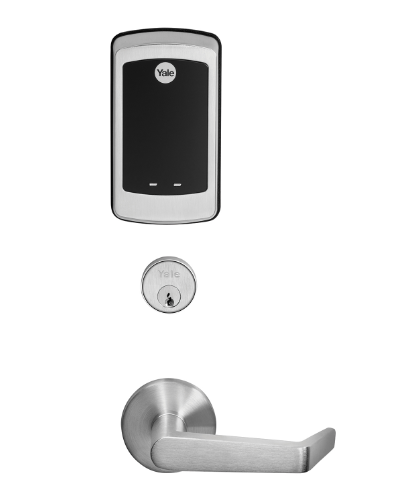

Name | nexTouch Sectional Mortise Touch Screen Keypad Lock |
|---|
Short Description | Expanding the Yale nexTouch™ product line for even more applications, the new nexTouch Sectional Mortise Keypad Lock provides robust security for a wide range of commercial and multi-family buildings. |
|---|
Long Description | Expanding the Yale nexTouch™ product line for even more applications, the new nexTouch Sectional Mortise Keypad Lock provides robust security for a wide range of commercial and multi-family buildings. Just like the original cylindrical nexTouch lock, it is ANSI/BHMA Grade 1 certified and offered in capacitive touchscreen or pushbutton keypad versions. With just the addition of a Z-Wave Plus™ module, you can add this lock to compatible smart home and alarm systems. Other standard features include voice-guided programming, privacy mode with Door Position Switch, 9V battery backup, support of up to 100 unique user codes, and more. |
|---|
Brand | Yale Locks & Hardware |
|---|
Product Identifier | NTM622-ZW2 |
|---|
Product Line | nexTouch |
|---|
OEM Version | HW: 255 FW: 1.78:32.27 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x8100 |
|---|
Product ID | 0x0A16 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Door Lock Type | | Firmware Updatable | | IP (Ingress Protection) Rated | | Outdoor Use | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 1 | Lifeline | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 0 | One Touch Locking Off | 255 | 255 | One Touch Locking On |
| 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 3 | 10 | 5 | From | To | Description |
|---|
3 | 10 | Times |
| 5 | Language | Set the lock language. Default is 1= English | 0 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
2 | 2 | Spanish Language | 3 | 3 | French Language | 1 | 1 | English Language |
| 8 | Operating Mode | This sets the operating mode for the lock.
| 0 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
1 | 1 | Vacation Mode (Keypad Locked Out) | 2 | 2 | Privacy Mode (Keypad Locked, RF Unlock Functional) | 0 | 0 | Normal Mode (Default) | 3 | 3 | passage mode, Lock is permanently unlocked. |
| 2 | Auto Relock On/Off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
255 | 255 | Auto Relock On | 0 | 0 | Auto Relock Off |
| 23 | Lock Body Alarms Mask | Each bit controls one alarm. 1 = alarm enabled, 0 =
alarm disabled.
0xFF = All Alarms on, Default is 0xFF.
Bit 0: DPS Alarm (AX) (Duplicate of parameter 19.
Values should be tied together)
Bit 1: Deadbolt Alarm
Bit 2: Lever Rotated (Rx)
Bit 3 – 7: Not Used
| 0 | 1 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 0 | No Sensor Alarm | 255 | 255 | All Sensors Alarm |
| 1 | Silent Mode on/off | Level control, 1 = High Volume, 2 = Low Volume, 3 = Silent. Default is 1 or High Volume | 0 | 1 | 0 | 3 | 1 | | 3 | Auto Relock Time | 1 to 180 seconds default is 3 seconds | 0 | 1 | 3 | 180 | 3 | From | To | Description |
|---|
3 | 180 | Seconds |
| 7 | Shut Down Time (after wrong code entries) | 10 to 127 seconds default is 60 seconds | 0 | 1 | 10 | 127 | 60 | From | To | Description |
|---|
10 | 127 | Seconds |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 1 key followed by the gear key. | 2 | Classic Exclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 3 key followed by the gear key. | 4 | Wake-Up Procedure | Touch the touchscreen with three fingers | 5 | Factory Reset Procedure | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Remove the inside lever with the lever removal tool.
2. Remove battery cover using hex wrench provided with lock.
3. Remove four (4) AA batteries.
4. Remove the 10-32 x 3/4"" pan head screw from the center of the battery housing into the barrel nut of the outside assembly.
5. Remove inside escutcheon. Cables may stay connected.
6. Reinstall batteries
7. On the back of the PC board, push and hold the Reset Button with the lever removal tool for 3 seconds.
8. While continuing the press the reset button, temporarily remove one AA battery.
9. Reinstall the battery
10. Release reset button and wait 15 seconds. Speaker will announce ""Welcome to Yale""
11. Reassemble escutcheon |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
