Certification Number | ZC10-16095224 |
|---|

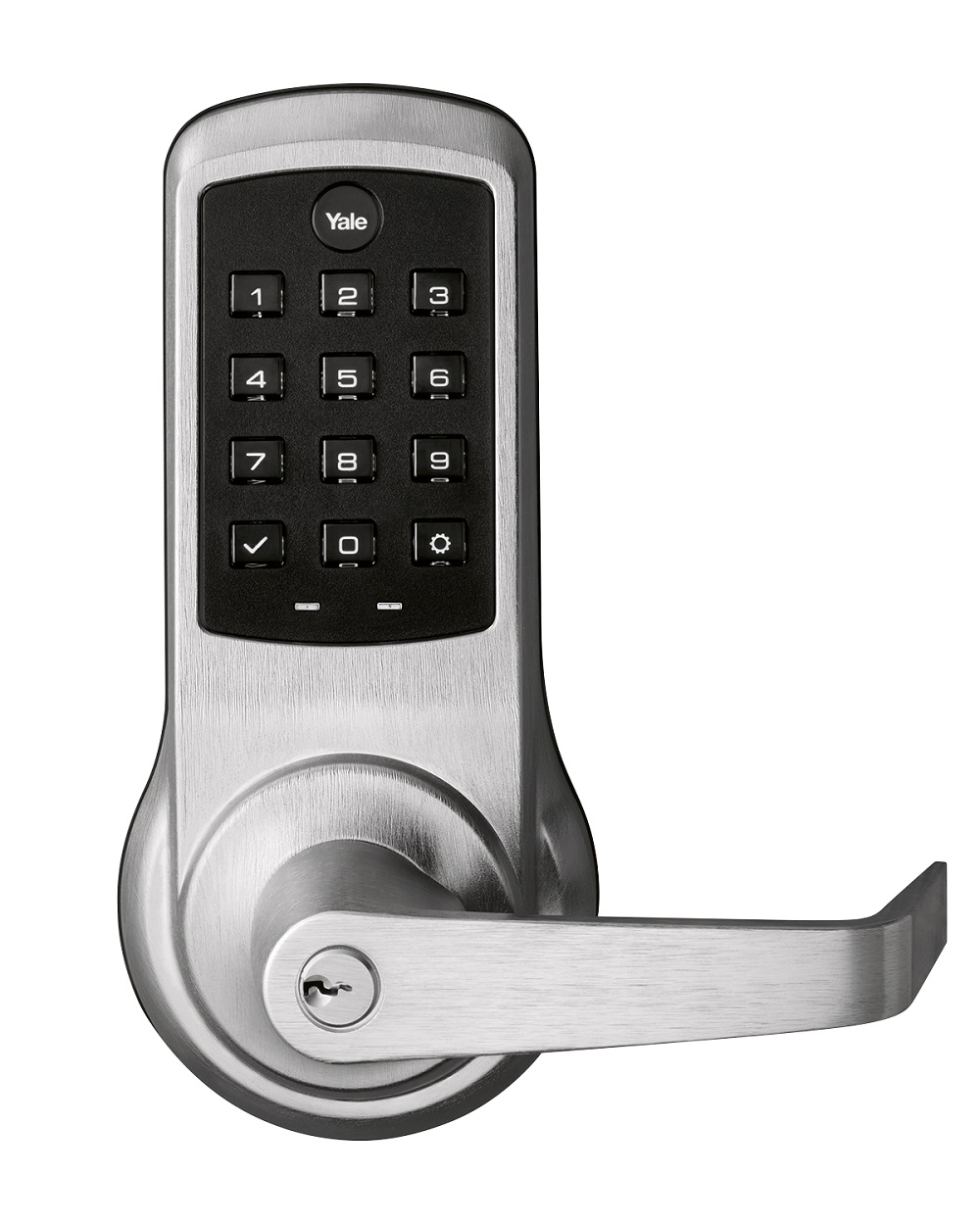

Name | nexTouch Wireless Push Button with Z-Wave |
|---|
Short Description | nexTouch is a commercial Grade 1 lever lock designed for small business applications. Integrate nexTouch into your new or existing Z-Wave automation or alarm system. |
|---|
Long Description | Yale nexTouch™ provides small business owners a wireless access management solution with the security of commercial grade locks and the convenience and cost-efficiency of wireless installation. The nexTouch product is a keypad access lock designed to meet most small business applications, both interior and exterior. The lock can be paired with a Z-Wave system for easy integration into new and existing alarm and automation platforms.
Yale nexTouch offers many benefits for the small business owner, including easy management of employee access rights and attendance, seeing to unattended deliveries, monitoring of business hours, managing remote locations, and increased security. Lock features may vary based on the chosen integration system, but typically include accommodation of up to 500 users, real-time notifications, audit trail, scheduling of access rights and remote access. To meet small business security needs Yale nexTouch locks are ANSI/BHMA Grade 1 certified, UL listed for use on fire doors and windstorm listed. The product is designed for standard commercial doors, ideal for employee, delivery or back entrances. The lock is available with a backlit push button or touchscreen keypad, the latter offering low battery and tamper alarm indicators on the device. |
|---|
Brand | Yale Locks & Hardware |
|---|
Product Identifier | NTB610-ZW2 |
|---|
OEM Version | HW: 255 FW: 1.67:15.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0129 |
|---|
Product Type ID | 0x8001 |
|---|
Product ID | 0x0B00 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TIME_PARAMETERS | Time Parameters | 0x8B | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TIME_V2 | Time V2 | 0x8A | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_DOOR_LOCK_LOGGING | Door Lock Logging | 0x4C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 | COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 | Schedule Entry Lock V3 | 0x4E | 3 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Door Lock Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| IP (Ingress Protection) Rated | | Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Silent Mode on/off | Level control, 1, 2, 3 default is 1. Levels are 1 and 3 for models with no spoken prompts default is 1 or high | 0 | 1 | 0 | 0 | 1 | | 2 | Auto Relock On/Off | 0x00 = OFF, 0xFF = ON default is 0x00 or OFF | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Auto Relock Off | -128 | -128 | Auto Relock On |
| 3 | Auto Relock Time | 10 to 127 seconds default is 5 seconds | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
10 | 127 | Seconds |
| 4 | Wrong Code Entry Limit | 3 to 10 default is 5 times | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
3 | 10 | Times |
| 5 | Language | Set the lock language. Default is 1= English | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | English Language | 2 | 2 | Spanish Language | 3 | 3 | French Language |
| 7 | Shut Down Time (after wrong code entries) | 10 to 127 seconds default is 60 seconds | 0 | 1 | 0 | 0 | 60 | From | To | Description |
|---|
10 | 127 | Seconds |
| 8 | Operating Mode | This sets the operating mode for the lock. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Normal Mode (Default) | 1 | 1 | Vacation Mode (Keypad Locked Out) | 2 | 2 | Privacy Mode (Keypad Locked, RF Unlock Functional) |
| 11 | One Touch Locking | 0x00 = OFF, 0xFF = ON default is 0xFF or ON. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | One Touch Locking Off | -128 | -128 | One Touch Locking On |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 1 key followed by the gear key. | 2 | Exclusion | 1. Enter the 4-8 digit master PIN code followed by the gear key.
2. Press the 7 key followed by the gear key.
3. Press the 3 key followed by the gear key. | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Remove the inside lever with the lever removal tool.
2. Remove battery cover using hex wrench provided with lock.
3. Remove four (4) AA batteries.
4. Remove the 10-32 x 3/4"" pan head screw from the center of the battery housing into the barrel nut of the outside assembly.
5. Remove inside escutcheon. Cables may stay connected.
6. Reinstall batteries
7. On the back of the PC board, push and hold the Reset Button with the lever removal tool for 3 seconds.
8. While continuing the press the reset button, temporarily remove one AA battery.
9. Reinstall the battery
10. Release reset button and wait 15 seconds. Speaker will announce ""Welcome to Yale""
11. Reassemble escutcheon |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
