Product Recognition | |
|---|
Certification Number | ZC10-17115857 |
|---|
Name | ON/OFF PLUG |
|---|
Short Description | Everspring AN186 - On/Off Plug |
|---|

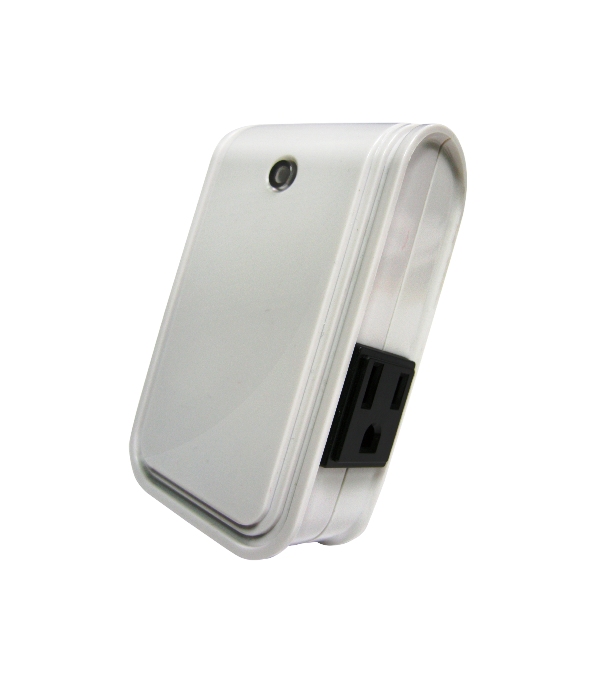

Long Description | The AN186 On/Off Plug is a Z-Wave Plus enabled device with S2 security function and is fully compatible with any Z-Wave enabled network. The device can be set up in a Z-wave network to communicate directly with other end devices such as PIR motion detector, or to report directly to a Z-wave controller.
This On/Off Plug module is designed to control the on/off status of lighting and appliances in the home. Remote On/Off control of the connected load is possible even when paired with other manufacturer’s Wireless Controller. Each module is also designed to act as a repeater to re-transmit RF signal to ensure that it is received by its intended destination by routing the signal around obstacles and radio dead spots. |
|---|
Brand | Everspring |
|---|
Product Identifier | AN186-1 |
|---|
OEM Version | HW: 1 FW: 1.00:00.05 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0060 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x000C |
|---|
User Icon | 0x0701 |
|---|
Installer Icon | 0x0701 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Switch Load Capacity Watts | | Supported Notification Types | | Switch Load Capacity Volt-Ampere | | Communications Connections | | Electric Load Type | | Sensors | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association with 1node. | 2 | 4 | 0 | Association with 4 nodes (i.e. end devices such as detectors or other lighting switches).This allows the On/Off module to receive commands directly from these end devices without the participation of the controller. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Remember | 1: remember (0: do not remember) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 1: remember (0: do not remember) |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Put the Z-Wave Controller into Inclusion mode.
2. Press the On/Off knob 3 times within 1.5 seconds to put the unit into Inclusion mode. | 2 | Exclusion | 1. Put the Z-Wave Controller into Exclusion mode.
2. Press the On/Off knob 3 times within 1.5 seconds to put the unit into Exclusion mode. | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Press the On/Off knob 3 times within 1.5 seconds to put the unit into exclusion mode.
2. Within 1 second of step 1, press and hold the knob for 5 seconds.
3. Node ID is deleted. The device reverts to factory default state. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Power |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
