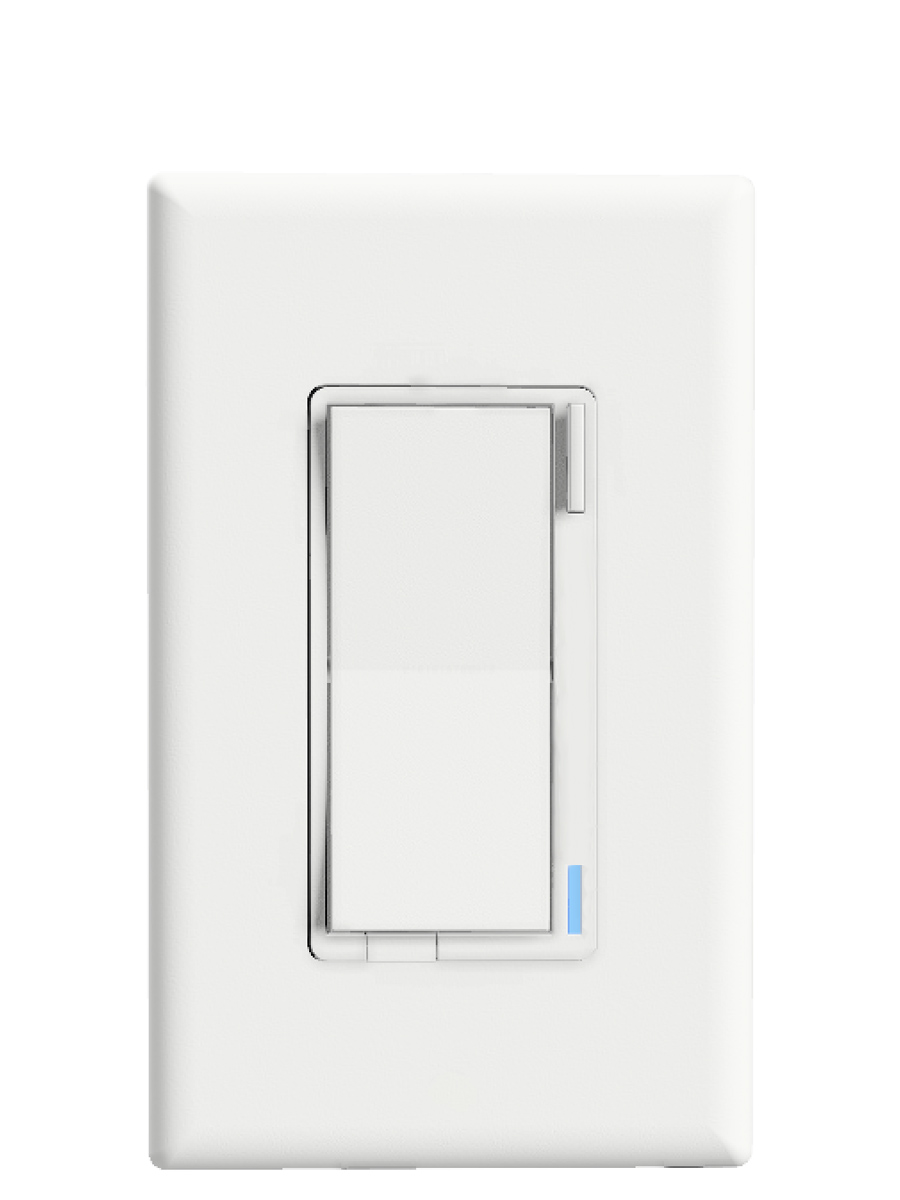

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product or Owner's Manual

Switch Load Capacity Watts

Firmware Updatable

1

5

0

1. Basic Report 2. Device Reset Locally 3. Protection Report

2

5

0

Basic Set

2

Invert Switch

Inverts the switch (Tap Down = On, Tap Up = Off). Example of how the values work: 0 = Disabled, 1 = Enabled. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

5

LED Indicator Color

This will set the default color of the LED Bar. This is calculated by using a hue color circle (Value / 255 * 360). See website for more info. This parameter can be set without a HUB from the Configuration Button.

0

2

0

0

170

6

LED Indicator Intensity

This will set the intensity of the LED bar (ie: how bright it is). Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

5

7

LED Indicator Intensity (When Off)

This is the intensity of the LED bar when the switch is off. Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

1

8

LED Strip Effect

This will allow you to add some sweet effects to your LED bar (ie: pulse, chase, solid, etc). Example of how the values work: Byte 1 = Choose Color, Byte 2 = Choose Brightness Level, Byte 3 = Choose Effect, Byte 4 = Duration. Please see website for further instructions on how to set this up as the possible values are a matrix. You start with Byte 1 to select the color, then move to Byte 2 to select the Brightness Level, then move to Byte 3 to choose the Effect, and finally move to Byte 4 to choose the Duration.

0

4

0

0

0

1

Power On State

When power is restored, the switch reverts to either On, Off, or Last Level. Example of how the values work: 0 = Off, 1-100 = Specific % On, 101 = Returns to Level before Power Outage. This parameter can be set without a HUB from the Configuration Button.

0

1

0

0

0

3

Auto Off Timer

Automatically turns the switch off after x amount of seconds. Example of how the values work: 0 = Disabled, 1 = 1 second, 32767 = 32767 seconds.

0

2

0

0

0

1

Inclusion

To include your switch, start the inclusion process on your HUB and tap the Configuration Button three (3) times. Please Note: If this doesn't work, you can check to see if your switch is within Z-Wave Range by holding down the Configuration Button for 5-10 seconds (if it's not within range, the LED Bar will indicate Red and if it is within Range, the LED Bar will indicate Green). If your switch indicates Red, please move the switch closer to the HUB. If your switch indicates Green, please try running an Exclusion to reset your switch.

2

Exclusion

To Exclude your switch, put your HUB in exclusion mode and press the Configuration Button three (3) times.

5

Factory Reset

You may factory reset the switch by holding down the Config Button for twenty (20) or more seconds. The LED Bar will turn Red and blink three (3) times to confirm. However, we recommend using a certified Z-Wave controller to remove the device from your network for factory resetting the switch. Only use either of these procedures in the event that the network primary controller is missing or otherwise inoperable.

6

Additional Special Features

Configuration/Favorites Button: This switch allows for ultimate customization via the Configuration Button (rather than via a Z-Wave HUB) such as the power on state, LED Indicator Color, LED Indicator Intensity, and LED Indicator Intensity (When Off). OTA (Over-the-Air) Enabled: As with all our devices, the switch allows you to receive our latest firmware updates (NOTE: Please make sure your HUB supports this).
