Product Recognition

Certification Number

ZC10-19096757

Name

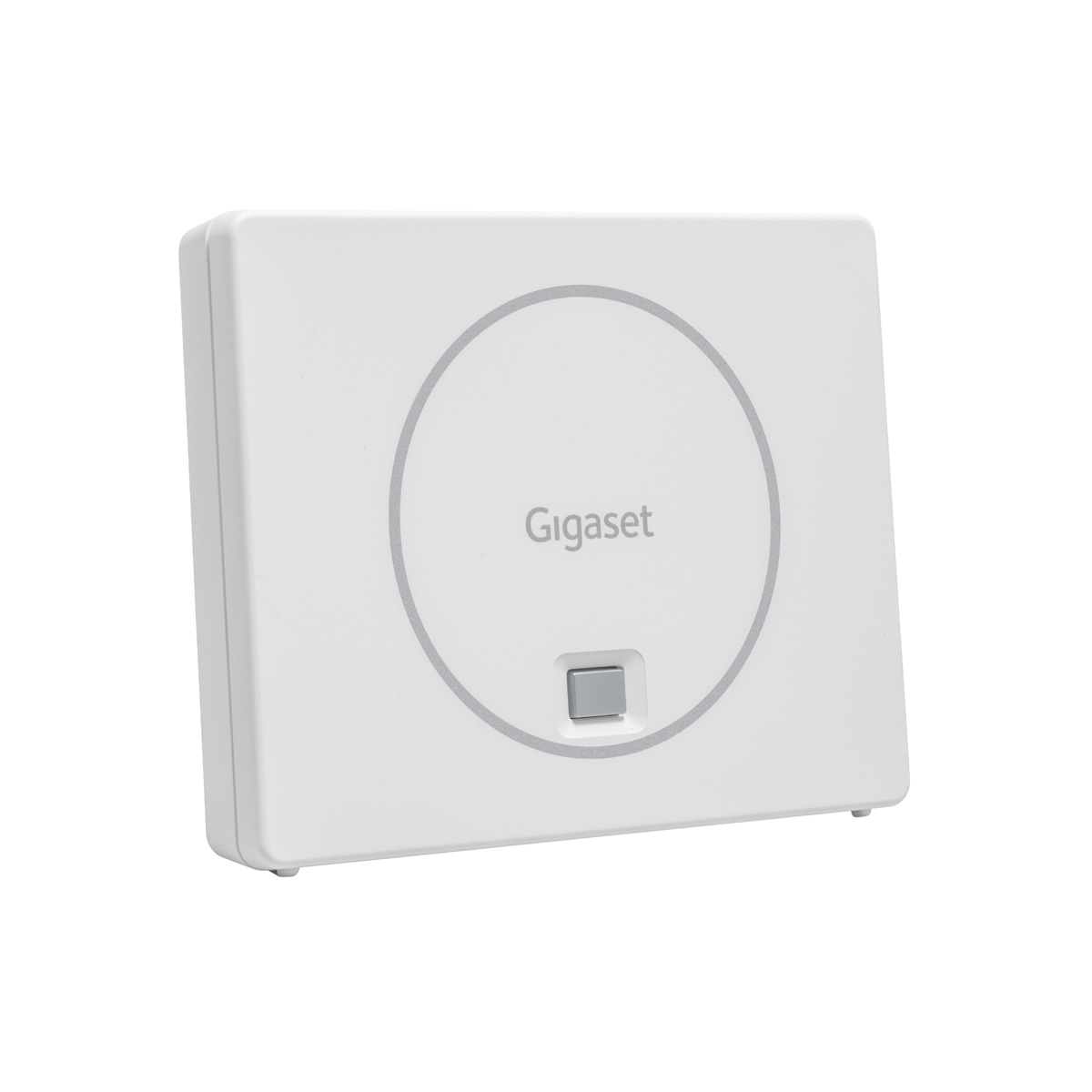

ONE X5100

Short Description

Gigaset ONE X5100 supports three Home Control groups HC8, HC9 and HC10. The device is configurable via LAN.

Long Description

Gigaset ONE X5100 is a tiny, nice and high performing Z-Wave controller which supports three Home Control groups – HC8, HC9 and HC10. It belongs to the latest generation of Gigaset base stations, which means that it is equipped with CAT-iq and thus supports Gigaset Universal Handsets (HX) via Voice of IP. In addition, Gigaset ONE X5100 must be configured via a LAN interface and can therefore also communicate with the Gigaset Cloud. In this way it is possible to link Gigaset ONE X5100 with an Gigaset account that already contains a Gigaset base. As a result it is possible to create exiting smart home scenarios with Gigaset sensors and Z-Wave sensors.

Brand

Gigaset

Product Identifier

S30851-S2563-R101

OEM Version

HW: 1 FW: 6.04:02.81:01.00:01.00

Hardware Platform

ZM5202

Z-Wave Version

6.81.03

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0432

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_NODE_PROVISIONING	Node Provisioning	0x78	1
COMMAND_CLASS_SOUND_SWITCH	Sound Switch	0x79	1
COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE_V2	Network Management Installation and Maintenance V2	0x67	2
COMMAND_CLASS_SENSOR_ALARM	Sensor Alarm	0x9C	1
COMMAND_CLASS_SWITCH_BINARY_V2	Switch Binary V2	0x25	2
COMMAND_CLASS_NODE_NAMING	Node Naming	0x77	1
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4	Thermostat Fan Mode V4	0x44	4
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_USER_CODE	User Code	0x63	1
COMMAND_CLASS_ZIP_V3	Z/IP V3	0x23	3
COMMAND_CLASS_ZIP_PORTAL	Z/IP Portal	0x61	1
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi-Channel Association V3	0x8E	3
COMMAND_CLASS_BATTERY	Battery	0x80	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_SENSOR_BINARY_V2	Sensor Binary V2	0x30	2
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_ZIP_ND	Z/IP-ND	0x58	1
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_BARRIER_OPERATOR	Barrier Operator	0x66	1
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_METER_V3	Meter V3	0x32	3
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Switch Multilevel V4	0x26	4
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information V3	0x59	3
COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION_VERSION_3	Network Management Inclusion V3	0x34	0
COMMAND_CLASS_NETWORK_MANAGEMENT_PROXY_V2	Network Management Proxy V2	0x52	2
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_DOOR_LOCK_V3	Door Lock V3	0x62	3
COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC_V2	Network Management Basic V2	0x4D	2
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Sensor Multilevel V11	0x31	11
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_ZIP_GATEWAY	Z/IP Gateway	0x5F	1
COMMAND_CLASS_WINDOW_COVERING	Window Covering	0x6A	1
COMMAND_CLASS_SECURITY_2	Security S2	0x9F	1
COMMAND_CLASS_SUPERVISION	Supervision	0x6C	1
COMMAND_CLASS_CONFIGURATION_V2	Configuration V2	0x70	2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
2	Classic Exclusion	- Enter the Z-Wave Portal - Choose MORE, then MAINTANACE and then REMOVE DEVICE - Now start the removing procedure of your Z-Wave device according to its manual
24	Controller Classic Exclusion	To remove node from your Z-Wave network, you need to start your browser and log in to the web interface of the controller (Z-Ware Portal). Then click on "MORE", "MAINTANANCE" and "REMOVE DEVICE". Then start the exclusion procedure on the node according to it's manual.
5	Factory Reset Procedure	- Enter the Z-Wave Portal - Tab on MORE, then MAINTANACE and then RESET - Confirm Reset by choosing CONFIRM and after couple of seconds the Reset is finished
4	Wake-Up Procedure	N/A
1	Classic Inclusion	- Enter the Z-Wave Portal - From the menu choose DEVICES and then + ADD DEVICE - Now start the inclusion procedure of your Z-Wave device according to its manual
23	Controller Classic Inclusion	To add new node (e.g. sensor) to your Z-Wave network, you need to start your browser and log in to the web interface of the controller (Z-Ware Portal). Then click on "DEVICES" and click on "+ ADD DEVICE". Then start the inclusion procedure on the node according to it's manual. There's also other place in Z-Ware Portal where you can add a new node - "MORE" / "MAINTANANCE" and the click on "ADD DEVICE".
3	Controller Learn Mode	You can start the learn mode by assesing the web interface (Z-Wave Portal) and after logging in click on "MORE", "MAINTANANCE" and "SET LEARN MODE".
8	Where to find S2 DSK on product	If your Gigaset ONE X5100 has no sensors added (e.g. it has been just reset to factory settings) you can set the LEARN MODE and read DSK (Device Specific Key). To do that: - Enter the Z-Wave Portal - From the menu choose MORE and MAINTANANCE and select SET LEARN MODE The LEARN MODE is active, the DSK will be displayed in the popup after couple of seconds.
6	Other Special Features	The product is not limited strictly to Smart Home solutions, but also includes CAT iq based telephony functionalities from Gigaset. This makes it possible to connect Gigaset's Universal Handsets to the Gigaset ONE X5100 in addition to registering smart home devices.

Supported / Controlled Meter Types

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
