Product Recognition

Certification Number

ZC12-21010164

Name

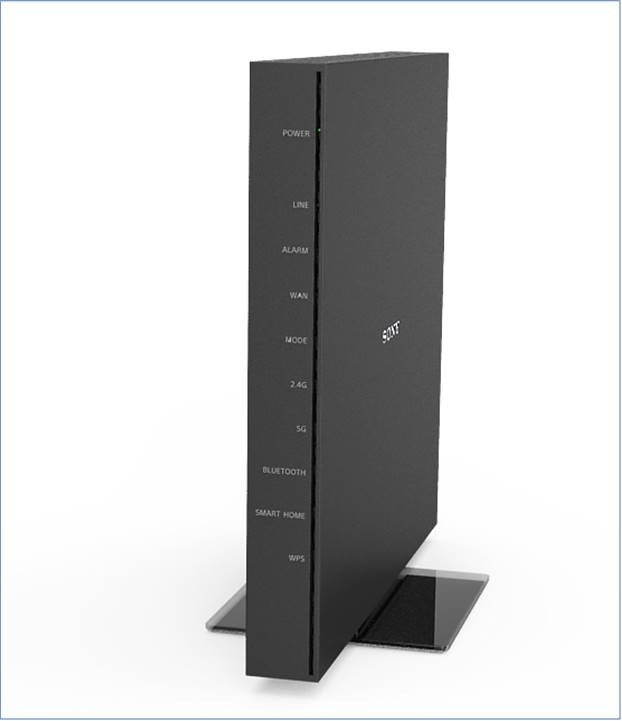

ONU Integrated Service Router

Short Description

This product is an ONU Integrated Service Router for NURO.

Long Description

The current product is a home gateway device. IoT devices such as sensors are connected and can be controlled with this device. This device supports various interfaces for the functionalities of Wireless LAN, Bluetooth, Z-Wave. The device can collect sensing data from various Z-Wave sensor devices, and uploading of the data to a cloud server by PON interface is available. The ONU Integrated Service Router has the following general features: - 4 LAN Ports - Wireless LAN interface - Z-Wave communication - Bluetooth communication

Brand

SONY Network Communications inc.

Product Identifier

NSD-G3000T

Product Line

ONU

OEM Version

HW: 1 FW: 7.13:07.13

Hardware Platform

ZGM130

Z-Wave Version

7.13.2

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0402

Product Type ID

0x0003

Product ID

0x0002

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

JP: 922.50MHz, 923.90MHz, 926.30MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

Japan

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Association Groups

Texts

ID	Description	Value
1	Classic Inclusion	To add a device to the Z-Wave network, press the “Inclusion” button in the Android Controller Application.
2	Classic Exclusion	To remove a device from the Z-Wave network, press the “Exclusion” button in the Android Controller Application.
8	Where to find S2 DSK on product	As the camera starts, hold it over the QR code. Register or Unregister the DSK when you correctly hold the camera over a QR code on product label. (Full DSK is printed on a gift box) QR code is on a product label in a PON Cover. Since the QR code is written on the inside of the PON cover, it is protected from the wonders of rubbing and dirt.
5	Factory Reset Procedure	Press “RESET” in the Factory Default Reset dialog. This will reset the Z- Wave chip, and the gateway will show “DEVICE RESET LOCALLY NOTIFICATION” after the restart.
11	Controller SmartStart Inclusion	Press “Add” to display the camera screen. As the camera starts, hold it over the QR code. Register the DSK when you correctly hold the camera over a QR code on the product label.
23	Controller Classic Inclusion	To add a device to the Z-Wave network, press the “Inclusion” button in the Android Controller Application.
24	Controller Classic Exclusion	To remove a device from the Z-Wave network, press the “Exclusion” button in the Android Controller Application.
3	Controller Learn Mode	To add an IoT gateway into another Z-Wave network as a secondary controller or inclusion controller, press “Learn Mode Classic” or “Learn Mode NWI” in the Settings dialog.
10	Controller Replication	In the event that the gateway is already the controller of the Z-Wave network, put the gateway into Inclusion Mode, and put another controller into the Learn Mode. The Replication will begin and network information will be sent to another controller. In the event that the gateway is integrated into an existing Z-Wave network, put the gateway into Learn Mode, and put the existing controller into Inclusion Mode. The Replication will begin and network information will be received from the existing controller.
25	Controller Provisioning List	Access When tapping the Setting button, a Settings dialog will be displayed. Show Provisioning List Edit Display the registered provisioning list (DSK and inclusion status). Press an item in the list to delete it.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
