Product Recognition | |
|---|
Certification Number | ZC12-19090010 |
|---|

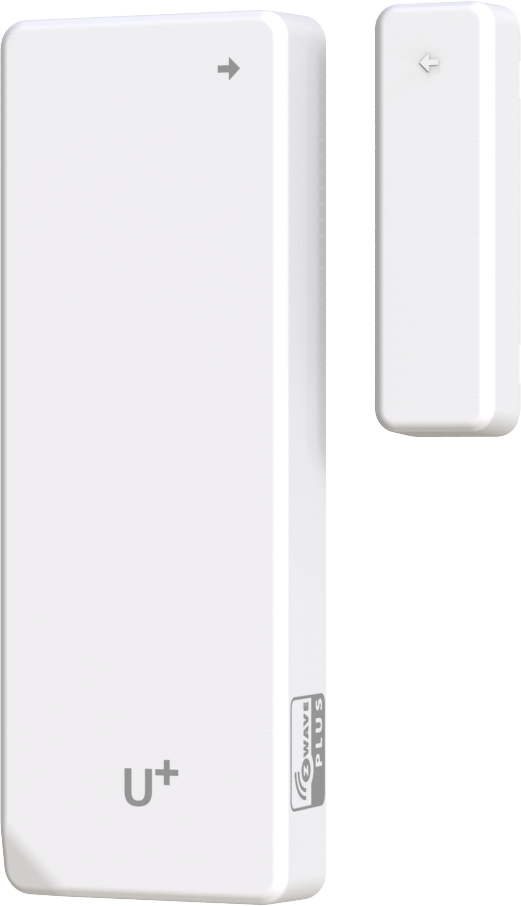

Name | Open Sensor |
|---|
Short Description | Detecting the status of Door/Windows. |
|---|
Long Description | Remote Access via smart phone APP
Detecting the status of Door/Windows equipped with Z-WAVE Open Sensor and notifying the status to a customer.
Checking the battery usage and reporting the low battery alarm. |
|---|
Brand | LG U+ |
|---|
Product Identifier | osr-02 |
|---|
Product Line | Z-Wave Plus v2 Slave Devices |
|---|
OEM Version | HW: 1 FW: 39.16 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.11.1 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x022C |
|---|
Product Type ID | 0x0060 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Battery Period | Battery Report Period Value | 1 | 1 | 1 | 127 | 24 | From | To | Description |
|---|
1 | 127 | Battery Report Period Value |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | QR code and PIN code is located above the battery insertion position.
Please refer to Section 17 of the manual | 2 | Classic Exclusion | a. Receiver will stay exclusion waiting mode.
b. Press & hold Inclusion/Exclusion button for 5 seconds when Door Sensor is Inclusion status.
c. LED of Door sensor will be on 5 seconds later.
d. Door sensor will try Exclusion when button is released.
e. LED will blink 3 times with 250ms interval if Exclusion is successful. | 4 | Wake-Up Procedure | a. Device sends Wake up Notification by every 15 minutes(default).
b. Devices also sends Wake up Notification when inclusion/exclusion button is shortly pressed(200ms~1sec) regardless of 15minutes interval. | 1 | Classic Inclusion | a. Press & hold Inclusion/Exclusion button for 5 seconds when Door Sensor is exclusion status.
b. LED of Door sensor will be on 5 seconds later.
c. Door sensor will try Inclusion for 30sec when button is released.
d. LED will blink 3 times with 250ms interval if Inclusion is successful. | 5 | Factory Reset Procedure | a. Press & hold Inclusion/Exclusion button for 10sec.
b. LED will blink while holding the button.
c. Factory reset will be done in 5sec after releasing button and LED will blink 5 times with 100ms interval.
* Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Other Special Features | * Configuration Parameters
a. Parameter Number : Battery Period (0x01).
b. Description of parameter and its effect on the product : Battery Report Period Value
c. Default value : 0x18
d. Size (Number of bytes) : 1 Byte
e. Possible Values : 0x01 ~ 0xFF |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Door state: Window/door is open | Access Control | Door state: Window/door is closed |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
