Product Recognition | |
|---|
Certification Number | ZC10-18086202 |
|---|

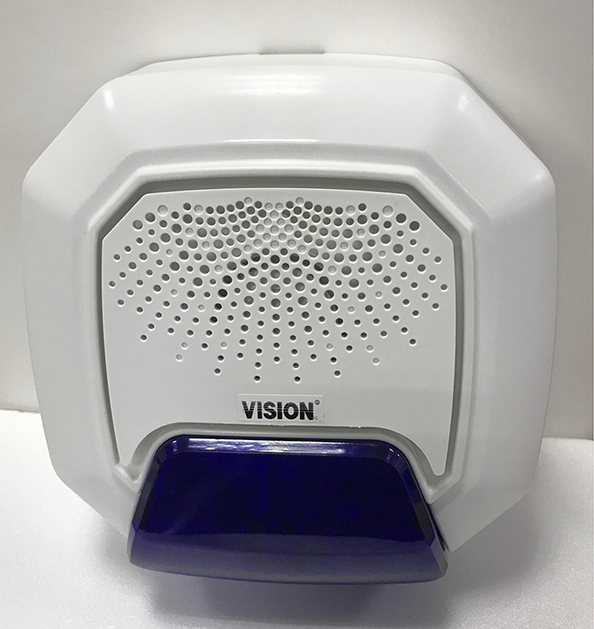

Name | Outdoor Siren |
|---|
Short Description | Wireless siren will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network. |
|---|
Long Description | Features:
*Loud audible alarm>115dB@30cm
*LED strobe lighting
*Low battery detection
*Siren for Battery Back-Up
*100ft line of sight
*LED Status Indicator
*Operating temp: -15oC~60oC
*Working Voltage: 6V
*Dimensions: 116*77*40mm |
|---|
Brand | Vision |
|---|
Product Identifier | ZM1621BR-5 |
|---|
OEM Version | HW: 3 FW: 24.07:05.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0109 |
|---|
Product Type ID | 0x2005 |
|---|
Product ID | 0x0518 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | Brazil |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Siren/Strobe mode | User can change value from 0 to 2 to turn either Siren sound, Strobe light, or both when triggered. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Siren Only | 2 | 2 | Strobe Only | 0 | 0 | All Enable - Default |
| 2 | Alarm Auto Stop Time | User can change the duration of siren time when triggered. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | 30 seconds - Default | 1 | 1 | 60 seconds | 2 | 2 | 120 seconds | 3 | 3 | Will Not Automatically Stop |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | ZM 1621 will reset to factory default when the device has been excluded.
(Please use this procedure only in the event that your network primary controllers is missing or otherwise inoperable!) | 4 | Device Wake-Up | removing the back cover of the ZM1621 to get into “Awake” mode | 6 | Additional Special Features | 1. Support OTA firmware update from controller
2. Support Explorer Frame function | 2 | Exclusion | For “Exclusion” in (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to remove the ZM 1621 from your controller. ZM1621-5 will send NWE if the exclusion could not be done successfully.
Note:
a. LED light will flash continuously in Exclusion condition.
b. All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. | 1 | Inclusion | For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZM 1621 to your controller. To get in the “inclusion” mode, get magnet of the bracket to touch the reed switch on the ZM1621 and separate at once to be included. After setting, the LED Light should go off, if not, please try again. (After sending one time’s Z-Wave NIF and not be included then it will send NWI for auto inclusion. The LED light will flash again if the siren has not been included or the LED light will go off after inclusion.) |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Emergency Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
