Product Recognition
Certification Number	ZC10-15115001

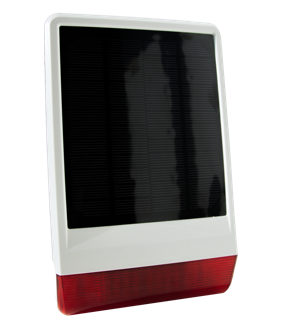

Name	Outdoor Siren
Short Description	Solar Powered Secure Outdoor Siren
Long Description	This device is a siren for Z-Wave security systems. Due to its large solar panel it can be used without any additional power supply or batteries. The siren can be installed on any place on the outside of the house and can be controlled using Z-Wave. This way it extends security systems and calls attention in case of a triggered alarm. The siren issues a very loud sound (105 dBm) and in parallel some stroboscope light. Furthermore the device is self-protecting. Removing the main device from the mounting unit immediately starts the siren and also reports the tamper attempt to the Z-Wave control center. All communication between the Z-Wave controller and the siren is encrypted and secured to protect against manipulation.
Brand	Z-Wave.Me
Product Identifier	005107
OEM Version	HW: 1 FW: 1.01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Siren
Manufacturer ID	0x0115
Product Type ID	0x0004
Product ID	0x0002
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Security Add-Ons
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Manual_Solar-Siren_OEM_En1.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 Temperature Adjustment Temperature correction. The given value changes the displayed temperature by 0.1K 0 1 0 0 0 From To Description 1 127 0.1K -1 -127 - 0.1K 0 0 Disabled 1 Siren Tamper Mode Sets the tamper triggering mode when removed from the holder 0 1 0 0 0 From To Description 0 0 Triggers automatically when it is removed from the holder. Must be turned off, using the button or from the controller 2 2 Does not trigger at all, when removed from the holder. Service Mode 1 1 Triggers automatically when it is removed from the holder and turns off, when placed back on the holder 5 Siren Mode Determines how the Siren shall react on alarm 0 1 0 0 2 From To Description 0 0 Siren Only 1 1 Flash Only 2 2 Flash plus Siren 6 Auto Off If the value is set, the siren will be switched off automatically after a defined alarm time in Minutes. 0 1 0 0 5 From To Description 0 0 No Auto Off 1 127 after X Minutes 3 Send unsolicited Temperature Report Temperature Threshold to send unsolicited Temperature Update 0 1 0 0 10 From To Description 0 127 0.1 K -1 -127 * 0.2 K
Texts	ID Description Value 1 Inclusion 1. Open the case and turn on the power switch 2. Remove the metal mounting plate from the device. 3. Turn your controller into inclusion mode with a short single click on the internal inclusion button. 2 Exclusion Make sure the device is unarmed. Then turn the controller into exclusion mode, open the device and hit the inclusion button once. This removes the device from the network. 5 Factory Reset To reset the device keep the inclusion button pushed for 10 seconds. After 5 seconds the LED starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
