Product Recognition | |
|---|
Certification Number | ZC10-19056511 |
|---|

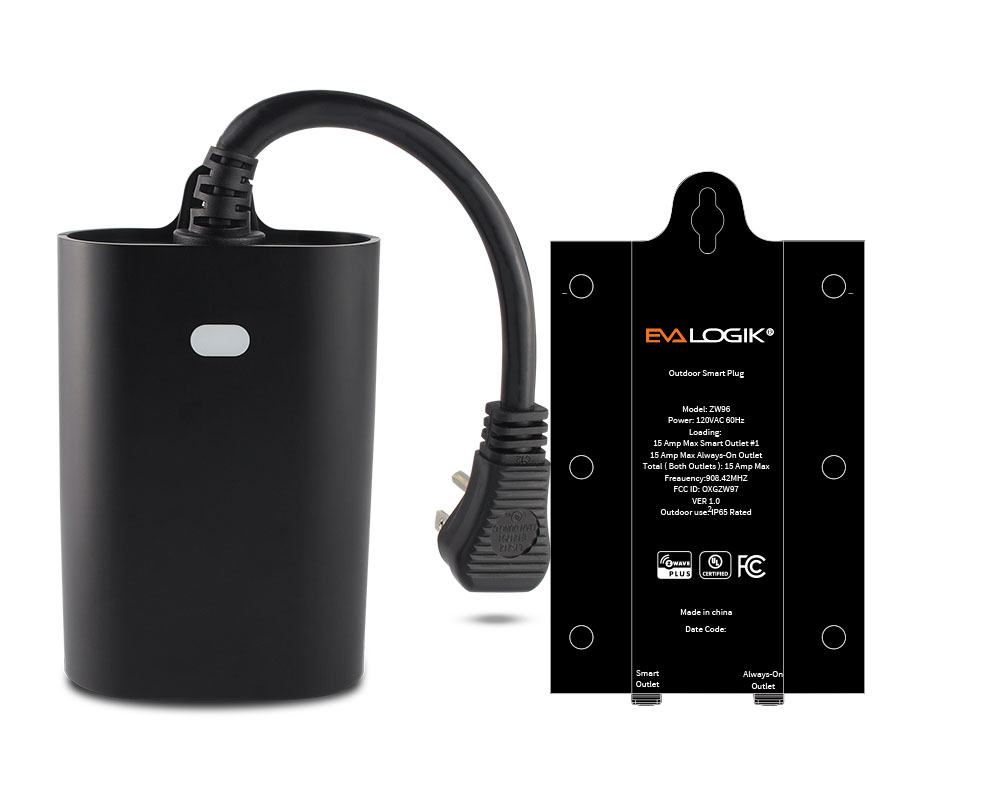

Name | Outdoor Smart Plug - 1 channel |
|---|
Short Description | The smart plug provides one Z-Wave outlet for remote controlled by controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control your device from your mobile phone devices. |
|---|
Long Description | The smart plug provides one Z-Wave outlet for remote controlled by controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control your device from your mobile phone devices. The outlets have maximum load for 960W Incandescent, ½ HP motor or 1800W resistive. |
|---|
Brand | EVA LOGIK |
|---|
Product Identifier | ZW96 |
|---|
OEM Version | HW: 255 FW: 1.255 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xC000 |
|---|
Product ID | 0xC003 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0701 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | Value |
|---|
Incandescent | LED | Inductive (e.g. Motor) |
| Color | | Switch Load Capacity Watts | | Switch Type | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Outdoor Use | | Supported Notification Types | | Switch Load Capacity Volt-Ampere | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | basic set command | 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LED | Status LED Configuration | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | outlet on,led on | 1 | 1 | outlet on ,led off | 2 | 2 | led no work |
| 2 | Timer | The countdown time, the socket closed | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 36000 | The countdown time, the socket closed |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | ---Power off ZW96
---keep holding the PROG button
---Power on,Press and keep holding the PROG button for no less than 10 seconds.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 1 | Inclusion | 1:Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
2:When prompted by your primary controller, click the PROG button five times in one second. | 2 | Exclusion | 1:Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
2:When prompted by your primary controller, click the PROG button five times in one second. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
