Product Recognition | |
|---|
Certification Number | ZC10-19116795 |
|---|

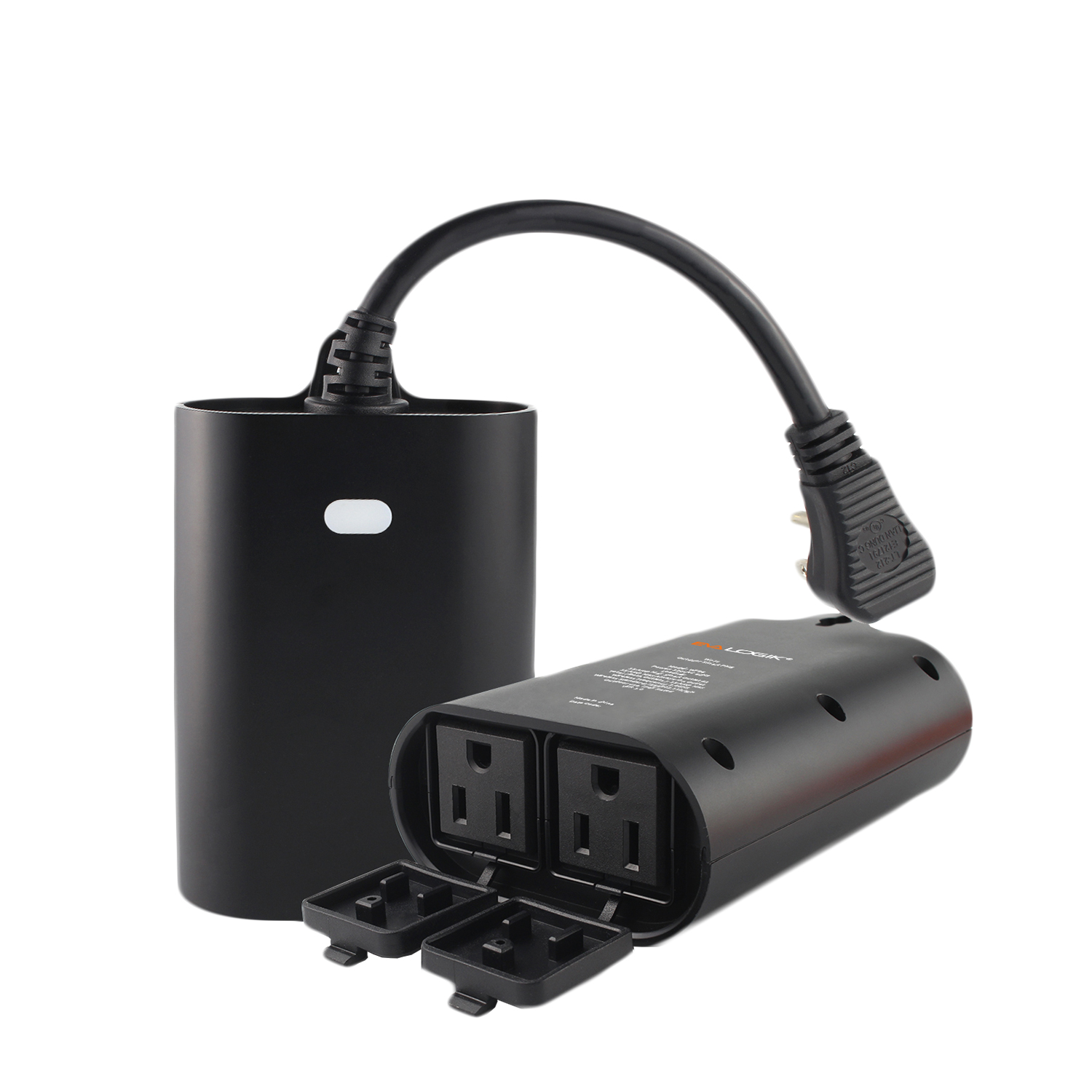

Name | Outdoor Smart Plug - 2 channel |
|---|
Short Description | The ZW97 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal . |
|---|
Long Description | The ZW97 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal .around obstacles and radio dead spots to ensure that the signal is received at its intended destination.ZW97 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product. |
|---|
Brand | EVA LOGIK |
|---|
Product Identifier | ZW97 |
|---|
Product Line | Linen A |
|---|
OEM Version | HW: 255 FW: 1.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xC000 |
|---|
Product ID | 0xC007 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0701 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | LED | Inductive (e.g. Motor) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | z-wave Lifeline | 3 | 5 | 0 | basic set command | basic set command | 2 | 5 | 0 | basic set command | basic set command |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Count Down Configuration | Count Down Configuration(Turn off the output by time） | 1 | 2 | 0 | 32767 | 0 | From | To | Description |
|---|
0 | 32767 | Turn off Endpoint1 outlet |
| 1 | Status LED Configuration | Status LED Configuration | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | outlet on,led on. | 1 | 1 | outlet on,led off. | 2 | 2 | off |
| 3 | Count Down Configuration | Count Down Configuration(Turn off the output by time） | 1 | 2 | 0 | 32767 | 0 | From | To | Description |
|---|
0 | 32767 | Turn off Endpoint2 outlet |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | ADD or Remove the ZW97 from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the PROG button five times in one second. | 2 | Classic Exclusion | ADD or Remove the ZW97 from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the PROG button five times in one second. | 5 | Factory Reset Procedure | MANUAL RESET
---Power off ZW97
---keep holding the PROG button
---Power on,Press and keep holding the PROG button for no less than 10 seconds.
"Please use this procedure only when the network primary controller is missing or otherwise inoperable." |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | Heat sensor status: Overheat detected (location provided) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
