Product Recognition | |
|---|
Certification Number | ZC14-22050107 |
|---|

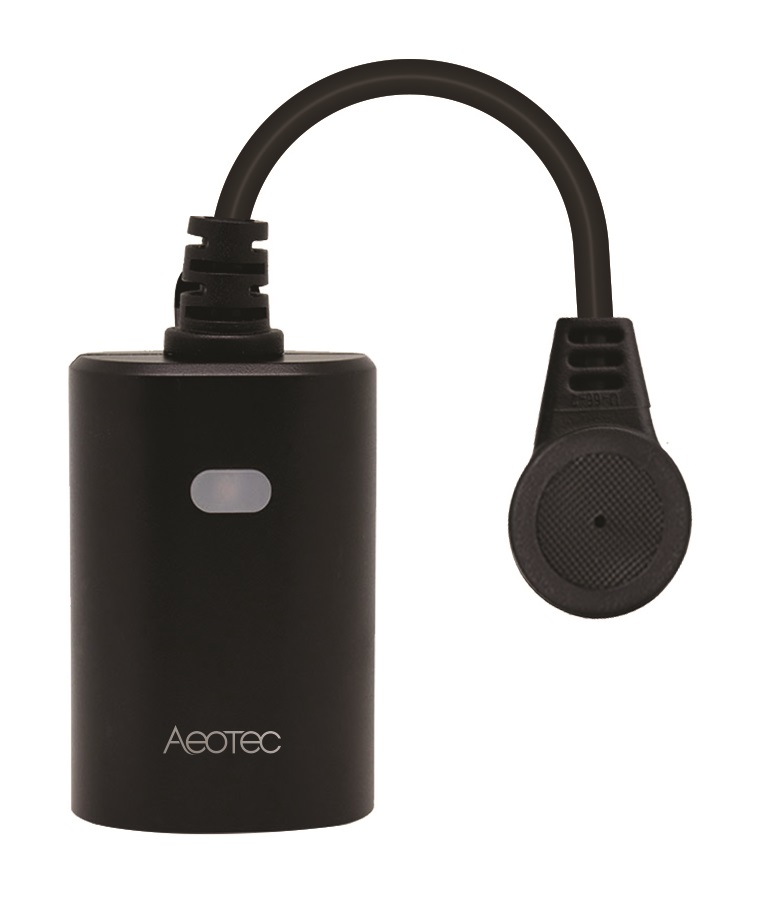

Name | Outdoor Smart Plug |
|---|
Short Description | Aeotec Z-Wave™ Outdoor Smart Plug |
|---|
Long Description | Aeotec Outdoor Smart Plug is a Z-Wave™ Smart plug specifically used to enable Z-Wave command and control (on/off) of any plug-in tool, it can be placed between a wall outlet and electric devices, plugged in by a cord. It can switch all loads up to 15A/ 1800W. The plug switch is IP 65 rated and can, therefore, be used both in dry as well as humid environments in- and outdoor.
The Outdoor Smart Plug is also a security Z-Wave Plus™ device, it supports Security S2 framework, SmartStart inclusion and Over The Air (OTA) firmware upgrade features. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZWA042 |
|---|
Product Line | Z-Wave product line |
|---|
OEM Version | HW: 01 FW: 01.00 |
|---|
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
|---|
Z-Wave Version | 7.16.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0371 |
|---|
Product Type ID | 0x0103 |
|---|
Product ID | 0x002A |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | On/Off Switches/Devices |
|---|
Countries / Regions | Canada, Mexico, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi Channel V4 | 0x60 | 4 | COMMAND_CLASS_SWITCH_COLOR_V3 | Color Switch V3 | 0x33 | 3 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Multilevel Switch V4 | 0x26 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Configuration | 0x2C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_CLOCK | Clock | 0x81 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | Value |
|---|
Incandescent | MLV (Magnetic) | ELV (Electronic) | LED | Dimmable LED | Inductive (e.g. Motor) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Switch Type | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 1 | 0 | 1 | Lifeline | 0x0001 | 1 | 0 | 2 | Lifeline | 0x0001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | Reaction of led | Parameter setting to change the reaction of LED setting. | 1 | 1 | 0 | 0 | 0x02 | 2 | Night led on time | Night Light ON time. | 1 | 4 | 0 | 0 | 0x00180000 | 3 | Night led off time | Night Light OFF time. | 1 | 4 | 0 | 0 | 0x00060000 | 4 | Indicator play duration | Setting indicator play duration. | 1 | 1 | 0 | 0 | 0x00 | 5 | Indicator speed | Select indicator flash speed. | 1 | 1 | 0 | 0 | 0x05 | 7 | Control turn off | Prevents the plug from being turned off via its button. | 1 | 1 | 0 | 0 | 0x00 | 8 | Restore status after power failure | Action in case of power out. | 1 | 1 | 0 | 0 | 0x00 | 31 | Alarm response in device | Enabled by (Alarm settings), and determines what the switch does in the case an alarm is triggered. | 1 | 1 | 0 | 0 | 0x00 | 41 | Auto turn on timer | Auto on after as soon as the switch turns OFF | 1 | 4 | 0 | 0 | 0x00000000 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Page 5 in the UserManual | 1 | Classic Inclusion | Tap the button on device once. | 2 | Classic Exclusion | Tap the button on device twice. | 5 | Factory Reset Procedure | Press and hold the button for 20s.
Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | Heat sensor status: Overheat detected |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
