Product Recognition | |
|---|
Certification Number | ZC10-18015964 |
|---|

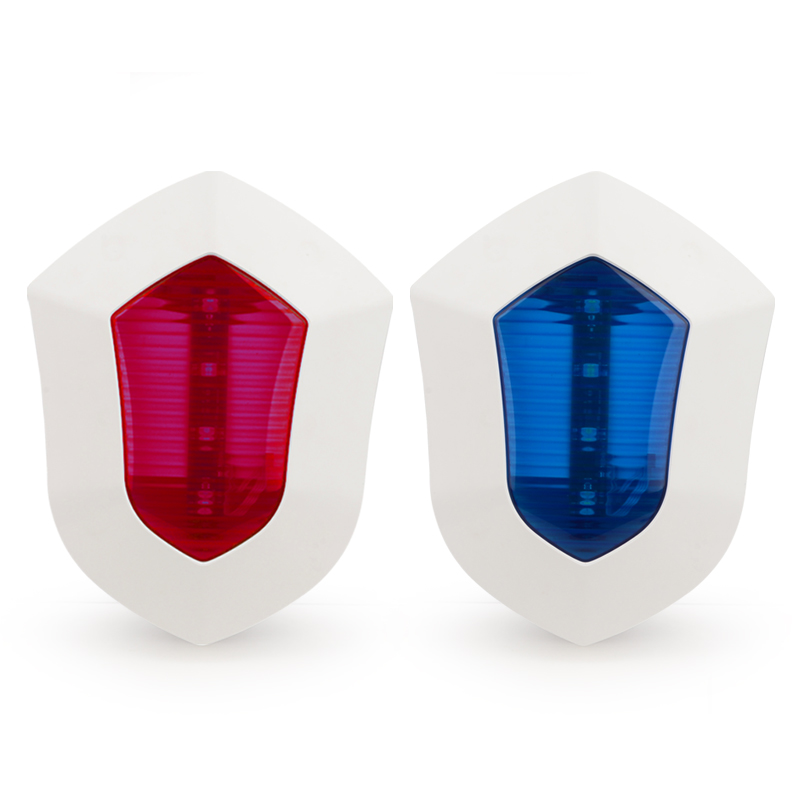

Name | Outdoor Strobe Siren |
|---|
Short Description | Z-Wave wireless outdoor usage waterproof siren |
|---|
Long Description | This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The siren support 110dB alarm sound and light flashing to threaten burglars/intruders. |
|---|
Brand | Golden Security |
|---|
Product Identifier | GS-ZSS08 |
|---|
OEM Version | HW: 19 FW: 1.32 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x033A |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0101 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Outdoor Use | | Battery Type | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline, all nodes which associated in this group will receive the messages sent by device through lifeline. | 2 | 5 | 0 | It is controlling group, all nodes associated in this group will be controlled through BASIC_SET command by the device when device detects a tampering event. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Alarm Sound Selected | This parameter is to set the sound sent by the alarm when giving an alarm and users can choose five different sound sources through this setting. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | default alarm sound | 2 | 6 | to choose different alarm sound |
| 4 | Led Blink Pattern | There have 3 led pattern mode for user selecting. | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 1 | LED will not turn on when there is an alarm. | 2 | 2 | The LED will blink slowly when there is an alarm. | 3 | 3 | The LED will blink rapidly when there is an alarm. |
| 5 | Switch Binary Report Disable | Set this configuration to ‘0’, siren will not send an SWITCH_BINARY_REPORT to controller when an alarm is happed. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | siren will not send an SWITCH_BINARY_REPORT to controller when an alarm is happed. | 1 | 1 | siren will send an SWITCH_BINARY_REPORT to controller when an alarm is happed. |
| 6 | Alarm Disable | This configuration sets siren alarm is enabled or disabled. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | alarm disable, siren will never give an alarm. | 1 | 1 | alarm enable, siren will give an alarm when an alarm event is happened. |
| 7 | Sensor Report Enable | This configuration sets binary sensor report is enabled or disabled. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | disable sensor binary report when device detects a tampering event. | 1 | 1 | enable sensor binary report when device detects a tampering event. |
| 3 | Alarm Duration Time | This parameter can set the duration of the alarm function after activation. Unit of time is: seconds. | 0 | 2 | 0 | 0 | 300 | From | To | Description |
|---|
0 | 0 | Alarm Silenced (No Alarm) | 1 | 32766 | Duration of the alarm in Seconds | 32767 | 32767 | The alarm stays on until shut down by the user. |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1、 Set Z-Wave™ Controller into exclusion mode
2、 Power on the device.
3、 Press the button 3 times within 1.5s
4、 The device will be entered into exclusion mode automatically. | 1 | Inclusion | 1、 Set Z-Wave™ Controller into inclusion mode,
2、 Power on the device.
3、 Press the button 3 times within 1.5s.
4、 The device will be entered into inclusion mode automatically. | 5 | Factory Reset | Note: please use the reset procedure only when the primary controller is missing or inoperable.
Operation as below:
1、 Power on the device.
2、 Keep holding touched the button for 10s until the led turn to red, then release. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | (Refer to parameters): State idle | Siren | Siren status: Siren active | Siren | Unknown event/state |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
