Certification Number | ZC10-17105819 |
|---|
Name | Outlet |
|---|
Short Description | Smart power plug with electrical parameters measure |
|---|

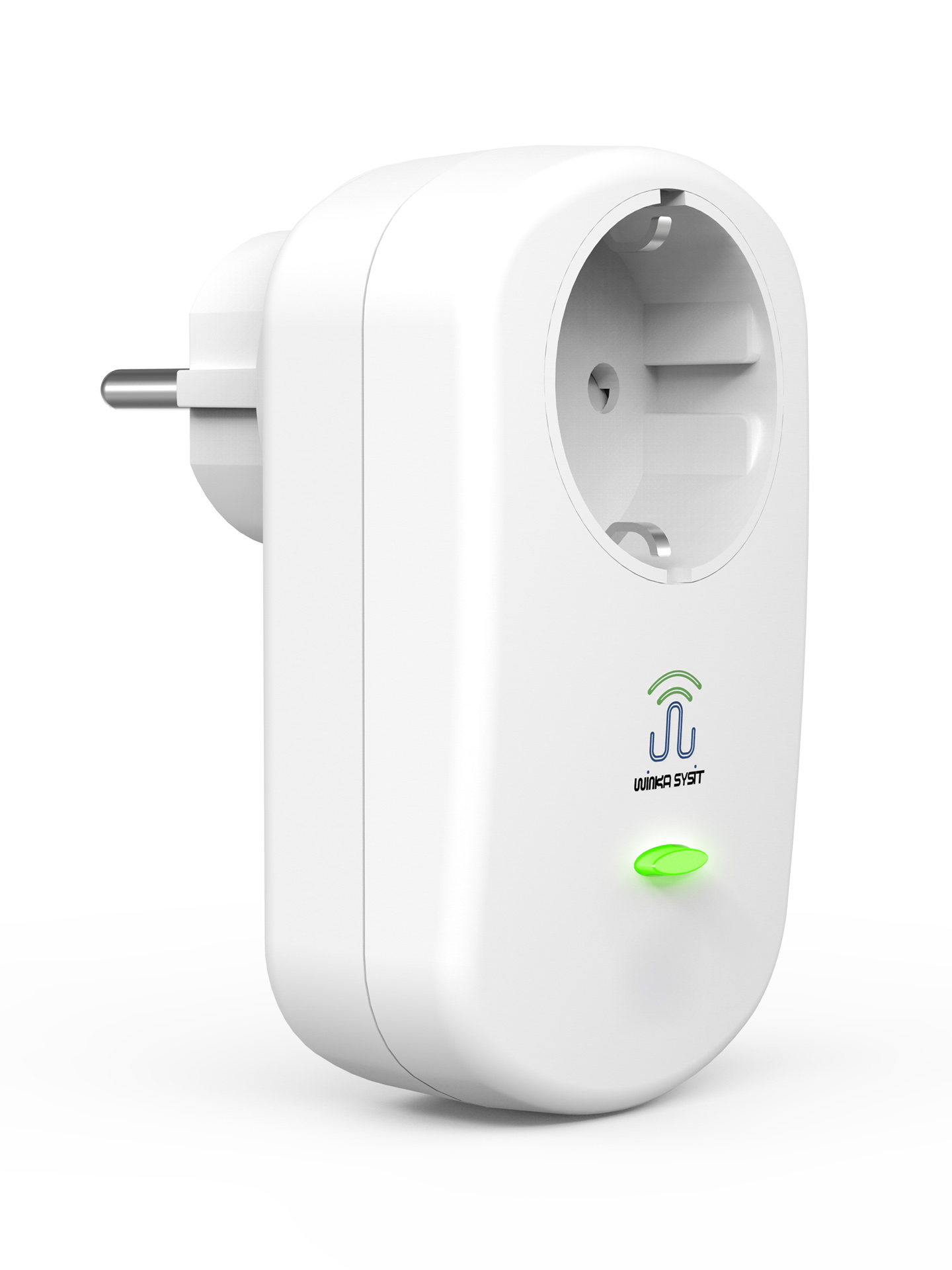

Long Description | This is a smart power plug, function includes Switch, Electrical parameters measure, Over-current protection & timing. Lets you wirelessly control whatever device is plugged into it remotely, from a schedule, or from the outlet iteself. This smart switch has electrical parameters measure, you can see the electricity which your device are using in real time from APP. |
|---|
Brand | WINKA SYSIT |
|---|
Product Identifier | WK-0003 |
|---|
OEM Version | HW: 16 FW: 1.36 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0331 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x1D61 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Energy Meters |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Meter Type | | Supported Notification Types | | Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
3 | 5 | 0 | Power Manager Group. If Over-load is occured, device will send notification report to nodes associated in group 3. Support List as Below:
COMMAND_CLASS_NOTIFICATION, POWERMANAGEMENT STATUS (OVER LOAD) | 2 | 5 | 0 | Control Group, If over-load is occured, the device will send BASIC_SET to nodes associated in group 2. Support Command List as Below:
COMMAND_CLASS_BASIC, BASIC_SET | 1 | 5 | 0 | Lifeline Group, Support Command List as below:
COMMAND_CLASS_SWITCH_BINARY, SWITCH_BINARY_REPORT
COMMAND_CLASS_METER, METER_REPORT
COMMAND_CLASS_NOTIFICATION, NOTIFICATION_REPORT
COMMAND_CLASS_DEVICE_RESET_LOCALLY, DEVICE_RESET_LOCALLY_NOTIFICATION
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
9 | Current changes setting | This parameter sets the change volume of the load current (volatility). When the differences between two measurements of current consumed by the load exceed the value set by this parameter, the outlet will report the last electric quantity detection result automatically to the host, the unit of which is 0.01A. For example, when this parameter is set as 10, then 10×0.01A = 0.1A, which means that all results currently measured will be reported to the outlet automatically (voltage, current, instant power and cumulative power) when the difference between the current measured currently and the current reported last time is greater than 0.1A. | 0 | 2 | 0 | 0 | 50 | From | To | Description |
|---|
1 | 1600 | The current changed value for meter report. (0.01A) |
| 1 | Outlet On/Off state Saved Disable | This parameter is set as '1'. The switch will save the current switch state, and after the outlet is powered down and restarted, it will automatically recover to the switch state before power-down. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0 - Disable, 1 - Enable |
| 6 | Meter reporting function Disable | Setting this parameter as '0' will close the timed report function of the outlet, with no influence on the current change reporting function. The interval of reporting electric quantity detection result is controlled by the time set by Parameter 7. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0 - Disable, 1 - Enable |
| 2 | Button Switch Function Disable | Setting this parameter as '0' will make it invalid to operate the outlet switch with the button | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0 - Disable, 1 - Enable |
| 4 | Timer Enable | Setting this parameter as '1' will start the timing function of the outlet, and the length of time is determined by the setting of Parameter 5.This function can only provide the timed closing control function when the outlet is open. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | 0 - Disable, 1 - Enable |
| 5 | Time cycle setting | This parameter sets the time length of closing the outlet at a fixed time, the unit of which is minute, which is only valid when Parameter 4 is set as '1'. | 0 | 2 | 0 | 0 | 150 | From | To | Description |
|---|
1 | 32767 | minute. the time interval for Timer |
| 3 | Outlet LED indication Disable | Setting this parameter as '0' will forbid the LED of the outlet from being on; Parameter '0' is invalid to the LED indication in the power-up state. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 0 - Disable, 1 - Enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | a) Ensure that the outlet is powered up correctly.
b) Set Z-Wave Gateway entered inclusion mode.
c) Press the button on the outlet for three times quickly within 1.5 seconds. Then the LED light will flash for
5 times with an interval of 500ms, which means that the outlet has entered the inclusion mode and it is
waiting for the gateway to complete the configuration. | 2 | Exclusion | a) Ensure that the outlet is powered up correctly.
b) Set Z-Wave Gateway entered exclusion mode.
c) Press the button on the outlet for three times quickly within 1.5 seconds. Then the LED light will flash for
5 times with an interval of 500ms, which means that the outlet has entered the mode of excluding from the
network and it is waiting for the gateway to complete the configuration. | 3 | Learn Mode (adding another controller) | Keep pressing the button of the outlet, and then power up the outlet. The outlet will enter the factory test mode,
in which all the operations of the outlet will not work and the green LED light will keep flashing.
Exit from factory test mode: Power off, and then power the outlet on by un-pressing the button. And then it
will enter the normal working mode. | 5 | Factory Reset | a) Ensure that the outlet is powered up correctly.
b) Press the button and maintain this action for 10 seconds, then release it after the green and red LEDs both
light on. Then the outlet will restore all data to the factory defaults.
Note: This mode can also delete the network information of the outlet and make the device exclude from the Z-Wave network that it has joined.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
