Product Recognition | |
|---|
Certification Number | ZC10-16075140 |
|---|
Name | PIR motion sensor |
|---|

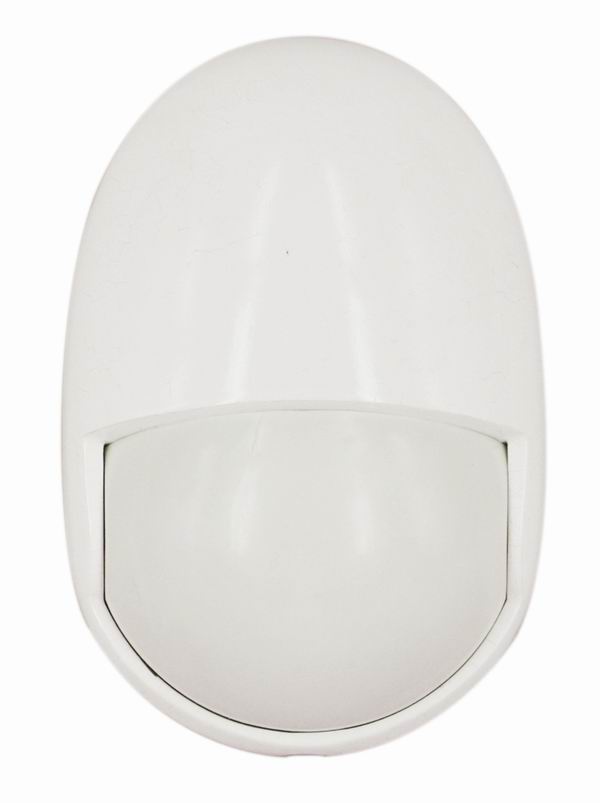

Short Description | ZM-800 surface mount sensor is a battery-powered Z-Wave motion sensor based on PIR technology which is used to indicated human movement detection. |
|---|
Long Description | Sentek’s ZM-800 Z-wave wireless wide-angle passive infrared detector (motion sensor) based on dual-passive infrared detection parts and microprocessor intelligent processing technology, with a unique and highly durable Fresnel lens, can provide accurate human movement detection and anti-pet feature.
Integration with anti-RF interference, high temperature protection and noise suppression technology, ZM-800 has high tolerance with local temperature changes caused by the curtain or sunlight and the detection accuracy is quite high. |
|---|
Brand | Sentek |
|---|
Product Identifier | ZM-800WU |
|---|
OEM Version | HW: 255 FW: 1.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0185 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0009 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Sensors | Value |
|---|
Motion/No Motion (Binary) |
| Switch Type | | Battery Quantity | | Battery Type | | Outdoor Use | | Color | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| IP (Ingress Protection) Rated | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Group is assigned to PIR sensor, Sending ALARM command frame. | 3 | 5 | 0 | Group is assigned to PIR sensor, Sending ALARM command frame. | 1 | 5 | 0 | Group is assigned to TP-Switch2 button and PIR sensor, Sendng ALARM command frame. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LED Enable | 0X00: LED disable 0x01: LED enable | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | LED Enable |
| 2 | Powerdown timeout | The power will be power down as soon as there is no activation and timeout time reached. Reserved for furture. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Reserved for furture. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Make sure ZM-800 is in the range of the Z-Wave controller.
2. Set the Z-Wave controller to the inclusion mode.
3. Quickly pressing TP-Switch2 button 3 times on the ZM-800.
4. The ZM-800 is added to the network . | 2 | Exclusion | 1. Make sure ZM-800 is in the range of the Z-Wave controller.
2. Set the Z-Wave controller to the exclusion mode.
3. Quickly pressing TP-Switch2 button 3 times on the ZM-800.
4. The ZM-800 is deleted from the network . | 5 | Factory Reset | Note: Use the reset procedure only in the event that the network primary controller is missing or otherwise inoperable.
1. Presse the TP-Switch2 button more than 5 seconds.
2. Z-Wave LED is start blinking.
3. Release the TP-Switch2 button right now.
4. Z-Wave LED off, reset is performed. | 4 | Device Wake-Up | Any action of TP-switch button and the PIR sensor will wakeup the product. And by default every 5 minutes the product will wakeup itself. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
0x02 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
