Product Recognition

Certification Number

ZC10-18015965

Name

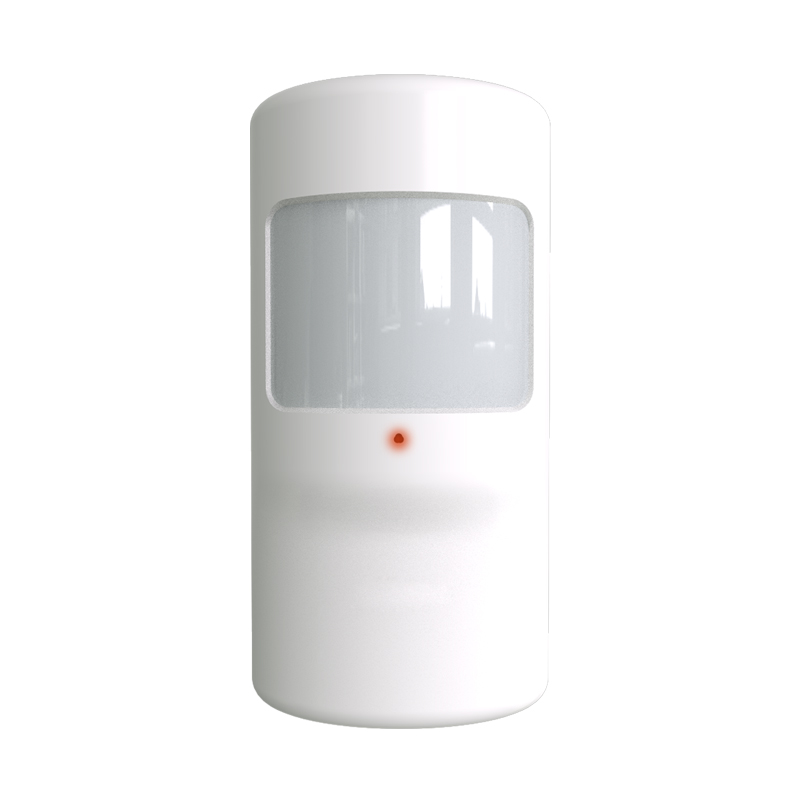

PIR Motion Sensor

Short Description

This sensor has motion detector, ambient temperature and ambient humidity sensor in one which based on Z-Wave™ Plus technology.

Long Description

This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

Brand

Golden Security

Product Identifier

GS-ZWMS08

OEM Version

HW: 17 FW: 1.80

Hardware Platform

ZM5202

Z-Wave Version

6.71.01

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_REPORTING

Manufacturer ID

0x033A

Product Type ID

0x0003

Product ID

0x0100

User Icon

0x0C07

Installer Icon

0x0C07

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Sensors, Security Add-Ons

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Motion Window Time

This parameter is configured the specified time window (4s..16s) in which the amount of pulses will trigger a motion event.

From	To	Description
0	3	Window Time = [Value] * 4s + 4s

Pulse Count

This parameter is configured amount of pulses during the specified time window which trigger a motion event.

From	To	Description
0	3	Amount of pluses = [Value] + 1.

Motion Enable

This parameter is configured the motion detected if enable or not. If ‘1’, Motion detected function is enable. Otherwise is disabled.

From	To	Description
0	0	Motion detected function is disabled
1	1	Motion detected function is enable

Motion Sensitivity

This parameter is configured the sensitivity that motion detect.

From	To	Description
1	100	This value is larger, the sensitivity is lower, and the distance for motion detecting is closer.

Led Indicate Enable

This parameter is configured the Led light on disable or enable.

From	To	Description
0	0	Disable led blink. This configuration is not affecting inclusion, exclusion and reset.
1	1	Enable Led blink when device detects a motion event.

Motion Event Re-trigger Enable

This configuration sets Motion Event Re-trigger is enabled or disabled.

From	To	Description
0	0	Disabled. The motion event will be sent to controller only when the last motion event is cleared.
1	1	Enabled. The time interval for motion event detecting is defined by configuration No. 4.

Binary Sensor Report Enable

This configuration sets binary sensor report is enabled or disabled.

From	To	Description
0	0	Disable sensor binary report when device detects a motion event.
1	1	Enable sensor binary report when device detects a motion event.

Basic Set Level

This parameter is configured the value that BASIC_SET for nodes that associated in Group 2, 3, 4. ‘100’ – BASIC_SET = 0xFF (ON). ‘0’ – BASIC_SET = 0x00 (OFF).

100

From	To	Description
0	99	BASIC_SET = 0x00 ~ 0x63
100	100	BASIC_SET = 0xFF

High Level Temperature Threshold

This parameter is configured the threshold value that high level for temperature. When the current ambient temperature value is larger than this configuration value, this will trigger a BASIC_SET = [Value] (The value is decided by Configuration Parameter 10) to control the devices in group 3. Otherwise, The BASIC_SET = 0x00 will be sent to devices in group 3 if these devices have been set to ‘ON’.

300

From	To	Description
0	500	High Level Value =Value x 0.1℃
