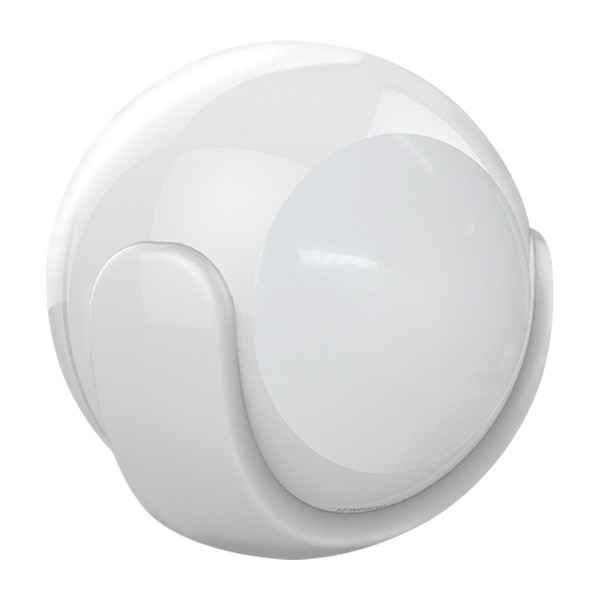

3 | BASIC SET LEVEL | BASIC_SET command will be sent when PIR sensor is triggered. The receiver will take it into consideration; for instance, if a lamp module is receiving the BASIC_SET command of which value is decisive as to how bright of dim level of lamp module shall be. | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 99 | Dim level | 255 | 255 | Previous non zero dim level |
|
4 | PIR DETECTION FUNCTION ENABLED / DISABLED | This parameter can enable or disable the PIR sensor detecting function. Function: Enabled / Disabled PIR function | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | DISABLE | 255 | 255 | ENABLE |
|
5 | AMBIENT ILLUMINATION LUX LEVEL | This parameter can set Lux value which determines when the light sensor is activated. If the ambient illumination level falls bellow this value and a person moves across or within the detection area, PIR sensor will send Z-Wave ON command (i.e. BASIC_set (value = parameter 3) to an associated device and activate it. | 0 | 2 | 0 | 0 | 100 | From | To | Description |
|---|
0 | 1000 | Lux |
|
6 | RE-TRIGGER INTERVAL SETTING | This parameter can be used to adjust the interval of being re-triggered after the PIR sensor has been triggered. This parameter value must be less than Paramater #2. If user sets this parameter to default by Configure CC, the parameter #2 will be set to default value. | 0 | 1 | 0 | 0 | 8 | From | To | Description |
|---|
1 | 8 | Retrigger interval in seconds |
|
7 | LIGHT SENSOR POLLING INTERVAL | This parameter can set the light sensor to measure ambient illumination level interval time. NOTE: This value must be less than Wakeup Interval Time! | 0 | 2 | 0 | 0 | 180 | From | To | Description |
|---|
60 | 3600 | Seconds |
|
8 | 8 | If this parameter is set to “1” and when Lux level is less than the value defined by parameter #5, PIR sensor will send a BASIC_SET command frame (i.e. BASIC_SET (value = parameter 3) to an associated device and activate it. If Lux level is greater than the value defined by parameter #5, PIR sensor will not send BASIC_SET command frame. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | DISABLE | 1 | 1 | ENABLE |
|
9 | AMBIENT ILLUMINATION LUX LEVEL REPORT | This parameter defines by how much Lux level must change in Lux to be reported to the main controller. | 0 | 2 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1000 | lux |
|
