Product Recognition | |
|---|
Certification Number | ZC10-19076690 |
|---|

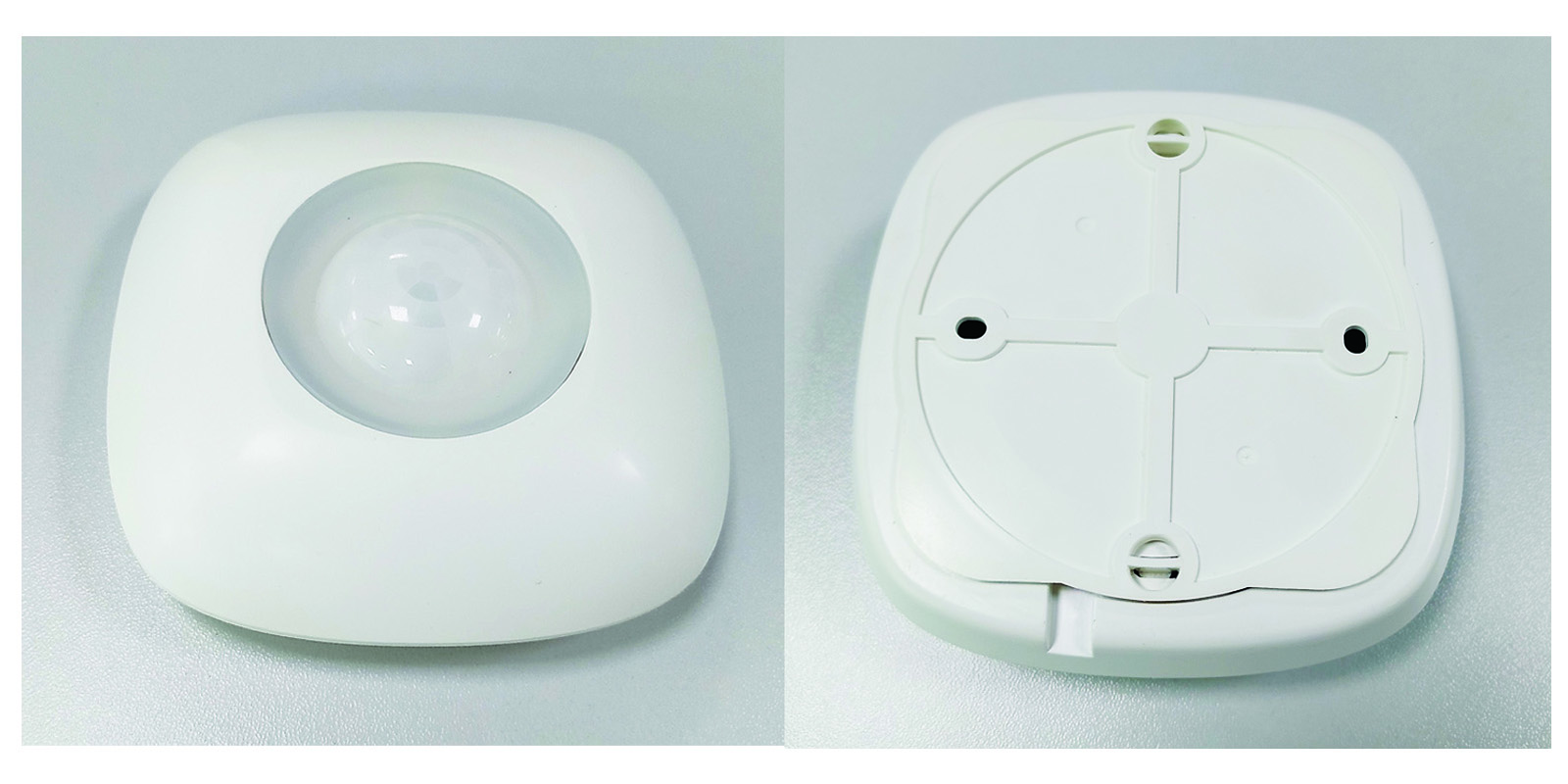

Name | PIR-Z-Wave |
|---|
Short Description | Indoor human passive infrared detector |
|---|
Long Description | The Z-Wave sensor is equipped with Z-Wave500 series main control chip. It is a passive infrared intrusion sensor that adopts Energy Integration Logical Processing, Random Dynamic Time Segmentation & Digital Signal Processing Technologies. With precise columnar Fresnel lens, it can increase its energy receiving efficiency and sensitivity without false alarm. In conjunction with advanced software technology, it will make an accurate judgement between real intruder & interference factors that may cause false alarm. Superior ability to detect & prevent false positives. The pulse number is optional, suitable for kinds of residential constructions, preventing false positive & false negative that other ordinary indoor sensors cannot do. Its performance is far beyond other ordinary PIR alarms. Besides, we use large capacity built-in battery & special power saving solution, battery working life is up to 3 years. |
|---|
Brand | KPL |
|---|
Product Identifier | IX32-Z-Wave |
|---|
OEM Version | HW: 255 FW: 5.36 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0214 |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x0003 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Sensors | Value |
|---|
Motion/No Motion (Binary) |
| Battery Type | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 2 | 0 | When the PIR sensor is triggered, it will send “BASIC SET” command to control these devices in Group2. | 1 | 1 | 0 | It will send “NOTIFICATION_REPORT”to the device in Lifeline group when the PIR sensor is triggered/ recovered , tamper switch is triggered / recovered.
When in low battery status, PIR sensor will send “BATTERY_REPORT” to Lifeline group device periodically.
The PIR sensor will send. “DEVICE_RESET_LOCALLY_NOTIFICATION” to Lifeline group device when the device recovers to factory settings. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Turn Off Light Time Configuration | If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to Group2, and send “Basic Set = 0x00” command to turn-off light after “5 x t” seconds. | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 24 | Decimalism 1-24,To control the time to turn off the lights.The basic step value of time is 5 seconds.If the value is set to 4,start timing when the lights are turned on,turn off the lights after 4*5 seconds =20 seconds |
| 3 | PIR Sensor Alarm Elimination Time Configuration | Min set time is 5s. If the configuration is 1, that means it will eliminate alarm after 5 seconds, if t, will eliminate alarm after “5 x t” seconds. | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 24 | Decimalism 1-24,Used to set to send the eliminate alarm time after PIR alarm.The basic step value of time is 5 seconds,If the value is set to 4,send the eliminate alarm message after alarm 4 * 5 seconds = 20 seconds |
| 1 | Basic Set | If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to control that device when the PIR sensor is alarm. | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
1 | 100 | Decimalism 1-100,Used for quantitative control of other z-wave devices, like adjusting the brightness of lights. | 255 | 255 | Decimalism 255,To control other devices that only receive basic set value = 0xff. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | enter the Inclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will stay in enrollment state until successfully enrolled into network or enrollment time out after 30s. | 4 | Device Wake-Up | a) Manual Wake-up
Quickly press tamper switch once, the PIR sensor will automatically send wake-up information, and there will be 10s after wake-up to receive gateway setting information.
b) Automatic Wake-up
Default time of automatic wake-up is 24 hours, and there will be 10s after wake-up to receive gateway setting information, the max automatic report time = 24 hours, minimum=30min. | 2 | Exclusion | enter the Exclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will be removed after a period of time. | 5 | Factory Reset | Press the anti-tamper switch for 6 times within 2.5 seconds to restore factory settings(Please include a request to use the reset procedure only when the primary controller is missing or inoperable). |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
