Product Recognition | |
|---|
Certification Number | ZC10-17035481 |
|---|
Name | PIR-ZWAVE |
|---|

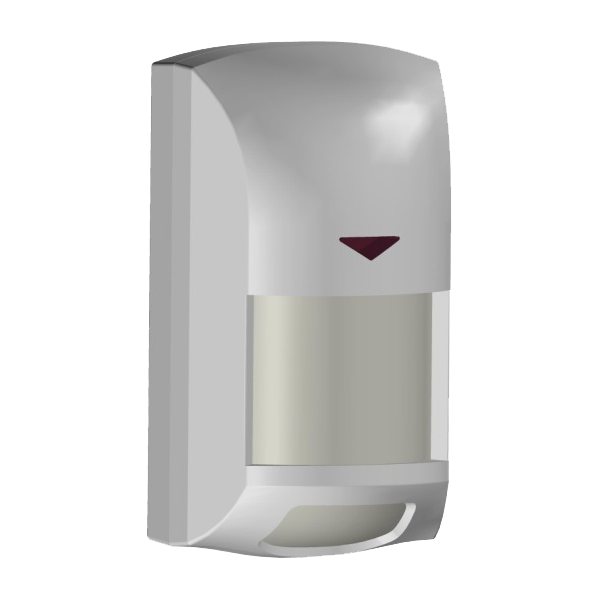

Short Description | IX30-Z-Wave is a kind detector which can detect human motion.when human move in the range of detection, the detector will send alarm information to the gateway |
|---|
Long Description | IX30-Z-Wave is a digital micro-control intrusion detector adopting Energy Accumulation Logical Processing & Random Dynamic Time Segmentation Technology. With precise columnar Fresnel lens, IX30-Z-Wave can increase its energy receiving efficiency and sensitivity without false alarm. In conjunction with advanced software technology, it will make an accurate judgment between real intruder & interference factors that may cause false alarm. Superior ability to detect & prevent false positives. |
|---|
Brand | KPL MOTION SENSOR |
|---|
Product Identifier | IX30-ZWAVE |
|---|
OEM Version | HW: 255 FW: 5.36 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0214 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0002 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | | Battery Quantity | | Battery Type | | Sensors | Value |
|---|
Motion/No Motion (Binary) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | It will send “NOTIFICATION_REPORT”to the device in Lifeline group when the PIR sensor is triggered/recovered , tamper switch is triggered / recovered.
When in low battery status, PIR sensor will send “BATTERY_REPORT” to Lifeline group device periodically.
The PIR sensor will send “DEVICE_RESET_LOCALLY_NOTIFICATION” to Lifeline group device when the device recovers to factory settings. | 2 | 2 | 0 | When the PIR sensor is opened, it will send “BASIC SET” command to control these devices in Group2. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Basic Set Level | If there is any device under Association Group2, the door sensor will send “Basic Set = value” command to control that device when the door sensor is opened. | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
255 | 255 | For ON/OFF Light Only | 1 | 100 | Dimmer Level |
| 2 | Turn Off Light Time | If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to Group2, and send “Basic Set = 0x00” command to turn-off light after “5 x t” seconds | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 24 | Turn Off Light Time |
| 3 | PIR Sensor Alarm Elimination Time Configuration | Min set time is 5s. If the configuration is 1, that means it will eliminate alarm after 5 seconds, if t, will eliminate alarm after “5 x t” seconds. | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 24 | PIR Sensor Alarm Elimination Time Configuration |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Press the anti-tamper switch for 6 times within 2.5 seconds to restore factory settings(Please include a request to use the reset
procedure only when the primary controller is missing or inoperable) | 4 | Device Wake-Up | a) Manual Wake-up Quickly press tamper switch once, the PIR sensor will automatically send wake-up information, and there will be 10s after wake-up to receive gateway setting information.
b) Automatic Wake-up Default time of automatic wake-up is 24 hours, and there will be 10s after wake-up to receive gateway setting information, the max automatic report time = 24 hours, minimum=30min | 2 | Exclusion | enter the Exclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will be removed after a period of time. | 1 | Inclusion | enter the Inclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will stay in enrollment state until successfully enrolled into network or enrollment time out after 30s. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
