Product Recognition
Certification Number	ZC10-15110005
Name	Plug

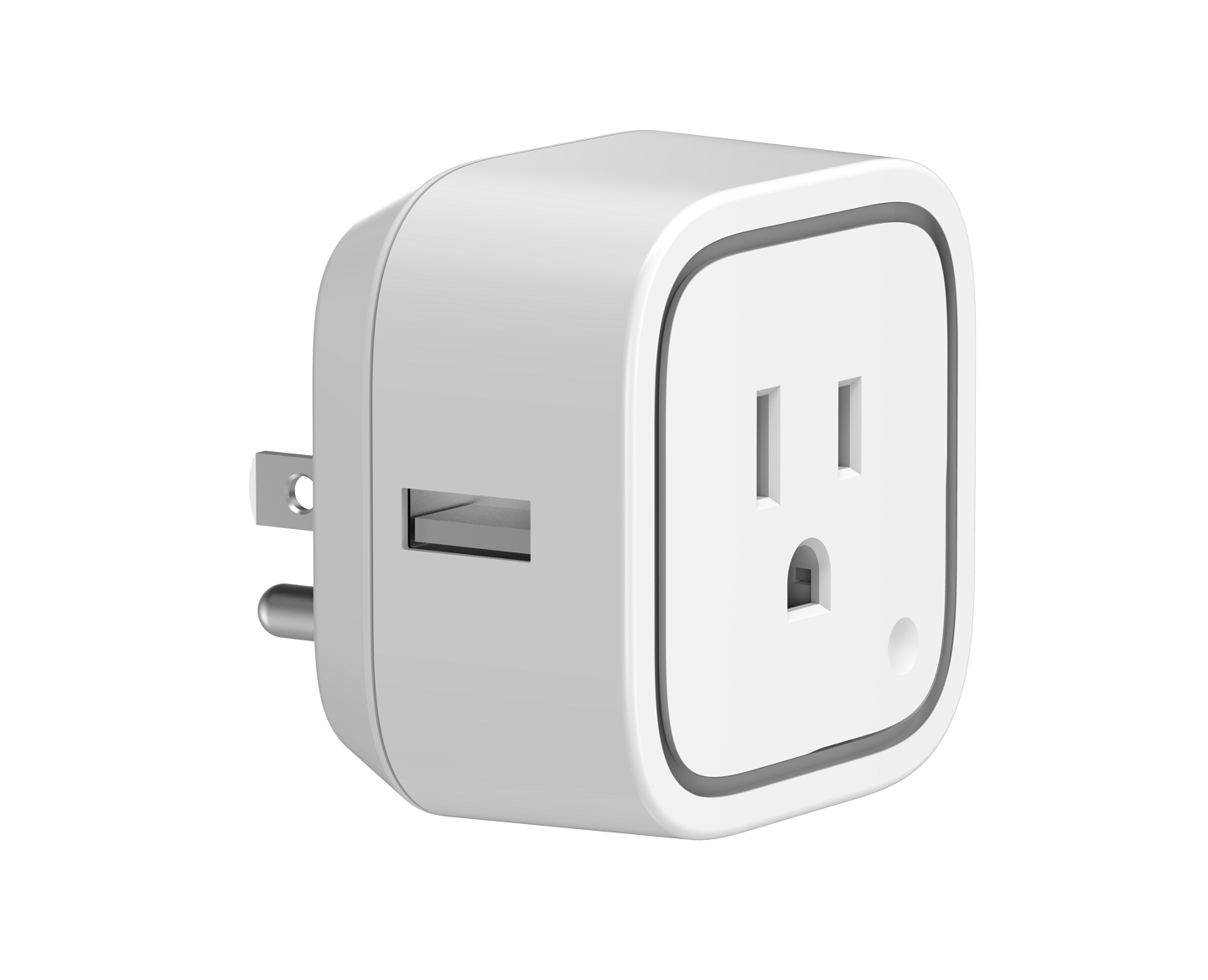

Short Description	Oomi Plug is a plug-in on/off switch module that also provides energy metering.
Long Description	Oomi Plug is a low-cost Z-Wave Switch plug-in module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. Its surface has a Smart RGB LED, which can be used for indicating the output load status or strength of the wireless signal. You can configure its indication colour according to your favour. The Plug is also a security Z-wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Oomi
Product Identifier	FT096-A02
OEM Version	HW: 60 FW: 1.02
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x016A
Product Type ID	0x0103
Product ID	0x0060
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi Plug manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. When the switch is turned on or off using the action button, the switch will send a basic report of its status to the nodes in association group 1. To change what kind of signal is sent to the nodes in group 1, please see the detailed description of configuration parameter 80. 2 5 0 When the product receives a controlling Basic Set CC/Switch Binary Set CC, which if cause the product’s load state to be changed, which will lead to send the Basic Set CC/Switch Binary Set CC to nodes in group 2.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 80 Enable/Disable to send notifications to associated devices to associated devices. This parameter is used to Enable/Disable to send notifications to associated devices (in Group 1) when the state of Smart Switch Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC). 0 1 0 0 0 From To Description 2 2 Send BASIC Report Command 0 0 Send Nothing (Disabled) 1 1 Send HAIL Command 81 Configure the state of LED This parameter is used to configure the LED state when the Smart Switch is in Energy mode/Momentary indicate mode/Night light mode. 0 1 0 0 0 From To Description 2 2 The state of LED will the same with Night light mode state configured by parameter 83. 0 0 The state of LED will follow with the output load state(Energy mode) 1 1 The state of LED will follow with the output load state, but will turn off after 5 seconds if there is no any switch action.(Momentary indicate mode) 83 Configure the LED indication status when it is in Night light mode This parameter is used to configure the LED indication status when the current mode is Night light mode. 0 4 0 0 14524637 From To Description 0 255 Set the indication value of red Led. 256 65535 Set the indication value of green Led. 65536 16777215 Set the indication value of blue Led. 3 Current Overload Protection This parameter is used for the overload protection, which means the load will be disconnected after 2 minutes when the current more than 15.5A. 0 1 0 0 0 From To Description 0 0 Overload Protection Disabled 1 1 Overload Protection is Enabled 112 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 2. (The unit of time is second). 0 4 0 0 600 From To Description 0 268435456 Interval Seconds 252 Enable/Disable Lock Configuration This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable) 0 1 0 0 0 From To Description 0 0 All configuration parameters are configurable. 1 1 All configuration parameters are not configurable (Locked). 254 Device Tag This parameter is used to save the device tag, which will be written/ assigned in factory/ manufacturer. 0 2 0 0 0 From To Description 0 32767 Device Tag 102 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 2. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 102 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 8 From To Description 1 1 Report Instantaneous Voltage 4 4 Report Instantaneous Watts 8 8 Report Accumulated kWh 2 2 Report Instantaneous Current (Amperes) 255 Reset to default factory setting This parameter is used to reset product to default factory setting. (There are just 2 values can be used). 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the product to default factory setting and be excluded from the Z-wave network. 1 1 Resets all configuration parameters to default setting. 90 Enable/Disable the function of parameter 91 and 92. This parameter is used to Enable/Disable the function of parameter 91 and 92 (1=Enabled, 0=Disabled). 0 1 0 0 1 From To Description 0 0 Configuration Parameters 91 and 92 are Disabled 1 1 Configuration Parameters 91 and 92 are Enabled 84 Configure the brightness level for the LED indication This parameter is used to configure the brightness level for the LED indication. Brightness level range is 0 to 100%. 0 1 0 0 50 From To Description 0 100 Brightness level range is 0 to 100%. 92 Induce an automatic report This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in percentage. 0 1 0 0 5 From To Description 0 100 The threshold can be set from 0 to 100 percent. 91 Induce an automatic report This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in wattage. 0 2 0 0 25 From To Description 0 32767 The threshold can be set from 0 to 32767 watt. 101 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 1. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 101 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 4 From To Description 8 8 Report Accumulated kWh 2 2 Report Instantaneous Current (Amperes) 4 4 Report Instantaneous Watts 1 1 Report Instantaneous Voltage 113 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 3. (The unit of time is second). 0 4 0 0 600 From To Description 0 268435456 Interval Seconds 103 To set which report need to be sent. This parameter is used to configure which reports need to be sent in Report Group 3. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 103 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings. 0 4 0 0 0 From To Description 4 4 Report Instantaneous Watts 8 8 Report Accumulated kWh 1 1 Report Instantaneous Voltage 2 2 Report Instantaneous Current (Amperes) 111 Set the interval time of sending report. This parameter is used to set the interval time of sending report in Report Group 1. (The unit of time is second). 0 4 0 0 600 From To Description 0 268435456 Interval Seconds 200 Partner ID This parameter is used to configure the partner ID. (0== Aeon Labs Standard Product, 1~255== others). 0 1 0 0 0 From To Description 0 0 Aeon Labs Standard Product 1 255 Partner ID of Partner Product
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features 1, Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2, Its surface has a Smart RGB LED, which can be used for indicating the output load status. 3, Contain NFC feature.
Supports NWI	Yes
Supports Explorer Frames	Yes
