Product Recognition
Certification Number	ZC10-17045558

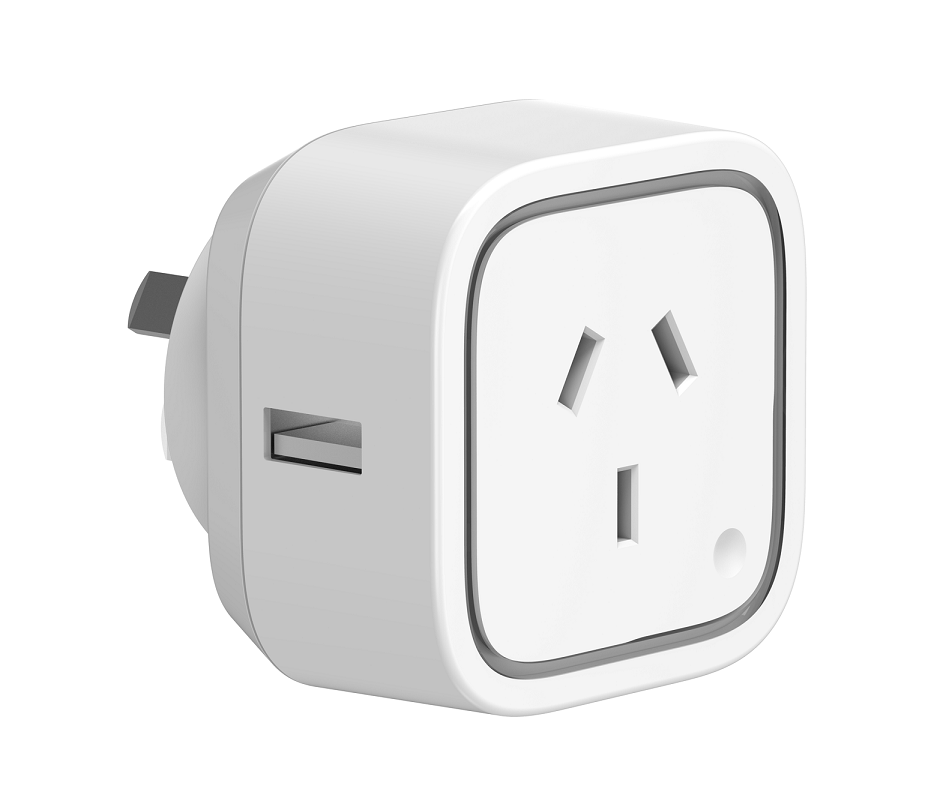

Name	Plug
Short Description	Oomi Plug is a plug-in on/off switch module that also provides energy metering.
Long Description	Oomi Plug is a low-cost Z-Wave Switch plug-in module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. Its surface has a Smart RGB LED, which can be used for indicating the output load status or strength of the wireless signal. You can configure its indication colour according to your favour. The Plug is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Oomi
Product Identifier	FT096-B09
OEM Version	HW: 96 FW: 1.05
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x016A
Product Type ID	0x0203
Product ID	0x0060
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Australia
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi Plug manual.pdf
Features	Feature Values Supported Meter Type Value Electric Energy Electric Load Type Value Incandescent Fluorescent MLV (Magnetic) ELV (Electronic) LED Dimmable LED Inductive (e.g. Motor) Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline. The Hial CC and Basic Report CC (configured by parameter 80) can be sent to the associatd nodes in this group. 2 5 0 Forward the Basic Set, Switch Binary Set to associated nodes in Group 2 when the Plug receives the Basic Set, Switch Binary Set commands from the main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 102 To set which report would be sent in Report group 2 To set which report would be sent in Report group 2 0 4 0 0 0 From To Description 1 1 Send Meter Report of Voltage 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 103 To set which report would be sent in Report group 3 To set which report would be sent in Report group 3 0 4 0 0 0 From To Description 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 1 1 Send Meter Report of Voltage 254 Device Tag Device Tag 0 2 0 0 0 From To Description 0 127 Device Tag 3 Current Overload Protection. Current Overload Protection. Output load will be closed after 2 minutes if the current overruns (US: 16.5A, AU: 10.5A, EU: 14A). 0 1 0 0 1 From To Description 1 1 Enabled 0 0 Disabled 65 To set which report would be sent in Report group 1 To set which report would be sent in Report group 1 0 4 0 0 0 From To Description 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 1 1 Send Meter Report of Voltage 66 To set which report would be sent in Report group 2 To set which report would be sent in Report group 2 0 4 0 0 0 From To Description 1 1 Send Meter Report of Voltage 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 80 To set which notification would be sent to the associated nodes in association group 1 To set which notification would be sent to the associated nodes in association group 1 when the state of output load is changed. 0 1 0 0 0 From To Description 0 0 Nothing 1 1 Hail CC 2 2 Basic Report CC 81 Configure the state of LED Configure the state of LED when it is in Energy mode, Momentary indicate mode or Night light mode. 0 1 0 0 0 From To Description 0 0 Energy mode. The LED will follow the status (on/off). 2 2 Night light mode. The LED will remain the state that is set via the Multilevel Switch Set CC or Color Switch Set CC. 1 1 Momentary indicate mode. When the state of Switch’s load changed, The LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action. 83 Configure the RGB value Configure the RGB value when it is in Night light mode. 0 4 0 0 1774619 From To Description 0 255 Blue color value 256 65535 Green color value 65536 16711680 Red color value 84 Configure the brightness level of RGB LED Configure the brightness level of RGB LED (0%-100%) when it is in Energy Mode/Momentary indicate mode. 0 4 0 0 3289650 From To Description 0 100 The brightness of Red color 256 356 The brightness of Yellow color 65536 65636 The brightness of Green color 90 Enable/disable the parameter 91 and 92 Enable/disable the parameter 91 and 92. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 91 Induce an automatic report The value here represents minimum change in wattage (in terms of wattage) to induce a Meter Report 0 2 0 0 25 From To Description 0 32767 The threshold can be set from 0 to 32767 watt. 92 Induce an automatic report The value here represents minimum change in wattage percent (in terms of percentage) to induce a Meter Report 0 1 0 0 5 From To Description 0 100 The threshold can be set from 0 to 100%. 101 To set which report would be sent in Report group 1 To set which report would be sent in Report group 1 0 4 0 0 0 From To Description 1 1 Send Meter Report of Voltage 2 2 Send Meter Report of Current 4 4 Send Meter Report of Watt 8 8 Send Meter Report of kWh 111 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 3 From To Description 1 2147483647 Interval Seconds 112 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 600 From To Description 1 2147483647 Interval Seconds 113 Set the time interval of sending Report Set the time interval of sending Report 0 4 0 0 600 From To Description 1 2147483647 Interval Seconds 200 Partner ID Partner ID 0 1 0 0 0 From To Description 1 127 Others 0 0 Aeon Labs Standard Product 255 Reset the Plug Reset the Plug to factory default. 0 1 0 0 0 From To Description 1 1 Reset all configuration parameters to default. 1431655765 1431655765 Reset the Plug to factory default 252 Enable/disable Configuration Locked Enable/disable Configuration Locked 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable
Texts	ID Description Value 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 6 Additional Special Features 1, Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2, Its surface has a Smart RGB LED, which can be used for indicating the output load status. 3, Contain NFC feature. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
