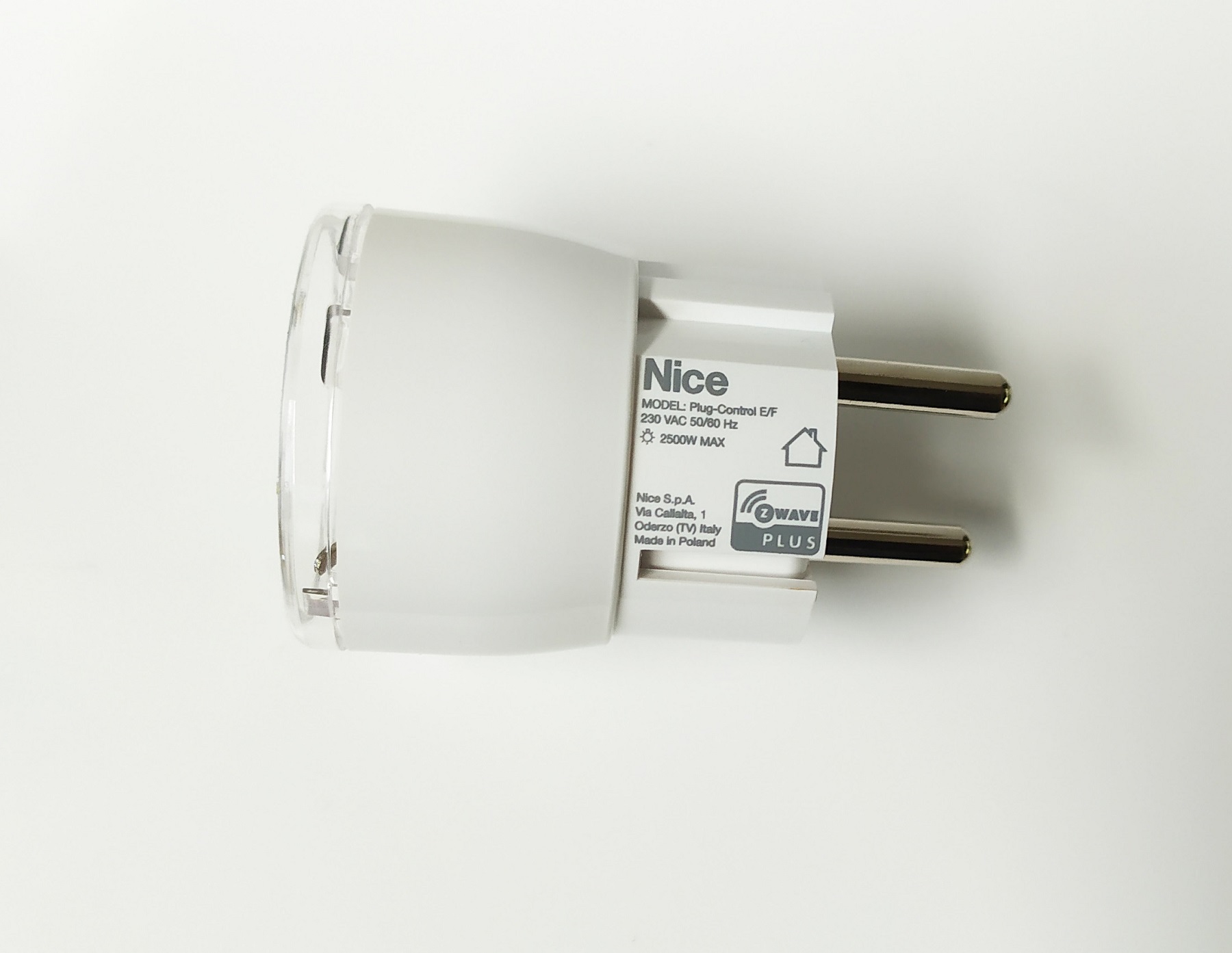

1 | “Always On” mode | In this mode Plug-Control will turn on connected device permanently and will stop reacting to attempts of turning it off (through Z-Wave network or pushing the B-button).
“Always On” function turns Plug-Control into a power and energy meter. Connected device will not be turned off upon receiving an alarm frame from another Z-Wave device (parameter 31 will be ignored).
In “Always on” mode, connected device may be turned off after exceeding the power defined in parameter 3 or in case of detecting current greater than 110% of rated current. In such cases, connected device can be turned on again by pushing the B-button or sending a control frame. By default, overload protection is inactive. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | function inactive | 1 | 1 | function activated |
|
3 | Overload safety switch | This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device will be turned off even if “Always On” function is active (parameter 1).
Controlled device can be turned back on via B-button or sending a control frame. By default this function is inactive.
CAUTION! - The device has a protection that will turn the load off in the case of detecting current greater than 110% of rated current (>12A). It is a safety function and it cannot be turned off. After its activation the load can be turned on back again by pressing the B-button or sending a control frame. This function is independent of overload safety switch set in the parameter no. 3. | 1 | 2 | 0 | 30000 | 0 | From | To | Description |
|---|
0 | 0 | function inactive | 10 | 30000 | (1.0 - 3000.0 W, step 0.1 W) - power threshold |
|
10 | High priority power report | This parameter determines the minimum percentage change in active power that will result in sending power report to the main controller with the highest priority in the Z-Wave network.
By default, Plug-Control immediately sends the power report if the power load changes by 80%. | 1 | 1 | 1 | 100 | 80 | From | To | Description |
|---|
1 | 99 | power change in percent | 100 | 100 | reports are disabled |
|
2 | Remember device status before the power failure | This parameter determines how Plug-Control will react in the event of power supply failure (e.g. power outage or taking out from the electrical outlet).
After the power supply is back on, Plug-Control can be restored to previous state or remain switched off.
This parameter is ignored in „Always On” mode - the device automatically turns ON after plugging it into the socket. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | device remains switched off | 1 | 1 | device restores the state from before the power failure |
|
23 | The response after exceeding defined power values | This parameter defines the way that 3rd association group devices are controlled. Depends on the actual measured power (as parameters 21 and 22 settings). | 1 | 1 | 1 | 6 | 6 | From | To | Description |
|---|
1 | 1 | turn the associated devices ON, once the power drops below DOWN value (parameter 21) | 2 | 2 | turn the associated devices OFF, once the power drops below DOWN value (parameter 21) | 3 | 3 | turn the associated devices ON, once the power rises above UP value (parameter 22) | 4 | 4 | turn the associated devices OFF, once the power rises above UP value (parameter 22) | 5 | 5 | combination of 1 and 4. Turn the associated devices ON, once the power drops below DOWN value (parameter 21). Turn the associated devices OFF, once the power rises above UP value (parameter 22). | 6 | 6 | combination of 2 and 3. Turn the associated devices OFF, once the power drops below DOWN value (parameter 21). Turn the associated devices ON, once the power rises above UP value (parameter 22). |
|
24 | SWITCH ON value - „On/Off” association groups | The value of BASIC SET command frame sent to the devices associated in „On/Off” association groups (2, 3).
„On/Off (Button)” association group - in accordance with parameter 20.
„On/Off (Power)” association group - in accordance with parameter 23. | 1 | 2 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 99 | sent value | 255 | 255 | sent value |
|
31 | Response to alarm frames | This parameter defines how Plug-Control will respond to alarms (device’s status change).
In case of values 1 or 2 Plug-Control is operating normally and LED ring signals an alarm through time defined in parameter 32 or until the alarm is cancelled.
In case of values 5 to 50 Plug-Control does not report status change, power changes, ignores BASIC SET command frames. After time defined in parameter 32 or after the alarm cancellation, connected device is set to the previous state. | 1 | 1 | 0 | 50 | 0 | From | To | Description |
|---|
0 | 0 | no reaction | 1 | 1 | turn connected device on | 2 | 2 | turn connected device off | 5 | 50 | (0.5 - 5.0 s, step 0.1 s) - cyclically change device state with set period |
|
41 | LED ring colour when controlled device is on | When set to 1 or 2, LED ring colour will change depending on active power and parameter 40. Other colours are set permanently and do not depend on power consumption. | 1 | 1 | 0 | 9 | 1 | From | To | Description |
|---|
6 | 6 | blue | 8 | 8 | cyan | 3 | 3 | white | 7 | 7 | yellow | 9 | 9 | magenta | 0 | 0 | illumination turned off completely | 1 | 1 | colour changes continuously depending on active power | 4 | 4 | red | 2 | 2 | colour changes in steps depending on active power | 5 | 5 | green |
|
43 | LED ring colour at the Z-Wave network alarm detection | This parameter defines the illumination colour in case of Z-Wave alarm. | 1 | 1 | 0 | 9 | 2 | From | To | Description |
|---|
0 | 0 | illumination turned off completely | 1 | 1 | no change in colour. LED ring colour is determined by settings of parameters 41 or 42 | 2 | 2 | LED ring flashes red/blue/white | 3 | 3 | white | 4 | 4 | red | 5 | 5 | green | 6 | 6 | blue | 7 | 7 | yellow | 8 | 8 | cyan | 9 | 9 | magenta |
|
42 | LED ring colour when controlled device is off | This parameter defines the illumination colour after turning off. | 1 | 1 | 0 | 9 | 0 | From | To | Description |
|---|
9 | 9 | magenta | 8 | 8 | cyan | 7 | 7 | yellow | 6 | 6 | blue | 5 | 5 | green | 4 | 4 | red | 3 | 3 | white | 0 | 0 | illumination turned off completely | 1 | 1 | LED ring is illuminated with a colour corresponding to the last measured power, before the controlled device was turned off |
|
50 | Associations in Z-Wave network security mode | This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline” group. | 1 | 1 | 0 | 3 | 3 | From | To | Description |
|---|
0 | 0 | none of the groups sent as secure | 1 | 1 | 2nd group sent as secure | 2 | 2 | 3rd group sent as secure | 3 | 3 | 2nd and 3rd group sent as secure |
|
