Product Recognition | |
|---|
Certification Number | ZC10-20036897 |
|---|

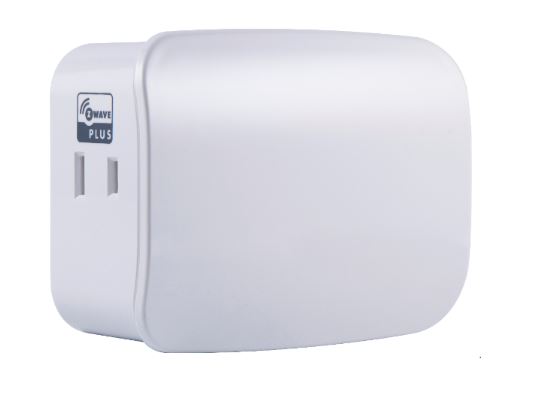

Name | Plug-in Dimmer (Dual Plug Simultaneous Control) |
|---|
Short Description | Transform any home into a smart home with the Honeywell Z-Wave Smart Lighting Control Lamp Module with Dimmer Control |
|---|
Long Description | Transform any home into a smart home with the Honeywell Z-Wave Smart Lighting Control Lamp Module with Dimmer Control. The lamp module enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp you would like to control and one always-on, simultaneous control AC outlet for other electrical appliances. Take control of your home lighting with Honeywell Z-Wave Smart Controls! |
|---|
Brand | Honeywell Home (Resideo) |
|---|
Product Identifier | 39446 / ZW3107 |
|---|
Product Line | Smart Control |
|---|
OEM Version | HW: 255 FW: 5.21 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0039 |
|---|
Product Type ID | 0x5044 |
|---|
Product ID | 0x3033 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Hospitality, All Lighting Devices, Dimming Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Type | Value |
|---|
Push Button Illuminated |
| Switch Load Capacity Watts | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the button | 2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled by single pressing the button | 1 | 5 | 0 | Lifeline | Supports Device Reset Locally and receives unsolicited status updates |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
6 | Dim Rate | 0 (Default) = Dim up/down the light to the specified level quickly by command except value 0 and FF 1 = Dim up/down the light to the specified level slowly by command except value 0 and FF | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF | 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
| 3 | Invert/disable LED | 0 - LED ON/device OFF 1 - (Default) LED ON/device ON 2 - Disable LED | 1 | 1 | 0 | 2 | 1 | From | To | Description |
|---|
0 | 0 | LED ON/device OFF | 1 | 1 | LED ON/device ON | 2 | 2 | Disable LED |
| 7 | Dim Rate Steps | 3 (Default - 3 Steps) 1-99 (Valid values) | 1 | 1 | 1 | 99 | 3 | From | To | Description |
|---|
1 | 99 | Step values |
| 8 | Dim Rate Timing | 1 (Default - 10ms per step) 1-255 (Valid values) | 1 | 2 | 1 | 255 | 1 | From | To | Description |
|---|
1 | 255 | Dim Speed |
| 9 | Dim Rate Steps (Manual Control) | 3 (Default- 3 steps) 1-99 (Valid values) | 1 | 1 | 1 | 99 | 3 | From | To | Description |
|---|
1 | 99 | Step values |
| 10 | Dim Rate Timing (Manual Control) | 1 (Default- 10ms per step) 1-255 (Valid values) | 1 | 2 | 1 | 255 | 1 | From | To | Description |
|---|
1 | 255 | Dim Speed |
| 11 | Dim Rate Steps (All-On/Off) | 3 (Default - 3 steps) 1-99 (Valid values) | 1 | 1 | 1 | 99 | 3 | From | To | Description |
|---|
1 | 99 | Step values |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. Once the controller is ready to remove your device, press and release the manual/program button on the smart dimmer to remove it from the network. | 1 | Classic Inclusion | Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. Once the controller is ready to add your device, press and release the manual/program button on the smart dimmer. Repeat as necessary to add the dimmer to the network. | 5 | Factory Reset Procedure | If plugged in, unplug the dimmer from the receptacle. Press and hold the top button, plug the device in and continue to hold for at least 3 seconds. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
