Product Recognition | |
|---|
Certification Number | ZC10-19076672 |
|---|

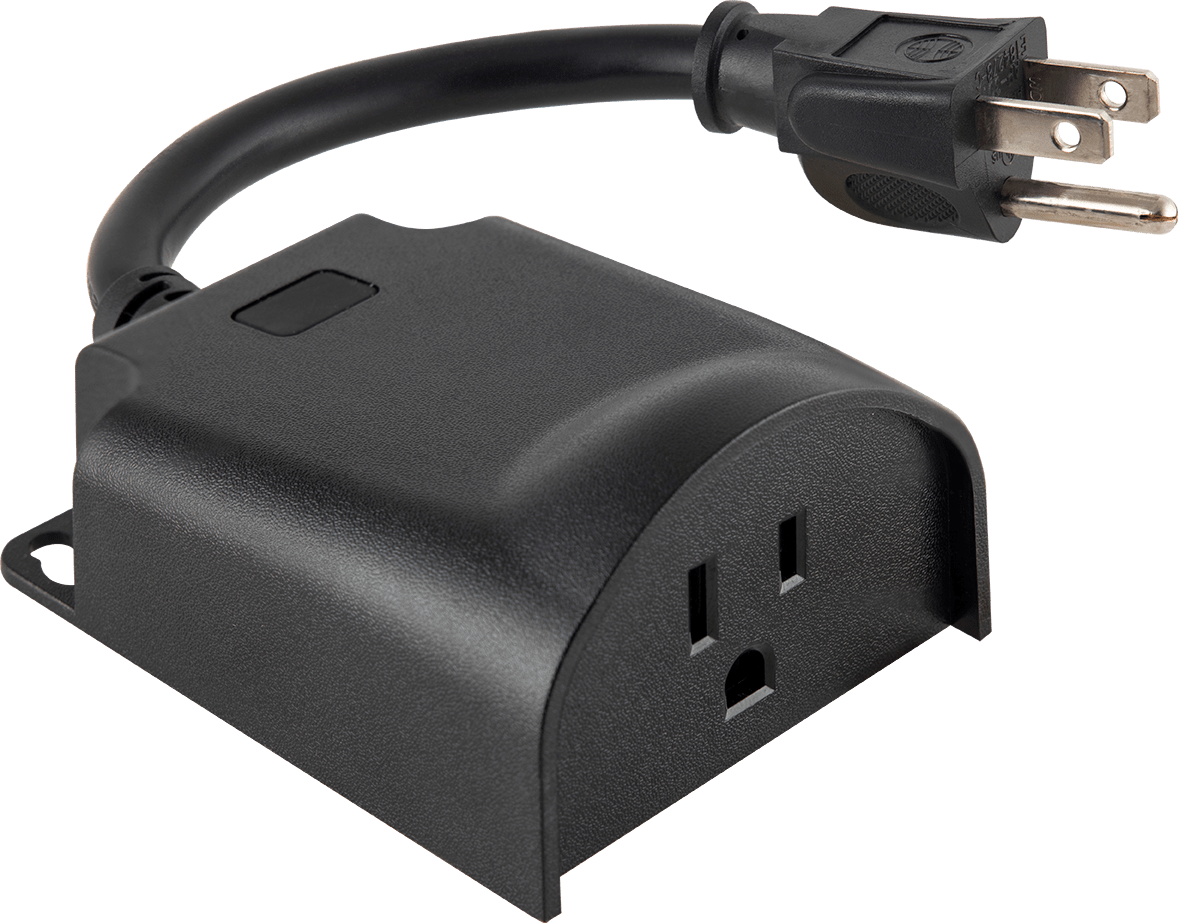

Name | Plug-in Outdoor Smart Switch |
|---|
Short Description | The New Honeywell Plug-in Outdoor Smart Switch is equipped with S2 and Smart Start which allows for easy and secure inclusion. |
|---|
Long Description | Transform any home into a smart home with the Honeywell Z-Wave Outdoor Smart Switch. The lighting control enables wireless control of on/off functions for outdoor applications, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. The discreet black color blends in with any outdoor environment. Perfect for decorative or seasonal lighting, fountains and other outdoor plug-in appliances. Our New Plug-in Outdoor Smart Switch is equipped with S2 and Smart Start which allows for easy and secure inclusion. Take control of your home lighting with Honeywell Z-Wave Smart Lighting Controls! |
|---|
Brand | Honeywell |
|---|
Product Identifier | 39363/ZW4203 |
|---|
OEM Version | HW: 255 FW: 5.52 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0039 |
|---|
Product Type ID | 0x4F50 |
|---|
Product ID | 0x3034 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Outdoor Use | | Switch Load Capacity Current | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED | Inductive (e.g. Motor) |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Association Group 1 supports Lifeline, Binary Switch Report | 2 | 5 | 0 | Association Group 2 supports Basic Set and is controlled with the local load | 3 | 5 | 0 | Association Group 3 supports Basic Set and is controlled by double pressing the button |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Indication Configuration | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | LED ON when device is ON, LED is OFF | 0 | 0 | LED ON when device is OFF, LED is OFF when device is ON | 2 | 2 | LED always OFF | 3 | 3 | LED always ON |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | 1. If plugged in, unplug the device from the receptacle.
2. Press and hold the manual/program button, plug the device in, and continue to hold for at least 3 seconds.
Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | How to cycle through LED options — Press button 10 times quickly.
1. LED is ON when the load is ON (indicates the switch is ON) (default)
2. LED is always OFF
3. LED is always ON (illuminates switch in the dark)
4. LED is ON when the load is off (guide light in the dark) | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press and the manual/program button on the smart switch.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the box or the QR code label on the product. Enter the 5-digit code. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press the manual/program button on the smart switch to remove it from the network. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
