Certification Number | ZC10-20036900 |
|---|

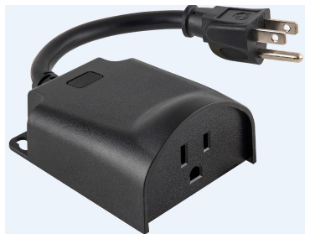

Name | Plug-in Outdoor Smart Switch |
|---|
Short Description | Transform any home into a smart home with the Resideo Z-Wave Plug-in Outdoor Switch. |
|---|
Long Description | Transform any home into a smart home with the Resideo Z-Wave Plug-in Outdoor Switch. The Switch enables wireless control of on/off functions for outdoor applications, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. The weather-resistant housing with a protective outlet cover safeguards the outlet from dirt and debris when not in use. The discreet black color blends in with any outdoor environment. Perfect for decorative or seasonal lighting, fountains and other outdoor plug-in appliances. Take control of your home lighting with Resideo Z-Wave Smart Controls! |
|---|
Brand | Resideo |
|---|
Product Identifier | 39453 / ZW4203 |
|---|
Product Line | Plug-In Outdoor Switch |
|---|
OEM Version | HW: 255 FW: 5.52 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x041B |
|---|
Product Type ID | 0x4F50 |
|---|
Product ID | 0x3035 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0704 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Supports Device Reset Locally and receives unsolicited status updates | 2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled by single pressing the button | 3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Parameter 3 | LED Indication Configuration | 1 | 1 | 0 | 3 | 1 | From | To | Description |
|---|
0 | 0 | LED ON when device is OFF, LED is OFF when device is ON | 1 | 1 | LED ON when device is ON, LED is OFF when device is OFF | 2 | 2 | LED always OFF | 3 | 3 | LED Always ON |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | If prompted by the controller to enter the S2
security code, refer to the QR code/security number on
the side of the box or the QR code label on the product
(see Figure 1). Enter the 5-digit code. | 1 | Classic Inclusion | ADDING YOUR DEVICE TO A Z-WAVE NETWORK
1. Follow the instructions for your Z-Wave certified
controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press
and release the manual/program button on the smart
switch to add it in the network.
3. The controller’s app will indicate if it has discovered the
switch. If prompted by the controller to enter the S2
security code, refer to the QR code/security number on
the side of the box or the QR code label on the product
(see Figure 1). Enter the 5-digit code. | 2 | Classic Exclusion | TO REMOVE AND RESET THE DEVICE
1. Follow the instructions for your Z-Wave certified
controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press
and release the manual/program button on the smart
switch to remove it from the network. | 5 | Factory Reset Procedure | TO RETURN YOUR SWITCH TO FACTORY DEFAULTS
1. If plugged in, unplug the device from the receptacle.
2. Press and hold the manual/program button, plug the
device in and continue to hold for at least 3 seconds.
NOTE: This should only be used in the event your network’s
primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
