Product Recognition
Certification Number	ZC10-16095238
Name	Plug-In Outlet
Short Description	Plug-In Outlet designed for most residential lighting applications to plug-in devices (lamps, small appliances) utilizing Z-Wave Plus technology.

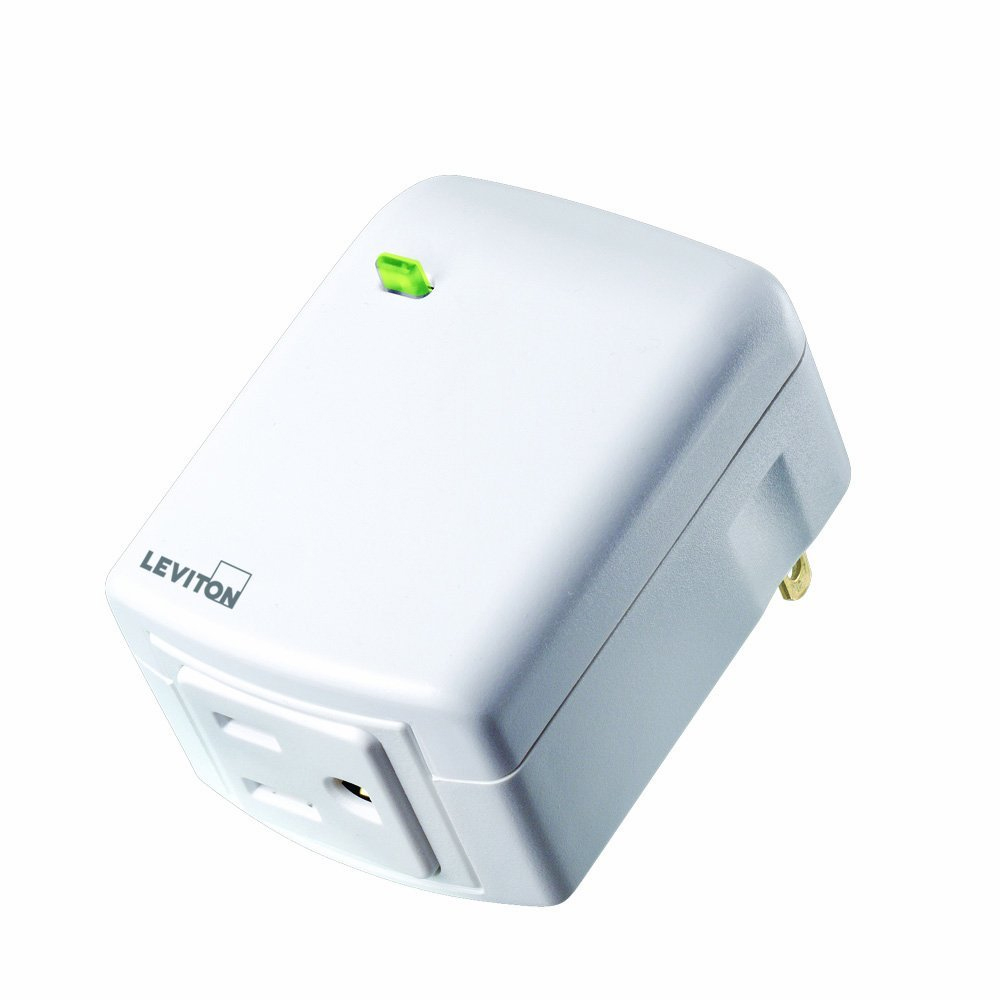

Long Description	The wireless Leviton DZPA1 is a Z-Wave enabled plug-in outlet designed for use for most residential applications to control plug-in lamps, holiday lighting, or small appliances. The DZPA1 Plug-In Outlet is fully compatible with Z-Wave Plus certified controllers. Offers manual control to turn loads on/off. Manufacturer Parameters allow custom configuration via Z-Wave commands. Rated for 5A LED and CFL bulbs, 1800W incandescent bulbs, 1800W Fluorescent, 15A Resistive, and 1/2 HP Motor. These Z-Wave Plus devices support beaming, network wide inclusion, and over the air updates.
Brand	Leviton Manufacturing, Inc.
Product Identifier	DZPA1
OEM Version	HW: 255 FW: 1.23
Hardware Platform	ZM5202
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x001D
Product Type ID	0x3601
Product ID	0x0001
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information V3 0x59 3 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual DI-000-DZPA1-02B-X4.pdf
Features	Feature Values Color Value White Electric Load Type Value Incandescent Fluorescent MLV (Magnetic) LED Inductive (e.g. Motor) Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Watts Value 1800W Z-Wave Scene Type Value Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 • Z-Wave PlusTM Lifeline: A NOTIFICATION frame is sent to the nodes in this association group when a Lifeline event occurs. • All nodes in the association group
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 7 Locator LED Status Locator LED Status • Parameter No: 7, Length: 1 Byte • Valid Values = 0 to 255 (default 255) - 0 = LED Off - 254 (0xFE) = Status Mode - 255 (0xFF) = Locator Mode 0 1 0 0 255 From To Description 0 0 LED Off 254 254 LED Status Mode 255 255 LED Locator Mode
Texts	ID Description Value 2 Exclusion When removing a device from a Z-Wave® network best practice is to use the exclusion command found in the Z-Wave® controller. • Enter Programming Mode by holding the control button for 7 seconds, the Locator LED will turn amber. • Follow directions in the Z-Wave® controller to enter exclusion mode. • Tap the control button one time. The Locator LED will quickly flash green. The Z-Wave® controller will exclude the Decora Smart device. • The Z-Wave® controller will confirm successful exclusion from the network. 1 Inclusion Leviton Decora SmartTM Z-Wave® devices support two methods of inclusion. When using a Z-Wave PlusTM certified controller choose Network Wide Inclusion. Network Wide Inclusion: Network Wide Inclusion allows your device to be added to the network using devices already in the network to assist with communication. Work your way from the closest devices to the controller outward. • Enter Programming Mode by holding the control button for 7 seconds, the Locator LED will blink amber. • Tap the control button one time. The Locator LED will quickly flash green. • The Decora SmartTM Z-Wave® device is ready to learn into the Z-Wave® network. • Follow directions in the Z-Wave® controller to complete the adding process. • Upon successful addition to network the LED will turn off and then blink green 3 times. • If the adding process is not successful the LED will flash red 3 times. Traditional Inclusion: For older controllers Traditional Inclusion is supported. Depending on the age of the controller the controller will need to be 3 to 35 feet from the device when including. • Enter Programming Mode by holding the control button for 7 seconds, the Locator LED will blink amber. • The Decora SmartTM Z-Wave® device is ready to add to the Z-Wave® network. • Follow directions in the Z-Wave® controller to enter learn mode. • Tap the control button one time. The Locator LED will quickly flash green. The Z-Wave® controller will begin to pair with the Decora Smart device. • Upon successful addition to the network the LED will turn off and then blink green 3 times. • If the adding process is not successful the LED will flash red 3 times. 5 Factory Reset When removing a device from a network it is best practice to use the Exclusion process. In situations where a device needs to be returned to factory default follow the following steps. A reset should only be used when a controller is inoperable or missing: • Holding the control button for a total of 14 seconds. - After the first 7 seconds the LED turns amber. - The Locator LED will quickly flash red/amber after 14 seconds. • Release the control button and the device will reset.
Supports NWI	Yes
Supports Explorer Frames	Yes
