Product Recognition
Certification Number	ZC10-15080017

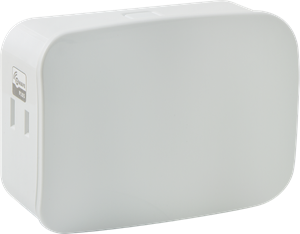

Name	Plug-in Smart Dimmer, Dual Outlet with Simultaneous Control
Short Description	Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Plug-in Smart Dimmer.
Long Description	Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Plug-in Smart Dimmer. The lamp module enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. The Dimmer provides two Z-Wave enabled outlets for the lamps you would like to control. Perfect for two lamps on either side of a couch, table, or bed! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!
Brand	Jasco Products Company
Product Identifier	14280 (ZW3107)
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x5044
Product ID	0x3033
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 14280-1 EnFrSp QSG.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light LED Light 0 1 0 0 0 From To Description 0 0 LED Light on when Z-Wave tunred OFF (Default) 1 1 LED Light on when Z-Wave Turned On 2 2 LED Light always OFF 7 Dim Rate Dim Rate 0 1 0 0 1 From To Description 1 99 number of steps or levels 0 0 8 Dim Rate Adjustments (From Z-Wave Controller) Timing of steps PLEASE NOTE: Values should be entered using their singed values only, which means for example that a configuration value of 1 byte in size must have values in the range -128 to 127. Values specified here above or below the range specified by the values size need to be converted to their 2's compliment value, or if your controller supports it, may be entered using hexadecimal notation. 0 1 0 0 3 From To Description 1 255 Timing of the steps 0 0 9 Dim rate Adjustments (When Manually Controlled) Dim rate adjustments (when manually controlled ) 0 1 0 0 1 From To Description 1 99 number of steps or levels 0 0 11 Dim Rate Adjustments (When Receiving All-On/All-Off Command) 0 1 0 0 1 From To Description 1 99 number of steps of levels 0 0 10 Dim Rate Adjustments (When Manually Contolled) PLEASE NOTE: Values should be entered using their signed values only, which means for example that a configuration value of 1 byte in size must have values in the range -128 to 127. Values specified here above or below the range specified by the value's size need to be converted to their 2's compliment value, or if your controller supports it, may be entered using hexadecimal notation. 0 1 0 0 3 From To Description 1 255 Timing of the steps 0 0
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-wave certified controller to include the device to the Z-wave network. 2. Once the controller is ready to include your smart dimmer, single press and release the manual/program button on the smart dimmer to include it in the network. 2 Exclusion 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart dimmer to exclude it from the network. 5 Factory Reset 1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the dimmer into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
