Product Recognition
Certification Number	ZC10-19126811

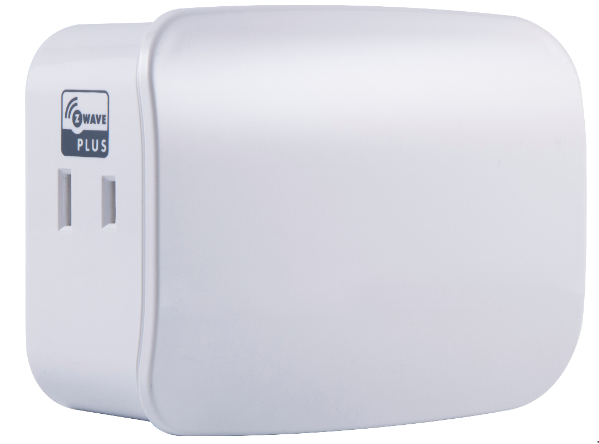

Name	Plug-in Smart Dimmer (Dual Plug With Simultaneous Control)
Short Description	Transform any home into a smart home with the Honeywell Z-Wave Plug-In Dimmer.
Long Description	Transform any home into a smart home with the Honeywell Z-Wave Plug-In Dimmer. The Dimmer enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. The Dimmer provides two Z-Wave enabled outlets for lamps you would like to control. Take control of your home lighting with Honeywell Z-Wave Smart Controls!
Brand	Honeywell
Product Identifier	39446 / ZW3107
Product Line	Honeywell Smart Lighting Controls
OEM Version	HW: 255 FW: 5.21
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0039
Product Type ID	0x5044
Product ID	0x3033
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Hospitality, All Lighting Devices, Dimming Lighting Devices, Lighting Accessories
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Quick Start Guide (Trilingual - Eng/Spa/Fre) 39446-HQSG_v3.pdf
Features	Feature Values Color Value White Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Current Value 300 Switch Type Value Push Button Illuminated
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Description 3 5 0 Double Press Association Group 3 supports Basic Set and is controlled by double pressing the button 2 5 0 Single Press Association Group 2 supports Basic Set and is controlled by single pressing the button 1 5 0 Lifeline Supports Device Reset Locally and receives unsolicited status updates.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned On. This is the default setting and can be changed if your primary controller supports the node configuration function or by a manual method. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 0 0 default 1 1 LED On when light is turned On 2 2 LED always Off 7 Dim Rate Adjustments (From Z-Wave Controller) Number of steps or levels 0 1 0 0 1 From To Description 1 99 Number of steps or levels 8 Dim Rate Adjustments (From Z-Wave Controller) Timing of steps 0 2 0 0 3 From To Description 1 255 Timing of steps 9 Dime Rate Adjustments (When Manually Controlled) Number of steps or levels 0 1 0 0 1 From To Description 1 99 Number of steps or levels 10 Dim Rate Adjustments (When Manually Controlled) Timing of steps 0 2 0 0 3 From To Description 1 255 Timing of steps 11 Dim Rate Adjustments (When Receiving All-On/Off Commands) Number of steps or levels 0 1 0 0 1 From To Description 1 99 Number of steps or levels 6 Dim Rate 0 (Default) = Dim up/down the light to the specified level quickly by command except value 0 and FF 1 = Dim up/down the light to the specified level slowly by command except value 0 and FF Speed of Dim when button is pressed and held for up or down 1 1 0 1 0 From To Description 0 0 Default (Dim Fast) 1 1 Dim Slow
Texts	ID Description Value 5 Factory Reset Procedure To return your dimmer to factory defaults: 1. If plugged in, unplug the dimmer from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the dimmer into a receptacle. Note: This should only be used in the event your networks’ primary controller is missing or otherwise inoperable. 2 Classic Exclusion 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the manual/program button on the smart dimmer to remove it from the network. 1 Classic Inclusion 1. Follow the instructions for your Z-Wave certified controller to add the smart dimmer to the Z-Wave network. 2. Once the controller is ready to add your smart dimmer, single press and release the manual/program button on the smart dimmer to add it in the network. Please reference the controller/gateway’s manual for instructions.
Supports NWI	Yes
Supports Explorer Frames	Yes
