Product Recognition
Certification Number	ZC10-15080014

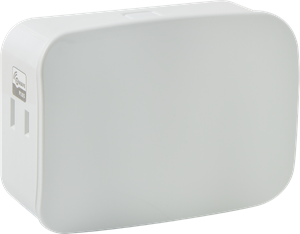

Name	Plug-in Smart Dimmer (Single Plug)
Short Description	Transform any home into a smart home with the GE Z-Wave Smart Lighting Control Plug-in Smart Dimmer.
Long Description	Transform any home into a smart home with the GE Z-Wave Smart Lighting Control Plug-in Smart Dimmer. The lamp module enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp you would like to control and one always-on, standard pass-through AC outlet for other electrical appliances. Take control of your home lighting with GE Z-Wave Smart Lighting Controls!
Brand	GE
Product Identifier	28171 (ZW3105)
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x5044
Product ID	0x3130
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 28171-1 EnFrSp QSG.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Format Size Min Value Max Value Default Value Parameter Values Description 11 Dim Rate Adjustments (When receiving All-On/All-Off command) 0 1 0 0 1 From To Description 1 99 number of steps or levels 3 LED Light 0 1 0 0 0 From To Description 0 0 LED Light on when Z-Wave turned OFF (Default) 1 1 LED Light on when Z-Wave turned On 2 2 LED Light always OFF 7 Dim Rate Adjustments (From Z-Wave Controller) 0 1 0 0 1 From To Description 1 99 number of steps or levels 8 Dim Rate Adjustments (From Z-Wave Controller) 0 1 0 0 3 From To Description 1 255 Timing of the steps Timing of the steps PLEASE NOTE: Values should be entered using their signed values only, which means for example that a configuration value of 1 byte in size must have values in the range -128 to 127. Values specified here above or below the range specified by the value's size need to be converted to their 2's compliment value, or if your controller supports it, may be entered using hexadecimal notation. 9 Dim Rate Adjustments (When manually Controlled) 0 1 0 0 1 From To Description 1 99 number of steps or levels 10 Dim Rate Adjustments (When manually controlled) 0 1 0 0 3 From To Description 1 255 Timing of the steps PLEASE NOTE: Values should be entered using their signed values only, which means for example that a configuration value of 1 byte in size must have values in the range -128 to 127. Values specified here above or below the range specified by the value's size need to be converted to their 2's compliment value, or if your controller supports it, may be entered using hexadecimal notation.
Texts	ID Description Value 2 Exclusion 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network. 1 Inclusion 1. Follow the instructions for your Z-wave certified controller to include the device to the Z-wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart dimmer to include it in the network. 5 Factory Reset 1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
