Product Recognition
Certification Number	ZC10-15030009

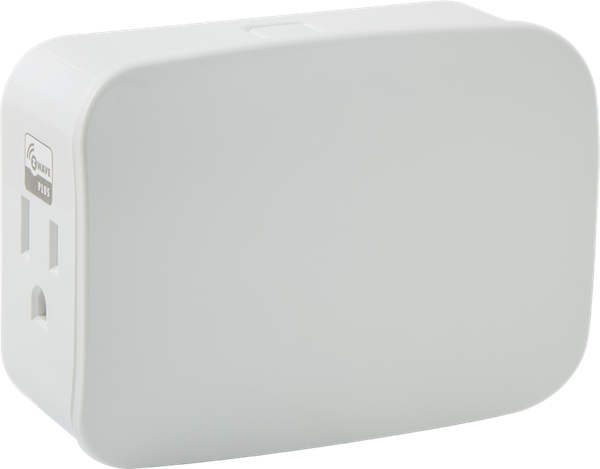

Name	Plug-in Smart Switch (Dual Plug)
Short Description	The Plug-in Smart Switch enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs as well as small appliances.
Long Description	Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Fluorescent Light and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!
Brand	Jasco Products Company
Product Identifier	28172 (ZW4104)
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x5052
Product ID	0x3039
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 28172 QSG-UL.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 1 1 To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. 2 2 To turn the LED OFF at all times, change parameter 3’s value to 2
Texts	ID Description Value 1 Inclusion 1. Follow the instructions for your Z-wave certified controller to include the device to the Z-wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart switch to include it in the network. 3. Once your controller has confirmed that the smart switch has been included, refresh the Z-wave network to optimize performance. 2 Exclusion 1. Follow the instructions for your Z-wave certified controller to exclude a device from the Z-wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network. 5 Factory Reset 1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
