Product Recognition | |
|---|
Certification Number | ZC10-16125337 |
|---|

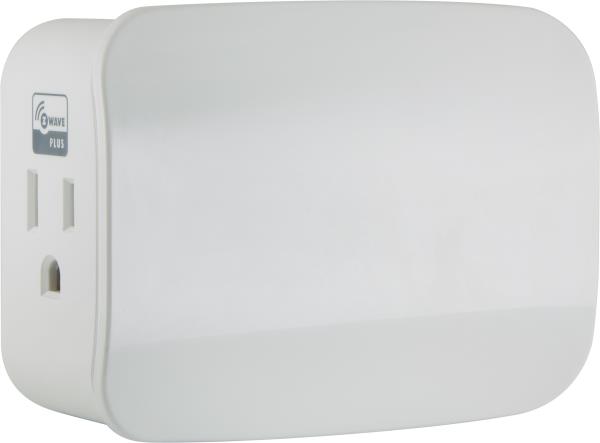

Name | Plug-in Smart Switch, Dual Plug |
|---|
Short Description | Transform any home into a smart home with the GE Z-Wave Smart Lighting Control and Appliance Module. |
|---|
Long Description | Transform any home into a smart home with the GE Z-Wave Smart Lighting Control and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides dual simultaneous Z-Wave enabled outlets for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with GE Z-Wave Smart Lighting Controls! |
|---|
Brand | GE |
|---|
Product Identifier | 14282/ZW4106 |
|---|
OEM Version | HW: 255 FW: 5.20 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x5052 |
|---|
Product ID | 0x3033 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
3 | 5 | 0 | Basic Set and is controlled by double pressing the On or Off button | 1 | 5 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | Basic Set and is controlled with the local load |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Light | When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | On | 2 | 2 | Off |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | To exclude and reset the device:
1. Follow the instructions for your Z-Wave certified controller to
exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press
and release the manual/program button on the smart switch
to exclude it from the network. | 5 | Factory Reset | To return your switch to factory defaults:
1. If plugged in, unplug the Switch from the receptacle.
2. Press and hold the top button for at least 3 seconds while
you plug the switch into a receptacle.
Note: This should only be used in the event your networks’
primary controller is missing or otherwise inoperable. | 1 | Inclusion | Adding your device to a Z-Wave network:
1. Follow the instructions for your Z-Wave certified controller to
include the device to the Z-Wave network.
2. Once the controller is ready to include your smart switch,
single press and release the manual/program button on the
smart switch to include it in the network.
Now you have complete control to turn your lamp ON/OFF
according to groups, scenes, schedules and interactive
automations programmed by your controller.
If your Z-Wave certified controller features Remote Access,
you can now control your lighting from your mobile devices |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
