Product Recognition
Certification Number	ZC10-17045560

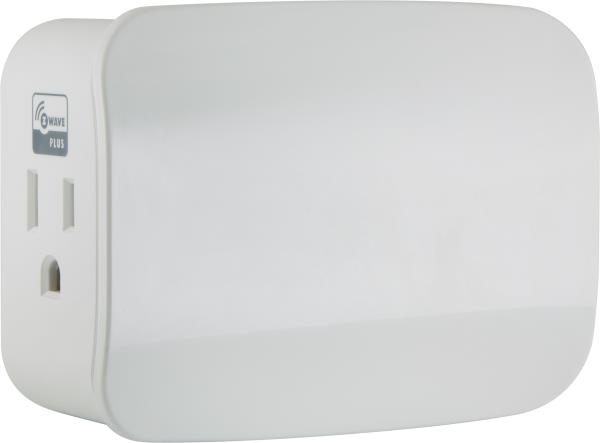

Name	Plug-in Smart Switch, Dual Plug
Short Description	Transform any home into a smart home with the GE Z-Wave Plug-in Smart Switch
Long Description	Transform any home into a smart home with the GE Z-Wave Plug-In Smart Switch The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with GE Z-Wave Smart Lighting Controls!
Brand	GE
Product Identifier	28173/ZW4104
OEM Version	HW: 255 FW: 5.21
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0063
Product Type ID	0x5052
Product ID	0x3130
User Icon	0700
Installer Icon	0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Binder1.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Basic Set and is controlled with the local load 3 5 0 Basic Set and is controlled by double pressing the On or Off button 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED Light When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. 0 1 0 0 0 From To Description 1 1 On 2 2 Off
Texts	ID Description Value 2 Exclusion To exclude and reset the device: 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network. 5 Factory Reset To return your switch to factory defaults: 1. If plugged in, unplug the Switch from the receptacle. 2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle. Note: This should only be used in the event your networks’ primary controller is missing or otherwise inoperable. 1 Inclusion Adding your device to a Z-Wave network: 1. Follow the instructions for your Z-Wave certified controller to include the device to the Z-Wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart switch to include it in the network. Now you have complete control to turn your lamp ON/OFF according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-Wave certified controller features Remote Access, you can now control your lighting from your mobile devices
Supports NWI	Yes
Supports Explorer Frames	Yes
